HAC-T Top-of-slab anchor channel

Rebar channel HAC-T50 106/450 F EDGE #2200886

Configurator
Technical Data
Documents
Features & Applications
Related Products
Cast-in anchor channel with rebars for fixing in concrete suitable for high loads
Cast-in anchor channel with rebars for fixing in concrete suitable for high loads

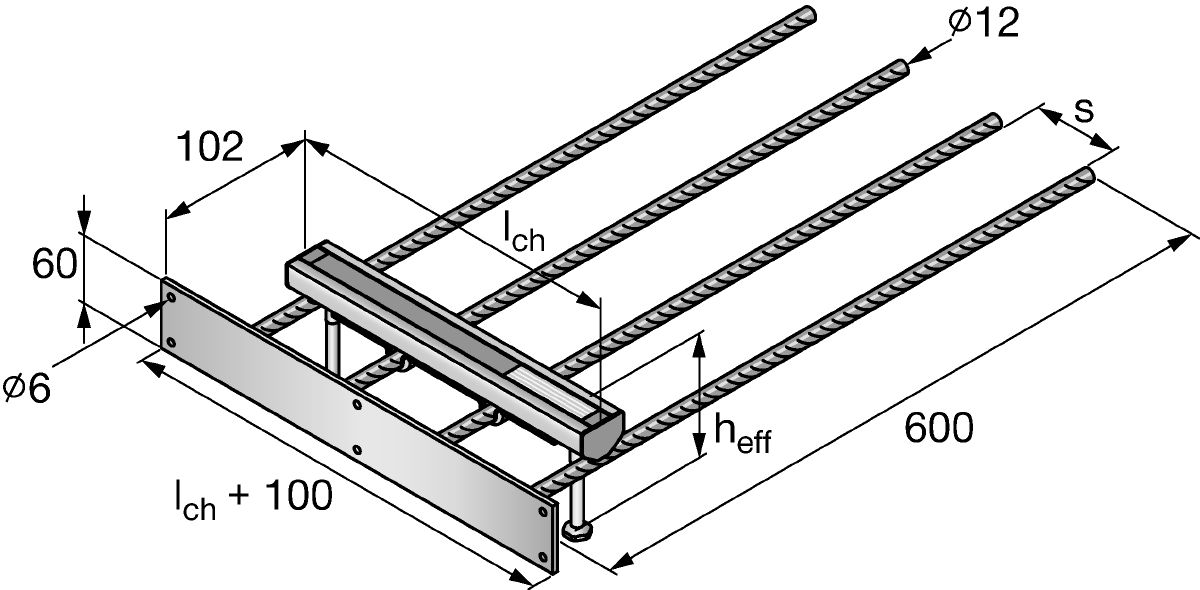

HAC-EDGE w/ dimensions metric

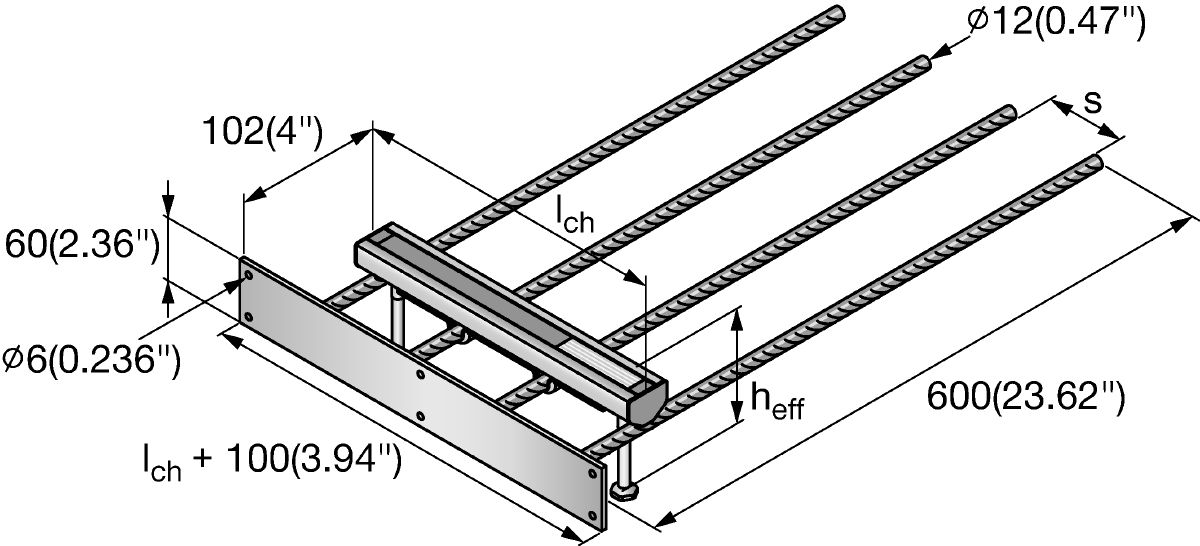

HAC-EDGE w/ dimensions metric & fractional

Serrated cast-in anchor channels in custom sizes and lengths for top-of-slab installations catering to 3D loads

  • Material, corrosion: Carbon steel, HDG (Hot-Dip Galvanized)/Sherardized
  • Length: 17.72 in
  • Standard embedment depth: 4-3/16 in

Customers also searched for serrated, HZA, dynagrip, halfen or rtos.

Choose options

Length
  • 17.72 in
Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please log in or register to see your company prices.

Discounted net
$201.00
$201.00 / 1 Each

Technical Data

Details
Technical illustrations
Material, corrosion
Carbon steel, HDG (Hot-Dip Galvanized)/Sherardized
Length
17.72 in
Standard embedment depth
4-3/16 in
Anchor distance
7.87 in
PROFIS Software
Yes

Documents

Technical information
Documentation
Operating Instruction
pdf Anchor Channel Design Guide, English [ 9.1 MB ]

Features & Applications

Features

  • Confinement of concrete edge allows for designs with higher load requirements
  • Suitable for small edge distances and thin concrete slabs
  • Efficient and intuitive to design with PROFIS Anchor Channel software – a powerful planning tool based on the ESR-3520 compliance evaluation as well as AC232 and ACI 318 requirements
  • Available for various edge distances and pre-assembled for quicker installation
  • Helps overcome many limits of concrete capacity or slab geometry

Applications

  • Fastening to thin concrete slabs
  • For seismic-relevant applications and 3D loads
