SI-AT-22 Adaptive Torque Module

#2291201

Configurator
Technical Data
Documents
Features & Applications
Related Products

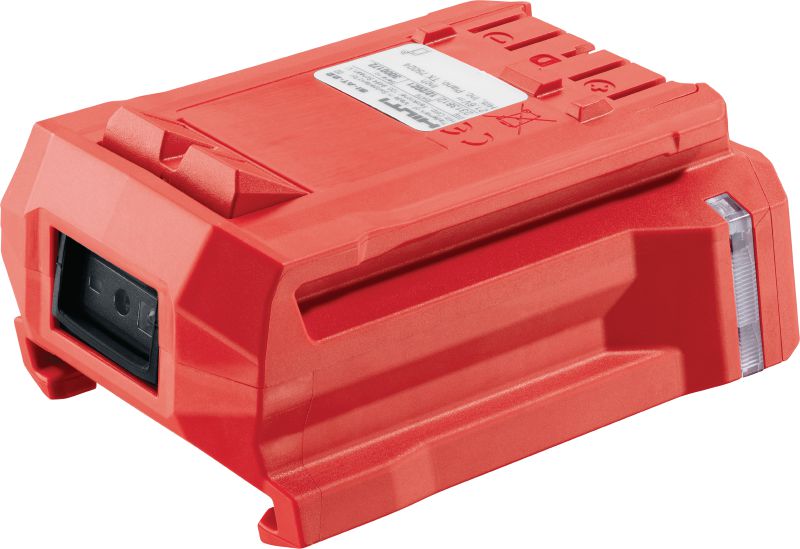

Back view of the Adaptive Torque Module (AT Module)

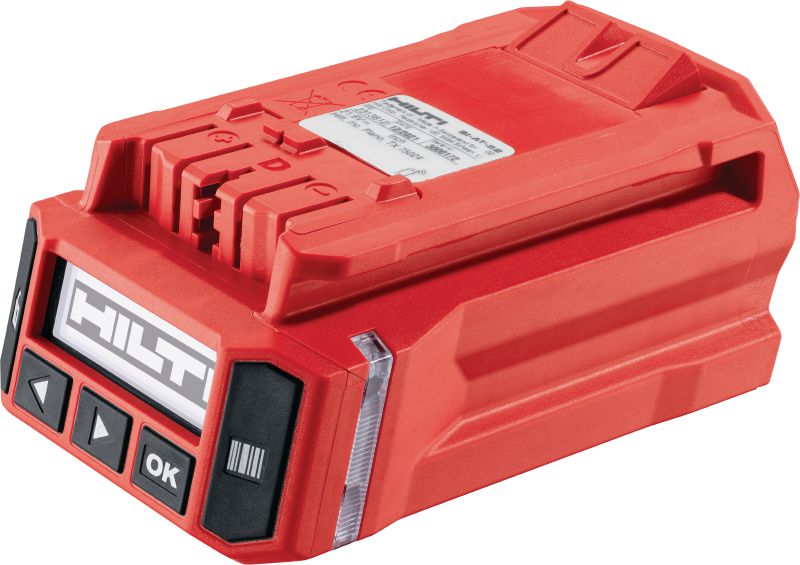

Front view of the Adaptive Torque Module (AT Module)

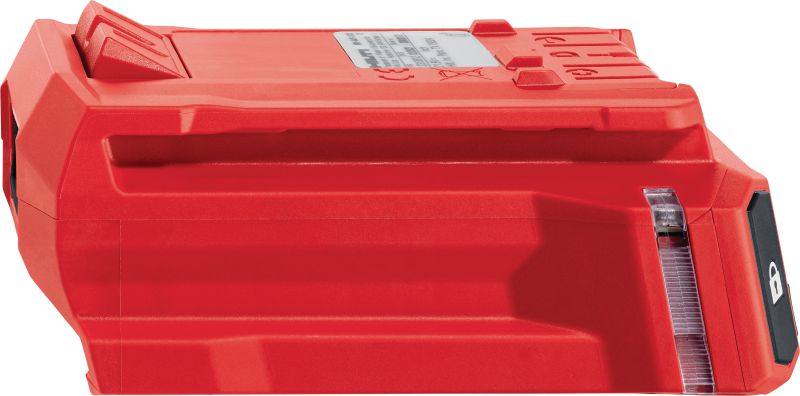

Side view of the Adaptive Torque Module (AT Module)

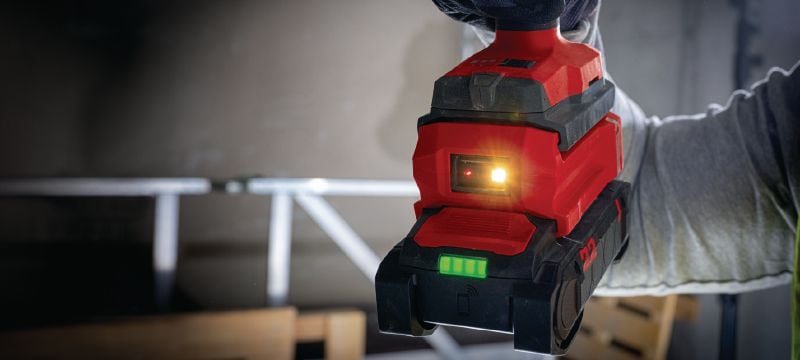

Scanning with the SIW 4AT-22 with a B22-85 battery and the AT module.

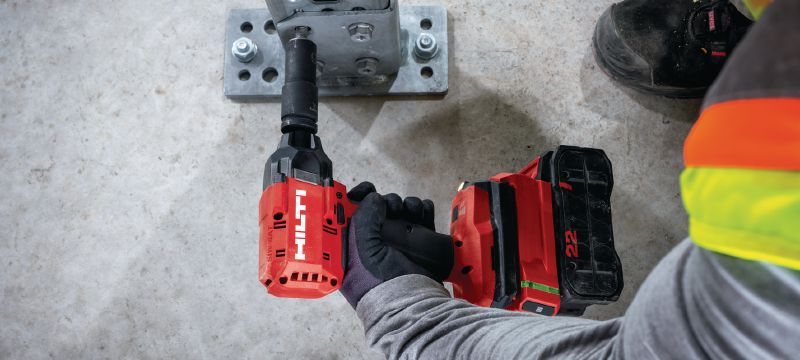

Image showing the SIW 4AT-22 tool body with the B22-85 battery for anchoring application using stud anchors and the AT module SI-AT-22.
Image showing the SIW 4AT-22 tool body with B22-110 battery for installation of the MT system with the AT module SI-AT-22.

Accessory for cordless impact wrenches to automate fastener pre-tensioning in line with approvals (Nuron battery platform)

  • Weight according EPTA-Procedure 01/2003 without battery: 0.5 lb

Customers also searched for adaptive torque system or AT system.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please log in or register to see your company prices.

Discounted net
$456.00
$456.00 / 1 Each

Technical Data

Weight according EPTA-Procedure 01/2003 without battery
0.5 lb

Documents

Technical information
Operating Instruction
pdf Hilti SI-AT-22 (02) Supported consumables, parameter v88 (fractional) [ 531.6 KB ]

Features & Applications

Features

  • Up to 30% faster than a torque wrench – add the Adaptive Torque Module to a compatible to cordless impact wrench to save time on every single fastening, while remaining in line with ETA stud anchor approvals
  • Correct installation made easier – tell the Adaptive Torque Module what fasteners you’re working with by scanning the box using the built-in barcode scanner, then the module delivers the targeted pre-tension every time you pull the trigger
  • Compatible with a wide range of anchors – use Adaptive Torque Modules with wedge anchors, screw anchors, metal bolting, cast-in channels and MEP support structures
  • Ready for inspection – documentation of executed fastenings can be converted to reports using the Adaptive Torque Documentation software for better accountability and back-office efficiency
  • Up to 30% faster than a torque wrench – add the Adaptive Torque Module to a compatible to cordless impact wrench to save time on every single fastening, while remaining in line with approvals

Applications

  • Setting of compatible Hilti screw anchors (e.g. HUS4) in concrete
  • Installing T-bolts in HAC-V and HAC-C cast-in anchor channels for fastening curtain wall facades, elevators and MEP installations
  • Assembling MI, MQ, MIQ and MT modular support systems using compatible connectors
  • Setting of compatible Hilti wedge anchors (e.g. KB1, KB3, KB-TZ2, and HSL4) up to 3/4” in concrete
