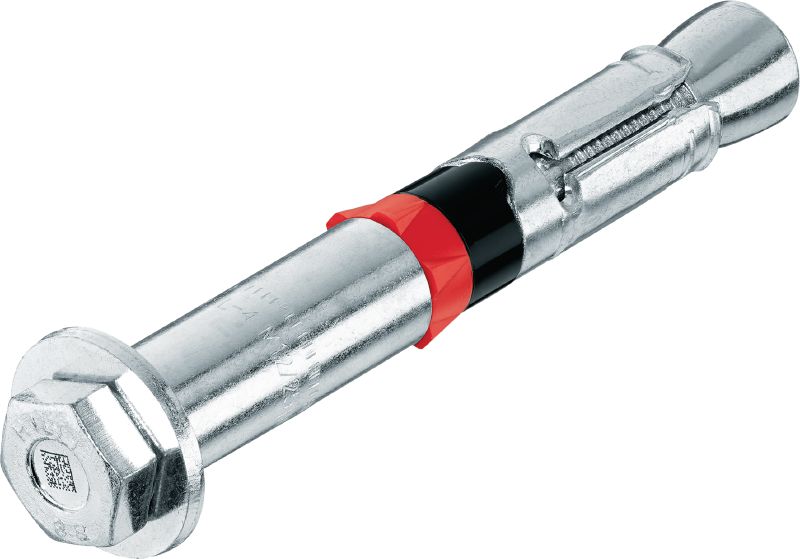

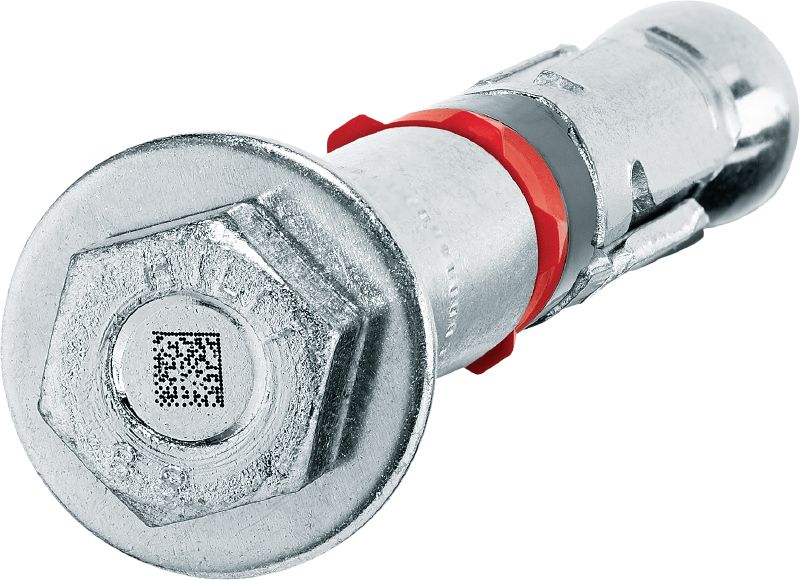

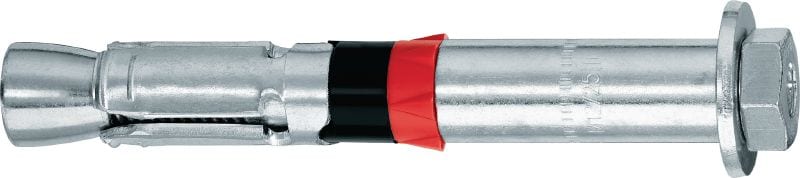

HSL4 Heavy-duty wedge anchor
Ultimate-performance heavy-duty wedge anchor with approvals for safety-relevant applications in concrete (carbon steel, hex head)
- Material, corrosion: Carbon steel, zinc-plated, Zinc plated (min. 5 microns)
- Head configuration: Hex head
- Approvals / Test reports: ICC-ES report (concrete), LABC, Seismic
Customers also searched for HSL4, HSL-4 or HSL.
Technical Data
Material, corrosion
Carbon steel, zinc-plated, Zinc plated (min. 5 microns)
Head configuration
Hex head
Approvals / Test reports
ICC-ES report (concrete), LABC, Seismic
Base materials
Concrete (cracked), Concrete (uncracked)
Installation tools
SIW 6AT-A22 Cordless impact wrench
PROFIS Software
Yes
Environmental conditions
Dry indoor
Documents
Features & Applications
Features
- High tension and shear load capacities
- Force-controlled expansion which allows follow-up expansion
- ETA Option 1 for cracked and uncracked concrete
- ICC-ES/AC 193 for cracked and uncracked concrete and seismic
- Suitable for dynamic loading including fatigue, seismic and shock
Applications
- Heavy-duty fastenings in high safety-relevant or dynamic applications, including applications in nuclear power plants

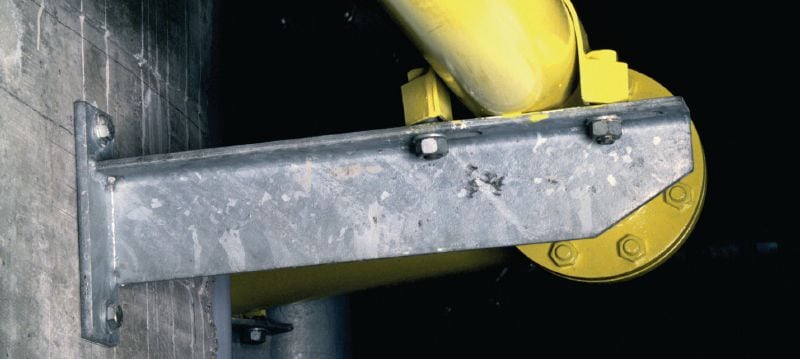

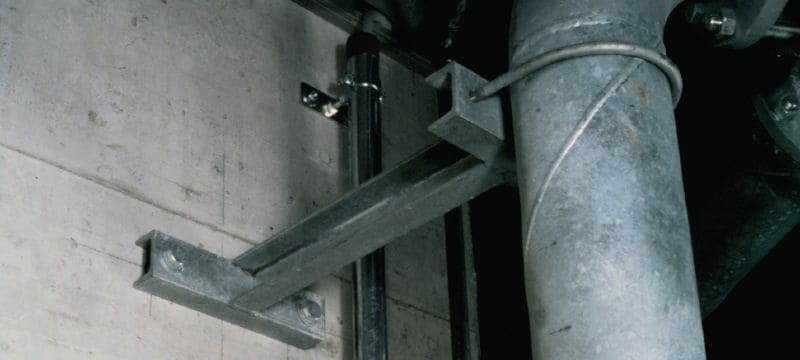

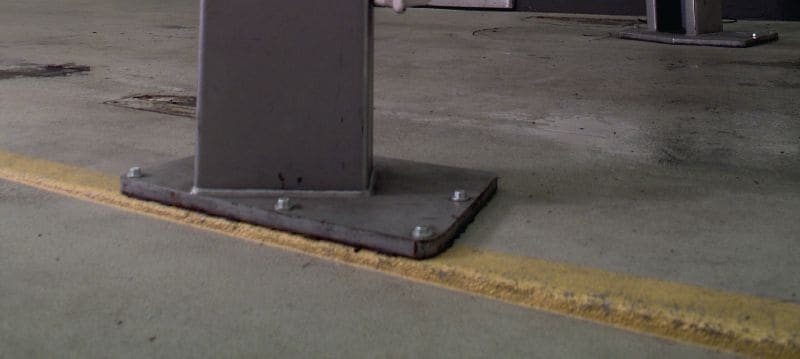

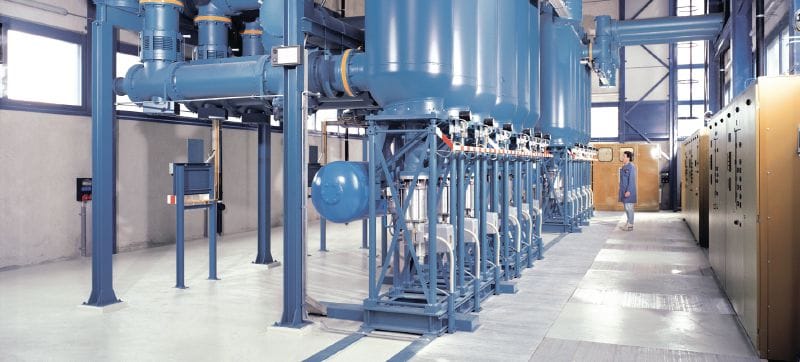

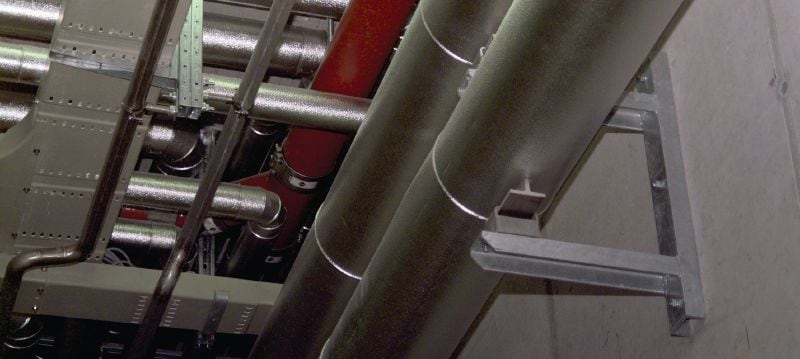

- Anchoring where extensive approval back-up or technical back-up is required, e.g. machines, heavy equipment, steel columns, heavy pipe supports, pumps, beam supports, medical equipment, cantilevers, cranes, car hoists, etc.
For approval or certificate information, please see individual items.
