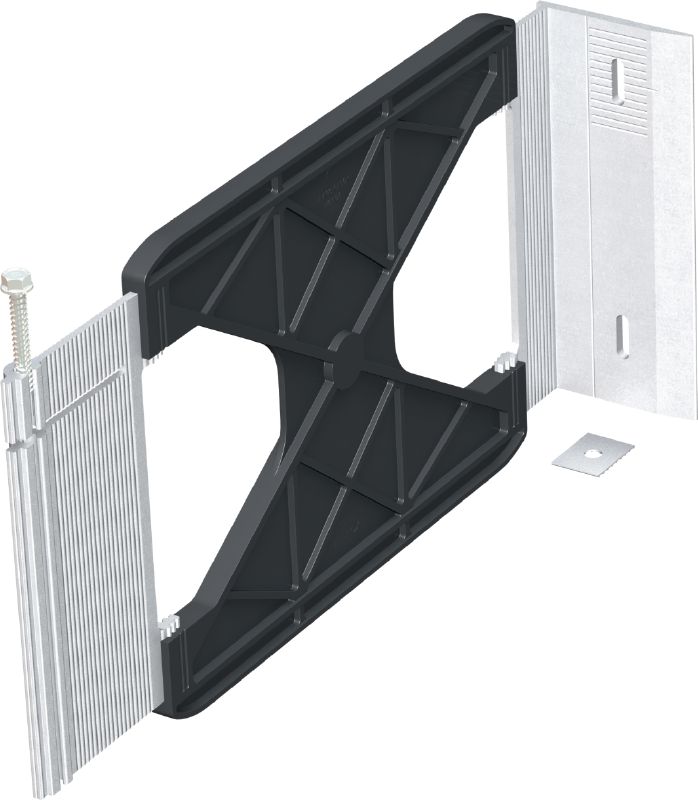

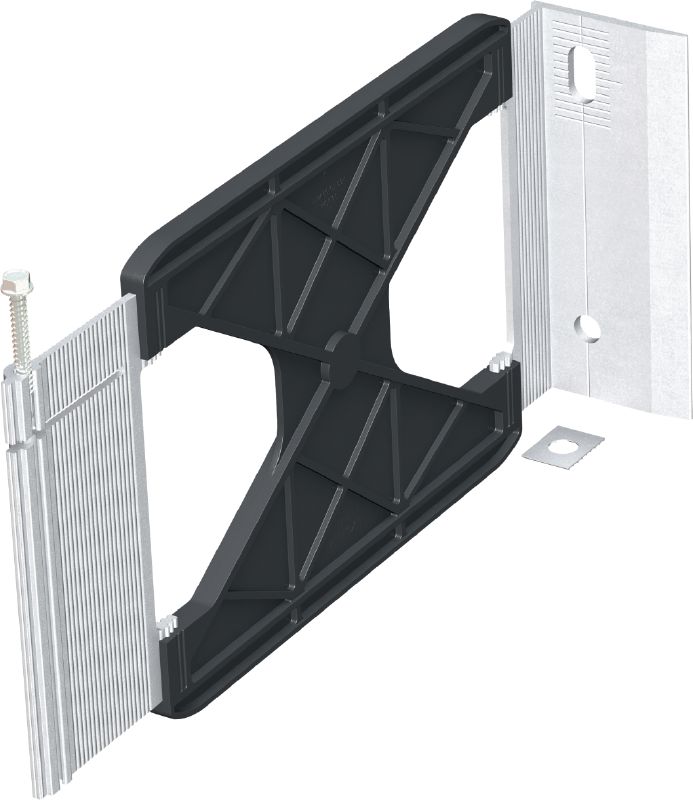

MFT-FOX HT L Bracket
Horizontal fiberglass bracket - Large
- Material composition: Polyamide, EN AW-6063 T66
- Width: 62 mm
- Height: 150 mm
Customers also searched for Rainscreen Bracket or Cladding.
Choose options
Length
- 220 mm
- 240 mm
- 260 mm
- 280 mm
- 300 mm
- 320 mm
Hole diameter - D
- 5 mm
- 6.5 mm
- 11 mm
Pack size
- 20 pc
- 25 pc
Quantity
Packs
Total Pieces
1
Discounted net
From $648.00
Technical Data
Material composition
Polyamide, EN AW-6063 T66
Width
62 mm
Height
150 mm
Documents
Features & Applications
Features
- Thermal bridge-free solution
- Glass-fiber reinforced plastic and aluminium compound for low thermal conductivity and high load performance
- Labor saving - Pre-assembled A4 screw for easy fastening of support profiles
- Up to 40 mm adjustability of the support profile
- Multiple fastening options – can be installed using suitable anchors, screws or direct fastening (DX)
Applications
- Suitable for low-energy buildings
- Suitable for low-energy buildings, Passivhaus and Minergie standard

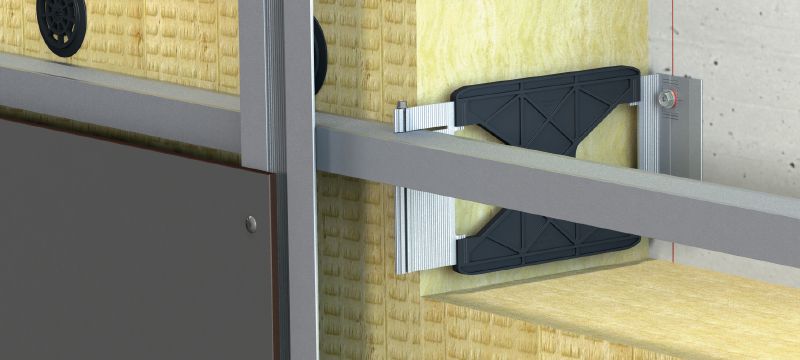

- One-layer system with horizontally mounted support profiles
- Two-layer system with horizontally and vertically mounted substructure profiles
For approval or certificate information, please see individual items.
