MFT-HP Hanger rail 22.5

Profile MFT-HP 22,5x63,5 6m #2301548

Configurator
Technical Data
Documents
Features & Applications
Related Products
Profile MFT-HP 22,5x63,5
Profile MFT-HP 22,5x63,5 pf
Profile MFT-HP 22,5x63,5 pf
Profile MFT-HP 22,5x63,5 pf
Profile MFT-HP 22,5x63,5 pf
Profile MFT-HP 22,5x63,5 pf
Profile MFT-HP 22,5x63,5
Profile MFT-HP 22,5x63,5 pf

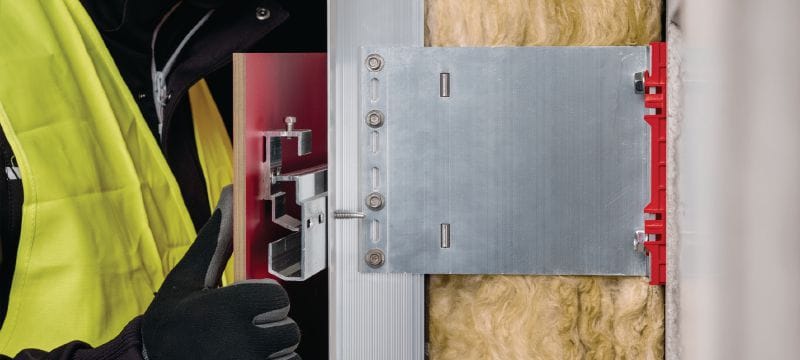

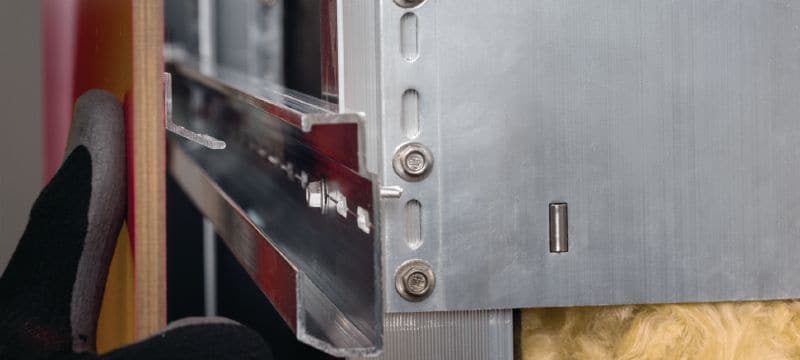

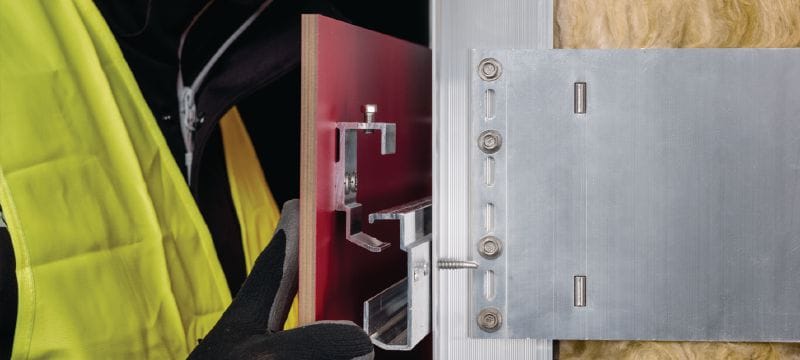

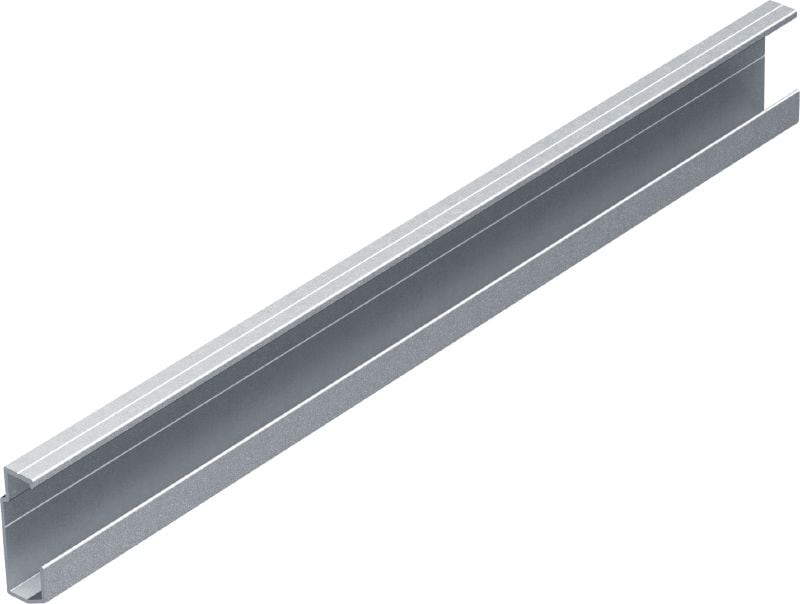

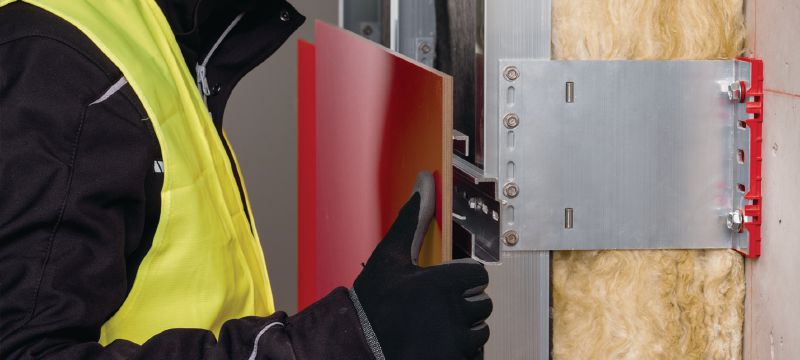

Hanger rail for the concealed attachment of façade panels using hangers

  • Height: 63.5 mm
  • Width: 22.5 mm
  • Length: 6000 mm

Choose options

Height
  • 63.5 mm
Width
  • 22.5 mm
Pack size
  • 6 m
 Product options
Quantity
Packs
Total Pieces
6
You cannot see your company prices

Please log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Details
Technical illustrations
Height
63.5 mm
Width
22.5 mm
Length
6000 mm
Material composition
Aluminium EN AW-6063 T66

Documents

pdf  EPD_MFT Alu facade profiles, English [ 784.5 KB ]

Features & Applications

Features

  • Faster, simpler cladding installation – Improved hanger rail design for hassle-free panel installation
  • Single panel removal – these redesigned hangers are not only easier to install, but also allow you to remove single cladding panels (when fastened with fixing pins)
  • All-weather installation – unlike adhesives, you can work with this system in virtually all weather conditions
  • Engineering support available – contact your local Hilti team for project-specific advice on optimizing the ventilated façade substructure
  • Total system solution – from Hilti you get optimized tools, consumables and services for every step of ventilated façade installation

Applications

  • Concealed fastening of façade cladding using mechanical fasteners for rear fixing
