HIT-Z Anchor rod
Ultimate-performance anchor rod for injectable hybrid anchors (carbon steel)
- Material, corrosion: Carbon steel, zinc-plated
- Base materials: Concrete (cracked), Concrete (uncracked)
- PROFIS Software: Yes
Customers also searched for zero cleaning, all thread, torque controlled anchor, threaded or epoxy anchor.
Choose options
Anchor size - D
- 3/8 in
- 1/2 in
- 5/8 in
- 3/4 in
Anchor length - L
- 3-3/8 in
- 4-3/8 in
- 4-1/2 in
- 5-1/8 in
- 6 in
- 6-3/8 in
- 6-1/2 in
- 7-3/4 in
- 8 in
- 8-1/2 in
- 9-1/2 in
- 9-3/4 in
Material composition
- Steel, zinc-plated (min. 5 µm)
Head configuration
- Externally threaded
Pack size
- 1 pc
- 6 pc
- 12 pc
- 20 pc
- 40 pc
Quantity
Packs
Total Pieces
1
Discounted net
From $141.00
Technical Data
Material, corrosion
Carbon steel, zinc-plated
Base materials
Concrete (cracked), Concrete (uncracked)
PROFIS Software
Yes
Approvals / Test reports
ICC-ES report (concrete)
Cleaning procedures
Non Cleaning
Type of fixing
Pre-fastening, Through-fastening
Documents
Features & Applications
Features
- Very high loads in cracked concrete and seismic applications according to ICC-ES and ETA C2 approvals
- No hole cleaning required (above 5°C / 41°F) with HIT-HY 200
- Increased productivity and safety by eliminating the hole cleaning process
- Variable depth of embedment for maximum design flexibility
- Head marking for easy verification of rod length, even after installation
Applications
- Fastenings in cracked and uncracked concrete in combination with HIT-HY 200
- Seismic anchoring applications
- Anchoring structural steel connections
For approval or certificate information, please see individual items.
Related Products
Ultimate-performance anchor rod for injectable hybrid anchors (316 stainless steel)
Ultimate SDS Plus (TE-C) hollow drill bit for virtually dust-free hammer drilling in concrete
Structural engineering anchor design software with codes and approvals, Component Based Finite Element Method calculations, and a variety of fastening methods

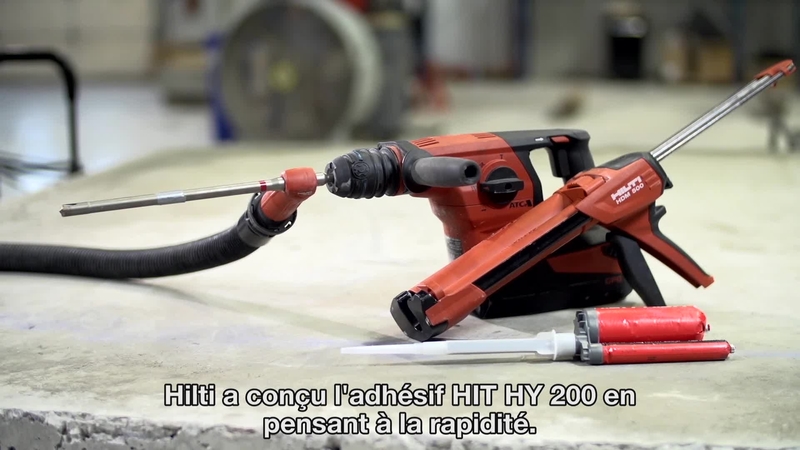

Product Videos
