HAS-E-55 Anchor rod
High-performance anchor rod for injectable adhesive capsules (carbon steel, ASTM F1554 grade 55, zinc-plated)
- Material, corrosion: Carbon steel, zinc-plated
- Base materials: Concrete (cracked), Concrete (uncracked), Masonry (hollow), Masonry (solid)
- PROFIS Software: Yes
Customers also searched for threaded rod, all thread, grade 55 or epoxy anchor.
Technical Data
Material, corrosion
Carbon steel, zinc-plated
Base materials
Concrete (cracked), Concrete (uncracked), Masonry (hollow), Masonry (solid)
PROFIS Software
Yes
Approvals / Test reports
ICC-ES report (concrete), ICC-ES report (masonry)
Cleaning procedures
Automatic Cleaning (SafeSet Hollow Drill Bit), Compressed-Air Cleaning, Manual Cleaning
Type of fixing
Pre-fastening
Documents
Features & Applications
Features
- Chisel-tip anchor rod for use with HVU adhesive capsules and for easy insertion when using with Hilti HIT injectable adhesive mortar

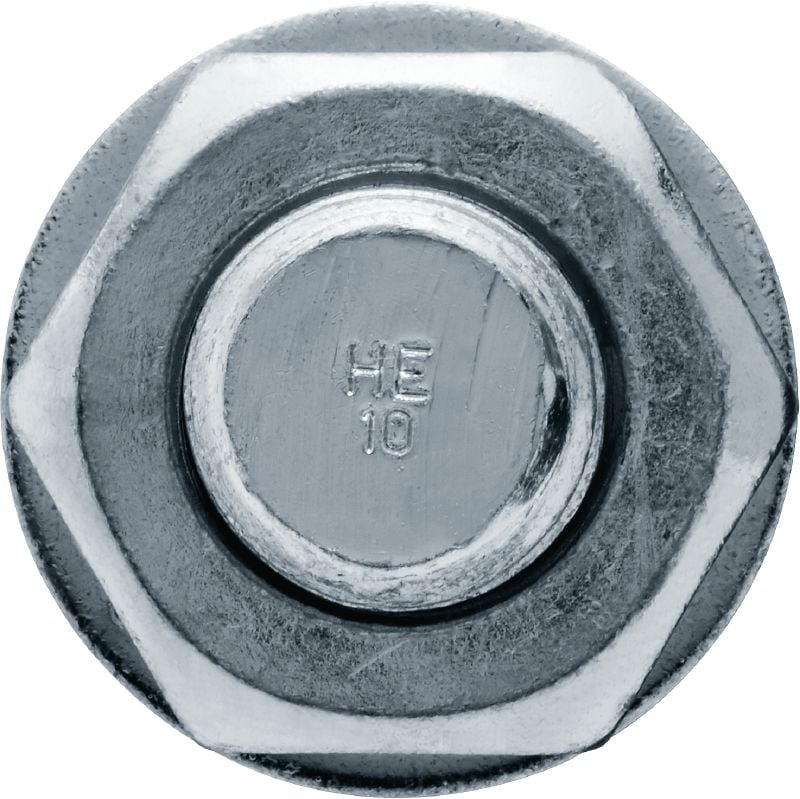

- Head marking for easy verification of steel grade and rod length, even after installation
- Free of oil and other contamination for the highest performance with Hilti HIT injectable adhesive mortar systems
- Custom lengths and additional diameters up to 2" available upon request
- Large range of anchor rod diameters (3/8" - 1-1/4")
Applications
- Suitable for ductile fastening points with predictable steel failure in seismic-relevant applications
- Suitable for fastenings in concrete and other base materials in combination with the relevant Hilti HIT injectable adhesive mortars
- Suitable for fastenings in concrete with Hilti HVU capsules
For approval or certificate information, please see individual items.
