HIT-HY 200-R V3 Adhesive anchor

Configurator
Technical Data
Documents
Features & Applications
Related Products

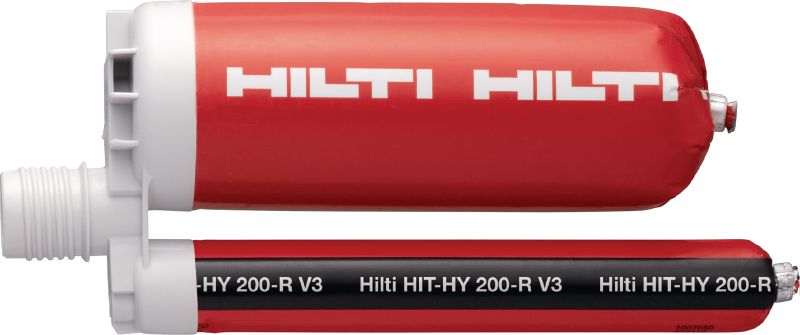

HY 200 R v3 330ml

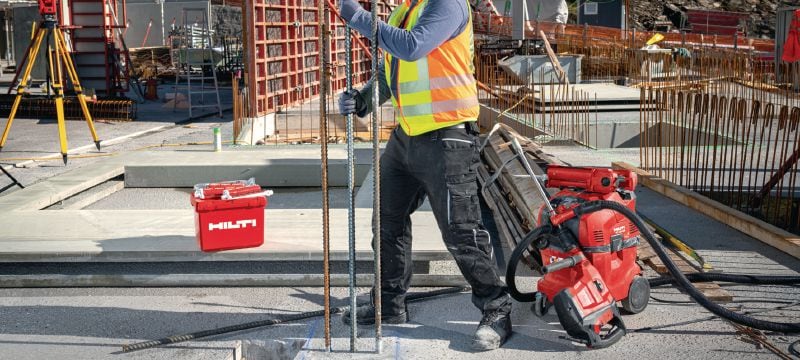

Rebar drilling application using TE 60-22 and VC 10-22 (HNA)

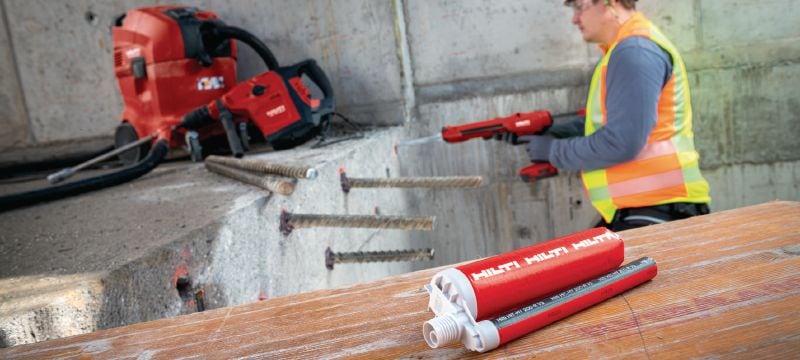

Rebar injecting with HDE 500-22, TE 60-22, SL 6-22, and VC 40-22 application image (HNA)

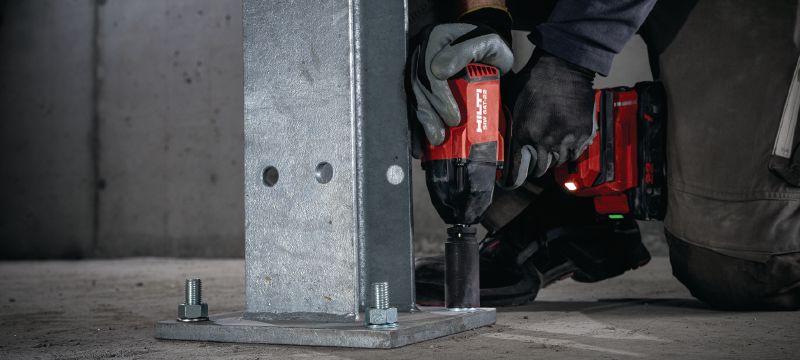

Cropped version of the HAS rod baseplate application image with cordless impact wrench SIW 6AT-22 for PDP.

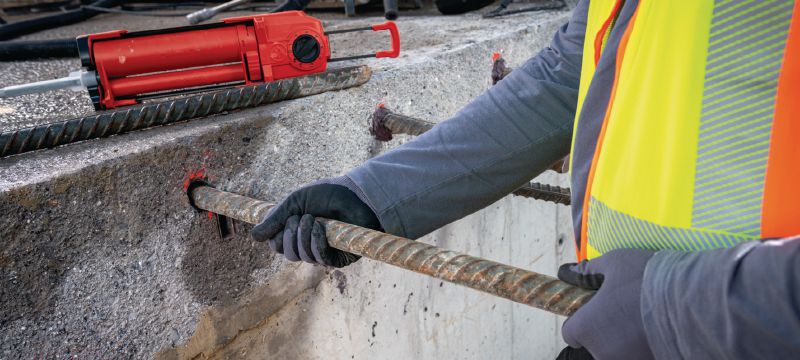

Rebar installation with HIT-HY 200-R V3 chemical mortar and HDE battery dispenser
Rebar installation with HIT-HY 200-R V3 chemical mortar and HDE battery dispenser, SafeSET
Vertical Post installed rebar with HY 200 R v3 mortar, drilled with TE 70-ATC/AVR SDS Max (TE-Y) rotary hammer with HDB

Ultimate-performance injectable hybrid mortar with approvals for post-installed rebar connections and anchoring structural baseplates

  • Base materials: Concrete (cracked), Concrete (lightweight), Concrete (uncracked), Masonry (grout-filled CMU)
  • Base material condition (as per approval): Dry, Water-filled
  • Approvals / Test reports: DOT approval (contact Hilti), ICC-ES report (concrete), ICC-ES report (masonry), LABC, Seismic

Customers also searched for Safeset Anchor, Fast cure Anchor, Chemical Anchor, Rebar Anchor or Adhesive Mortar.

Choose options

Content per can/cartridge
  • 11.16 fl oz (US)
  • 16.91 fl oz (US)
Return Policy
  • No Returns
Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please log in or register to see your company prices.

Discounted net
From $86.25

Technical Data

Base materials
Concrete (cracked), Concrete (lightweight), Concrete (uncracked), Masonry (grout-filled CMU)
Base material condition (as per approval)
Dry, Water-filled
Approvals / Test reports
DOT approval (contact Hilti), ICC-ES report (concrete), ICC-ES report (masonry), LABC, Seismic
Seismic loading
Yes
PROFIS Software
Yes
Anchoring elements
HAS threaded rods, HIS-N internally threaded rods, HIS-N internally threaded sleeves, HIT-Z torque controlled bonded anchors, Rebar
Cleaning procedures
Non Cleaning
Storage and transportation temperature range
5 - 25 °C
In-service temperature – range
-40 - 120 °C
Free of styrene
Yes

Documents

Approval document
Certificate
HSE Information
Documentation
Technical information
Brochure
Material safety datasheet
Sustainability Documentation
Operating Instruction
Battery Recycling Information
pdf ETA-20/0475 HCC-K, English, German, Polish, French [ 3.8 MB ]
pdf ETA-20/0697 HCC-U, English, German, French [ 14.9 MB ]
pdf ICC-ES ESR-4878 for HIT-HY 200 V3 in Masonry, English [ 2 MB ]
pdf ICC-ES ESR-4868 for HIT-HY 200 V3 in cracked and uncracked Concrete, English [ 3.8 MB ]
pdf ETA-23/0277 HAS-U A4 Fatigue, English, German, Polish [ 5.3 MB ]

Features & Applications

Features

  • Optimized embedment depth – higher mortar strength makes more efficient embedment depths possible and can help post-installed rebar perform better than cast-in bars utilizing the latest update of design method TR069 for static and fire loading for fire requirements up to 240min
  • Easier to specify and order – use PROFIS Engineering to design steel to concrete or concrete to concrete connections according to ACI or the Hilti Design Method
  • Optimized for post-installed rebar – longer working time for rebar applications in dry concrete, wet concrete, or water filled drill holes, with a wide working temperature range from (+14°F to +104°F)
  • Extensive approvals available – including ICC-ES ESR for cracked and uncracked concrete, grout-filled masonry, and seismic category A-F
  • No hole cleaning required - pair with HIT-Z anchor rods or drill with hollow drill bit and a compatible vacuum cleaner for faster workflows

Applications

  • Structural concrete connections with post-installed rebar
  • Fastening secondary steel structures (e.g. racking, machinery, guard rails, sound barriers) to concrete
  • Anchoring structural steel connections (e.g. steel columns, beams) to concrete
  • Strengthening concrete and retrofitting reinforced concrete buildings, including replacing misplaced/missing cast-in rebar with post-installed rebar
  • Concrete connections designed both as rigid and as simply supported

For approval or certificate information, please see individual items.
