HIT-RE 100 Epoxy anchor

Configurator
Technical Data
Documents
Features & Applications
Related Products
L041483_V6.tif
RE100 with Hollow drill bit and Electric dispenser
L065051_RE100.tiff
L065008_RE100.tiff

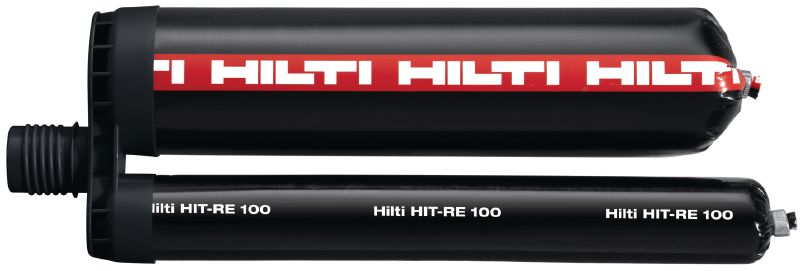

High-performance injectable epoxy mortar with everyday approvals for anchoring and rebar connections in concrete

  • Base materials: Concrete (cracked), Concrete (uncracked)
  • Base material condition (as per approval): Dry
  • IBC compliance: IBC 2015, IBC 2018, IBC 2021

Choose options

Content per can/cartridge
  • 11.16 fl oz (US)
  • 16.91 fl oz (US)
Return Policy
  • No Returns
Pack size
  • 1 pc
  • 20 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please log in or register to see your company prices.

Discounted net
From $17.25

Technical Data

Base materials
Concrete (cracked), Concrete (uncracked)
Base material condition (as per approval)
Dry
IBC compliance
IBC 2015, IBC 2018, IBC 2021
Seismic loading
Yes
PROFIS Software
Yes
Anchoring elements
HIS-N internally threaded rods, Rebar
Cleaning procedures
Manual Cleaning
Storage and transportation temperature range
5 - 25 °C
In-service temperature – range
-40 - 70 °C

Documents

Technical information
HSE Information
Specification Text
CAD/BIM Typicals
Certificate
Approval document
Schematic
Brochure
Material safety datasheet
Sustainability Documentation
Operating Instruction
Battery Recycling Information
pdf Whitepaper Fire design of PIR applications, English [ 1.4 MB ]
pdf Product Technical Guide Supplement for HIT-RE 100 Adhesive Anchor, English [ 7.7 MB ]
pdf Product Technical Guide Supplement for HIT-RE 100 Adhesive Anchor, French [ 2.3 MB ]

Features & Applications

Features

  • Good performance in cracked and uncracked concrete
  • Suitable for indoor and outdoor applications as well as use in a wide variety of base material conditions - dry, wet, water-filled (depending on rod specification and approvals)
  • Long working time allows greater flexibility in installation
  • Extensive range of accessories available (e.g. piston plugs, steel brushes, cordless electric dispenser)
  • Easy cleaning method simplifying installation

Applications

  • Substitution of misplaced / missing rebars
  • Renovation / upgrades with post-installed rebars
  • Rebar doweling / connection of secondary post-installed rebars
  • Anchoring secondary steel elements
  • Anchoring structural steel connections (e.g. steel columns, beams)

For approval or certificate information, please see individual items.
