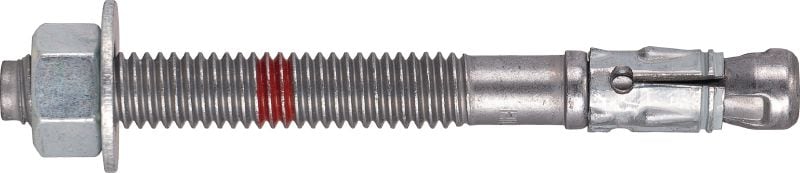

Kwik Bolt TZ2 Wedge anchor
Ultimate-performance wedge anchor for cracked concrete and seismic (carbon steel)
- Material, corrosion: Carbon steel, Zinc plated (min. 5 microns)
- Head configuration: Externally threaded
- Approvals / Test reports: FM (Factory Mutual), ICC-ES report (concrete), ICC-ES report (masonry), LABC, Nuclear (NQA-1), UL (Underwriter Laboratories)
Customers also searched for wedge anchors, concrete wedge anchors, KBTZ2, KB-TZ2 or KBTZ-2.
Technical Data
Material, corrosion
Carbon steel, Zinc plated (min. 5 microns)
Head configuration
Externally threaded
Approvals / Test reports
FM (Factory Mutual), ICC-ES report (concrete), ICC-ES report (masonry), LABC, Nuclear (NQA-1), UL (Underwriter Laboratories)
Base materials
Concrete (cracked), Concrete (lightweight), Concrete (lightweight over metal deck), Concrete (uncracked), Masonry (grout-filled CMU)
Installation tools
TE 6-22 Cordless rotary hammer, SIW 4AT-22 ½” Cordless impact wrench
PROFIS Software
Yes
Environmental conditions
Dry indoor
Documents
Features & Applications
Features
- Ultimate tension and shear performance for seismic relevant applications as well as cracked concrete (tension zone)
- Seismic tested in accordance with ACI 355.2 and ICC-ES AC 193
- Per ICC-ES, compliant for use with Hilti Adaptive Torque (AT) Module for Mechanical Safeset
- Per ICC-ES, compliant for use in diamond cored holes
- Small minimum edge distance and spacing for maximum design flexibility
Applications
- Fastening structural steel, facades, electrical and mechanical equipment, hand rails and racks
For approval or certificate information, please see individual items.
