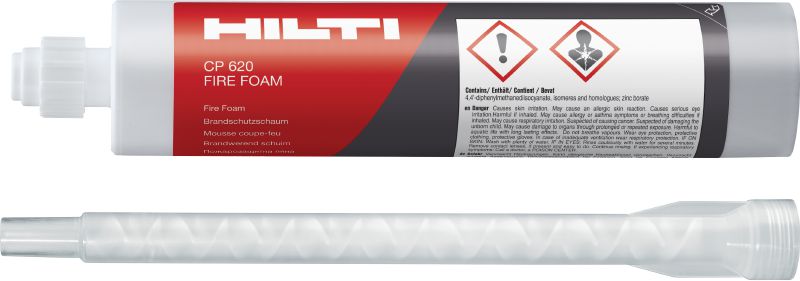

CP620 cartridge, r1002

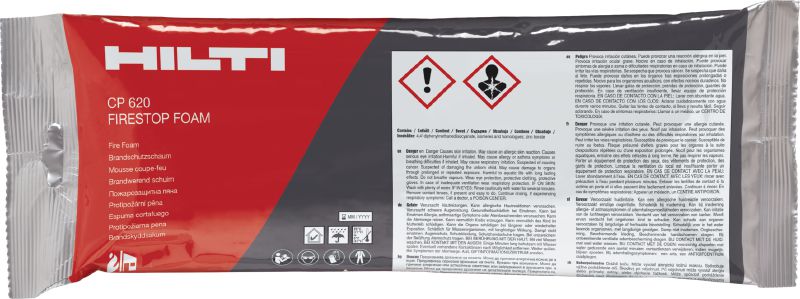

sales bag CP620, r1002
CP620 cables wo ID plate
11843.tif
CP 620
CP 620 Fire Foam,expanding firestop foam,barrier,picto

Rigid and fast-curing firestop foam with excellent water resistance to help create a fire, smoke and moisture barrier around cable and mixed penetrations

  • Application temperature range: 10 - 30 °C
  • Color: Red
  • Content per can/cartridge: 300 ml

Customers also searched for foam, expand, expandable or spray.

Choose options

Return Policy
  • No Returns
Pack size
  • 12 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please log in or register to see your company prices.

Discounted net
From $39.00

Technical Data

Application temperature range
10 - 30 °C
Color
Red
Content per can/cartridge
300 ml
Chemical basis
Two component polyurethane foam
Foam Yield (up to)
116 in³
Required dispenser
DSC
LEED VOC
1.3 g/l
Surface burning characteristics UL 723 (ASTM E84)
Flame spread: 0<BR>Smoke development: 15
Storage and transportation temperature range
5 - 25 °C
Temperature resistance range
-30 - 100 °C

Documents

Brochure
HSE Information
Technical information
Certificate
Schematic
Approval document
Test Report
CAD/BIM Typicals
Specification Text
Sustainability Documentation
Material safety datasheet
Operating Instruction
pdf Brochure_W4580_0523_g_Data_Center_Solutions__en_2023 [ 5.9 MB ]

Features & Applications

Features

  • Adheres to concrete, drywall and masonry
  • Approval for virtually any transit type – cables, trays, conduits and pipes (metal and plastic)

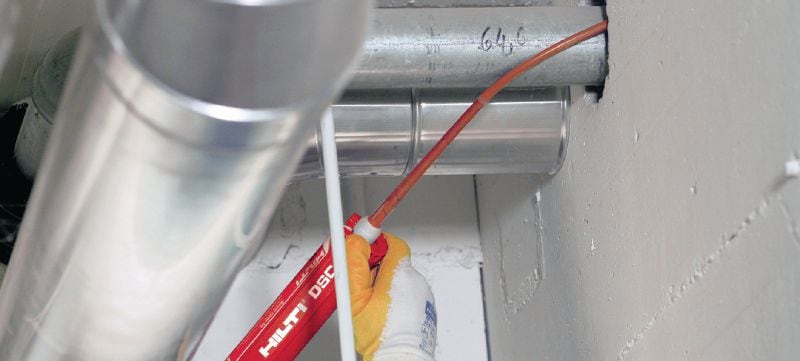

  • Suitable for complex and difficult-to-reach applications – single-sided installation possible and no reinforcing material needed
  • Fast curing in less than 10 minutes
  • Mold, mildew, water and vapor resistant

Applications

  • Concrete, drywall and masonry

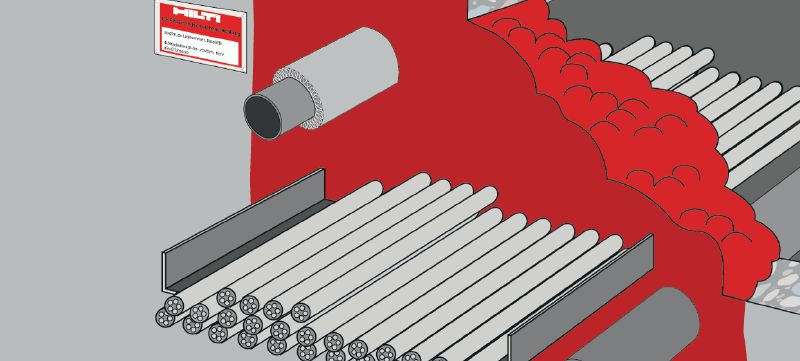

  • Multiple and mixed penetrations

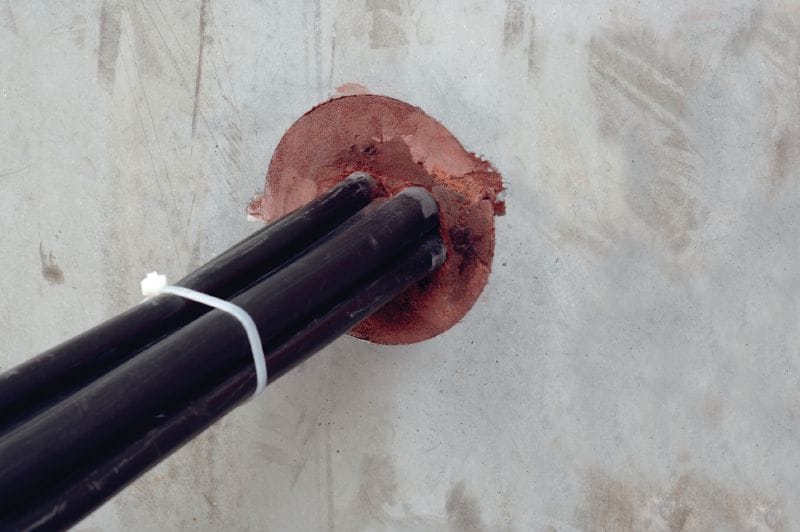

  • Single cables, cable bundles and cable trays

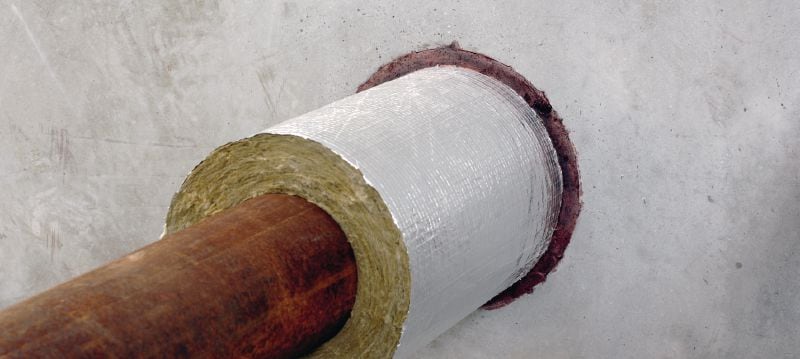

  • Metal pipes
  • Suitable for irregular and difficult-to-reach openings

For approval or certificate information, please see individual items.
