CP 660 Flexible firestop foam

Configurator
Technical Data
Documents
Features & Applications
Related Products
Firestop_Foam_CP_660/CFS-F_FX
Firestop_Foam_CP_660/CFS-F_FX
L069758.tiff

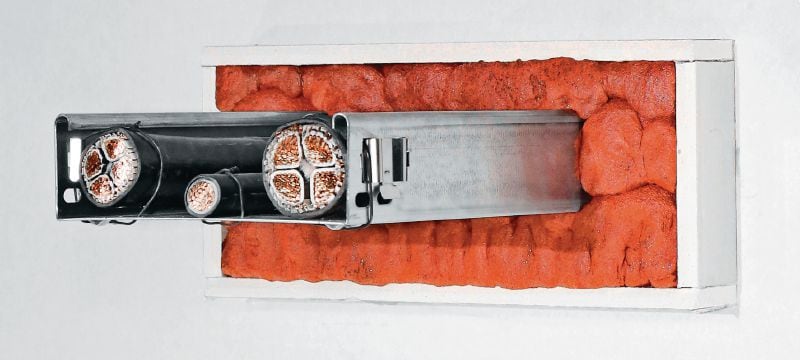

CP_660_CFS-F_FX,_Firestop_Foam_CP_660_CFS-F_FX_cable_tray

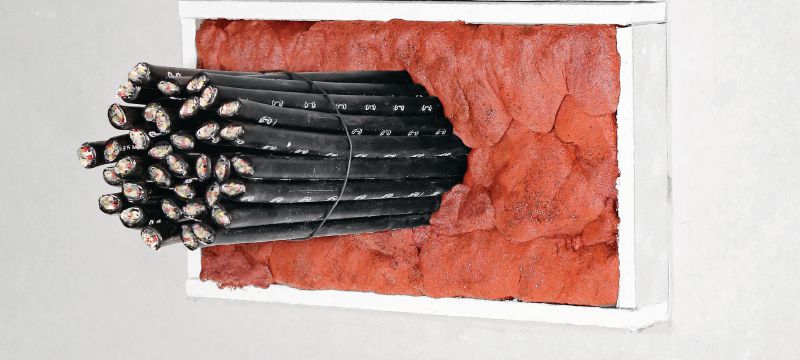

CP_660_CFS-F_FX,_Firestop_Foam_CP_660_CFS-F_FX_cable_bundle
Firestop Block Power

Easy-to-install flexible firestop foam to help create a fire and smoke barrier around for cable and mixed penetrations

  • Approx. cure time: 10 min
  • Application temperature range: 10 - 35 °C
  • Color: Red

Choose options

Return Policy
  • No Returns
Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please log in or register to see your company prices.

Discounted net
From $103.00

Technical Data

Approx. cure time
10 min 1
Application temperature range
10 - 35 °C
Color
Red

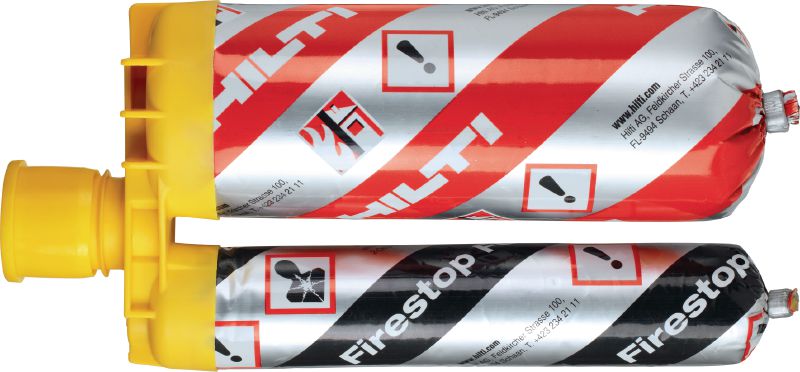

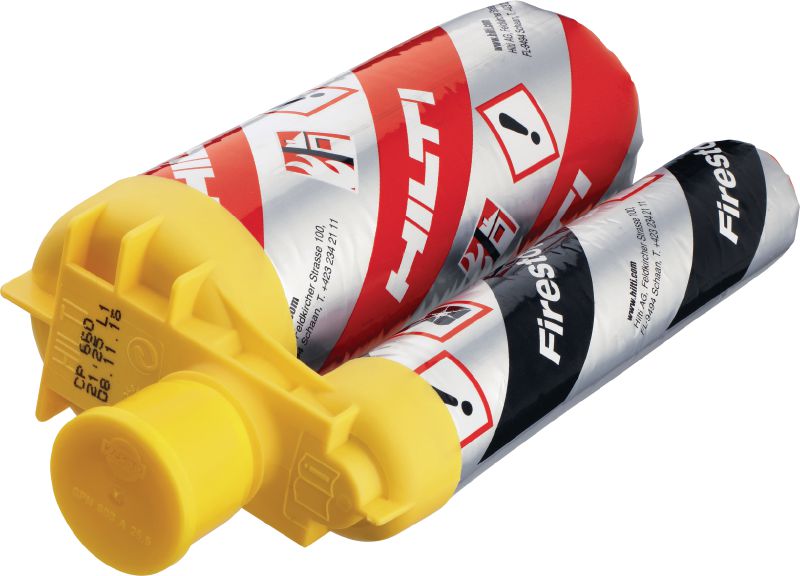

Content per can/cartridge
325 ml
Chemical basis
Two component polyurethane foam
Foam Yield (up to)
128 in³

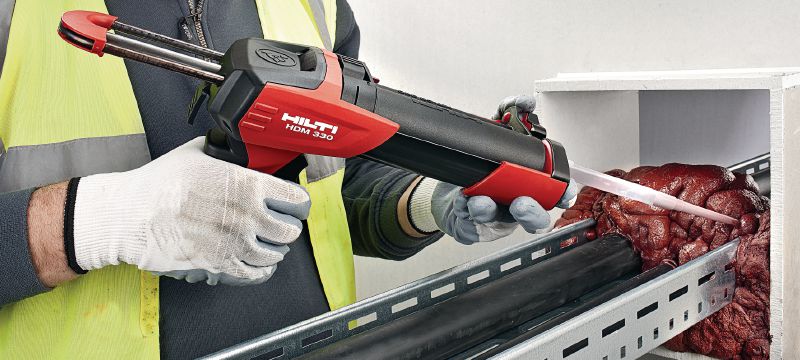

Required dispenser
HDM 330, HDE 500, HDM 500
LEED VOC
26 g/l
Storage and transportation temperature range
5 - 25 °C
Temperature resistance range
-30 - 60 °C
  1. at 75°F/24°C, 50% relative humidity

Documents

HSE Information
Schematic
Certificate
Approval document
Test Report
Technical information
Material safety datasheet
Sustainability Documentation
Operating Instruction
pdf VOC_SCAQMD and EPA24_CP660_EN, English [ 173.9 KB ]
pdf VOC_CDPH_CP 660_EN, English [ 125 KB ]

Features & Applications

Features

  • Versatile – single cables, bundles, trays, trunking and mixed penetrations (metal and plastic pipes)
  • Future-proof – re-penetrable to allow future cable capacity increases
  • Easily shaped during curing phase – leftovers can be cut and reused
  • Single-sided installation possible
  • Simpler – no additional sealing or backfilling material needed

Applications

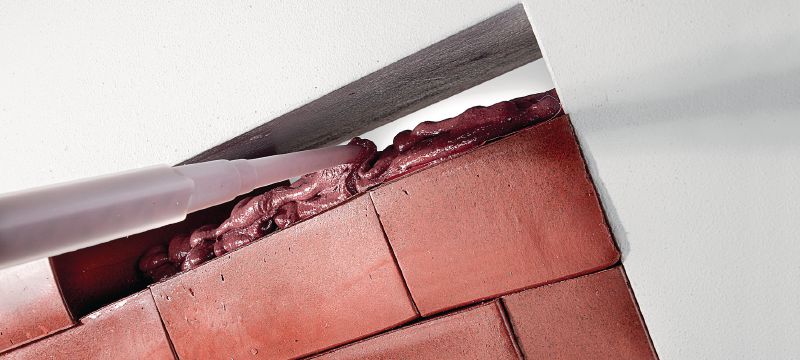

  • Electrical: Cable, cable bundles, cable trays and cable trunkings. Mixed penetrations. Repenetration of single cables. Combi approvals with CFS-BL blocks especially for large openings or special segment applications (telecom, industrial)
  • Mechanical: Non combustible (metal) pipes with mineral wool / non flammable insulation. Small combustible (plastic) pipes. No smoke/gastight additional sealing and no backing material required.
  • Can be used for LAR applications
  • Combustable pipes up to 110 mm, with firesetop collar
  • Conduits and conduit bundles

For approval or certificate information, please see individual items.
