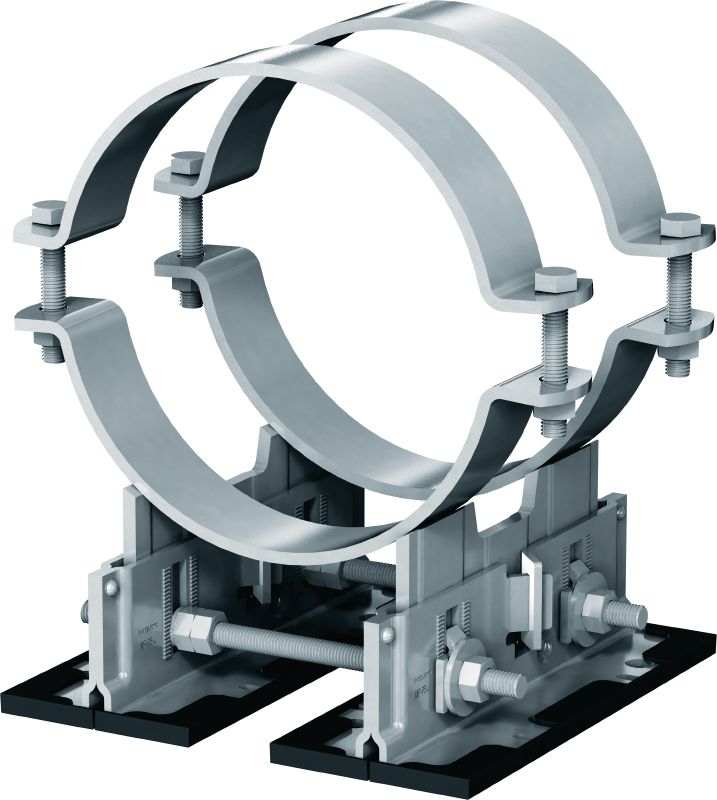

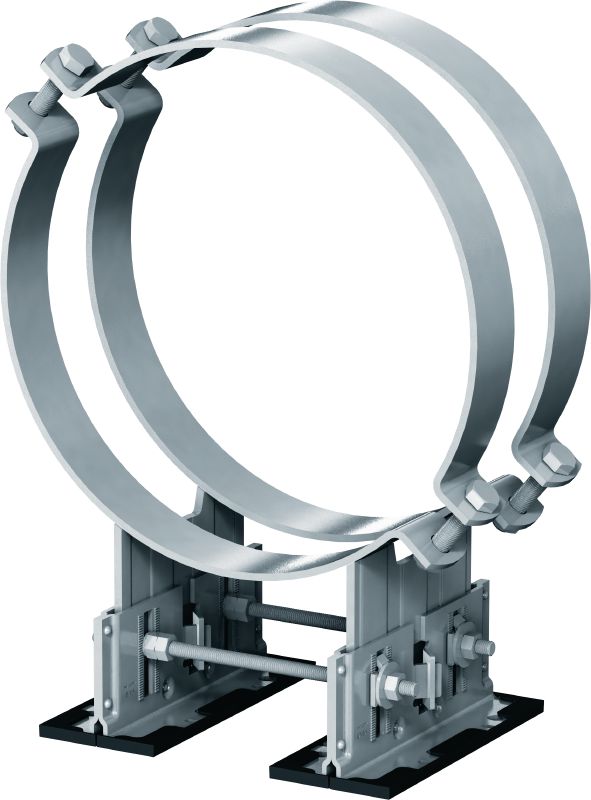

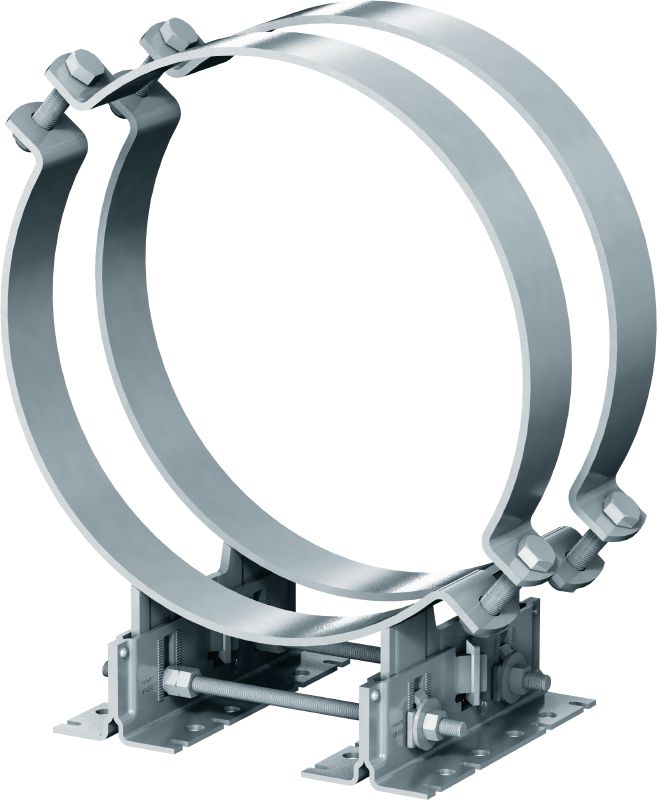

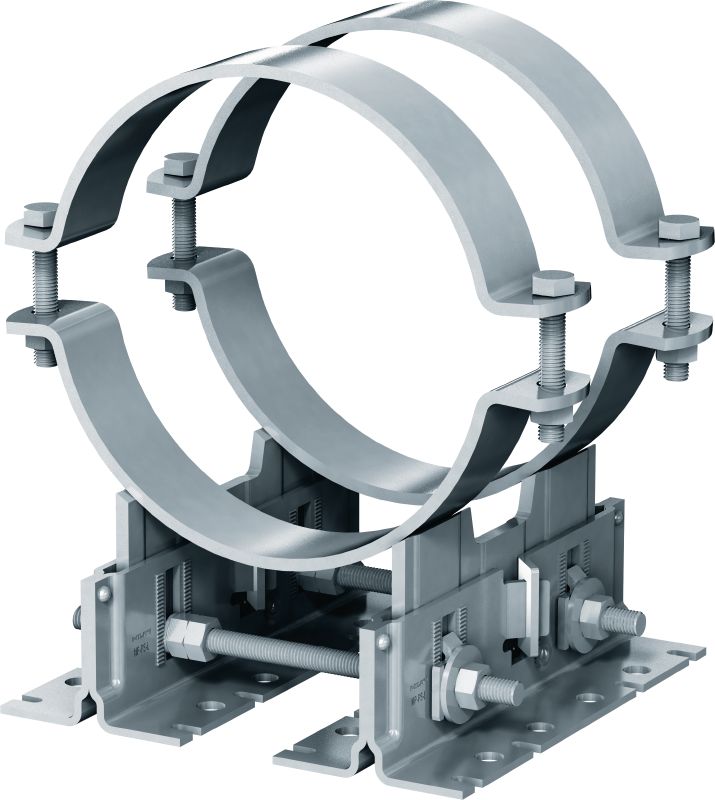

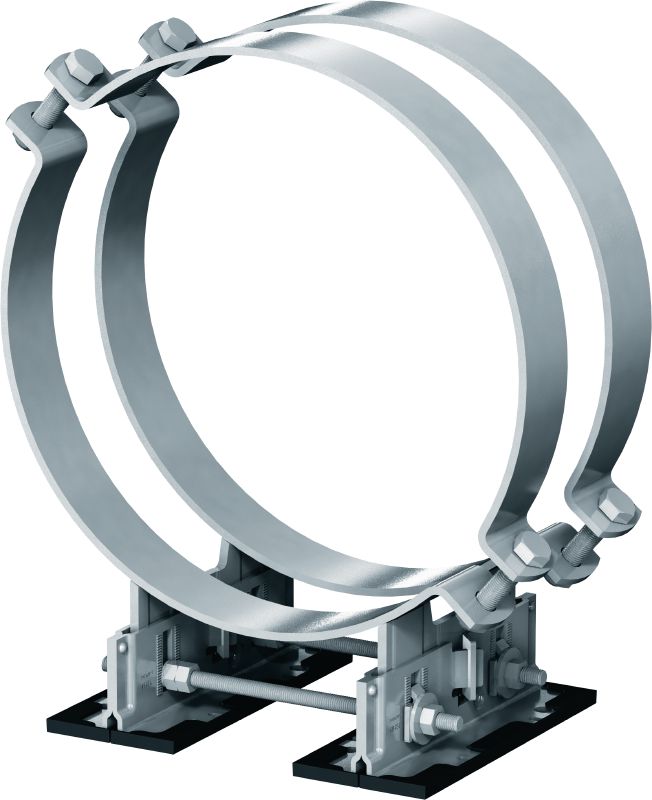

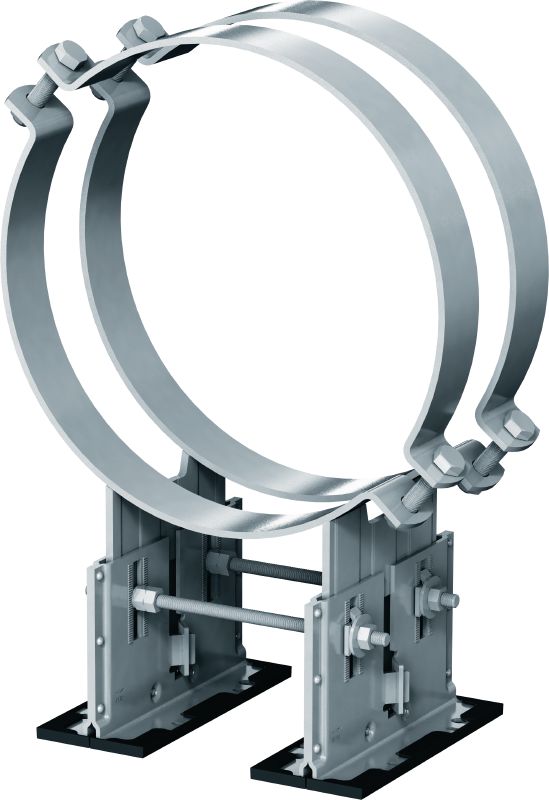

MP-PS 4-2 Pipe shoe
Outdoor coated (OC) pipe shoe with height and slope adjustability for heavy industrial applications with outer pipe diameters of 217-610 mm (8" to 24")
- Fire resistance ( Yes/No): No
- Temperature resistance: -20 - 300 °C
- Material composition: Base-plate: S280GD / Modif POSMAC-C, Bows: S235JR - DIN EN 10025, Middle-plate: S235JR - DIN EN 10025, Sliding-plate: PA66 + GF30, Bolt: Steel grade 8.8, Nut: Steel grade 8
Choose options
Clamping Range - D
- 8.54 - 8.94 in
- 9.61 - 10 in
- 10.51 - 10.91 in
- 12.52 - 12.91 in
- 13.78 - 14.17 in
- 15.79 - 16.18 in
- 17.8 - 18.19 in
- 19.8 - 20.2 in
- 23.82 - 24.21 in
Height above ground to base of pipe
- 3-1/2 - 4-9/16 in
- 4-9/16 - 6-11/16 in
- 6-11/16 - 8-3/4 in
Nominal pipe size (imperial)
- 8 in
- 10 in
- 12 in
- 14 in
- 16 in
- 18 in
- 20 in
- 24 in
Nominal pipe size
- 200 mm
- 250 mm
- 300 mm
- 350 mm
- 400 mm
- 450 mm
- 500 mm
- 600 mm
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
From $359.00
Technical Data
Fire resistance ( Yes/No)
No
Temperature resistance
-20 - 300 °C
Material composition
Base-plate: S280GD / Modif POSMAC-C, Bows: S235JR - DIN EN 10025, Middle-plate: S235JR - DIN EN 10025, Sliding-plate: PA66 + GF30, Bolt: Steel grade 8.8, Nut: Steel grade 8
Material thickness
base-plate: 4mm, Middle-plate: 7mm, Sliding-plate: 3mm, Serrated washer: 4mm
Surface finish
Outdoor Coated - HDG
Hot-dip galvanized
Yes
Stainless steel
No
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Base material type
Concrete, Steel, Modular Support
Wrench size
19 mm
Tightening torque for height adjustment
36.88 ft-lbf
Length
10.1 in
Additional product information
Friction coefficient - Sliding plate (PA66-GF30) on Zinc-Magnesium surface: 0.146, Friction coefficient - Sliding plate (PA66-GF30) on Hot Dip Galvanized surface: 0.129, PA66-GF30 vs Zn: 0.177
Documents
Features & Applications
Features
- One-for-all versatility – use the same pipe shoe system for fix-, slide-, guided- or freestanding supports to Hilti modular girders, steel beams and concrete
- Extensive software support – simplify calculation by using PROFIS, Hilti FixPoint Calculator, BIM/CAD libraries and various plug-ins
- Load data and documentation available – design according to EN13480-3, Eurocode 3 and MSS-SP58 guidelines for pipe support components
- Quicker installation on-site – easily adjust the height and slope after fastening the pipe shoe in place
- Wider clamping range – suitable for various different pipes with or without additional inlays
Applications
- Fastening pipes to steel beams, concrete or Hilti modular support girders
- Pipe installations in onshore industrial, power generation, pharmaceutical, electronics or automotive manufacturing facilities
- Suitable for application temperatures of up to 300 °C and an insulation thickness of up to 220 mm
- Recommended for use in Indoor or Outdoor with low to moderate pollution (C3)
For approval or certificate information, please see individual items.
