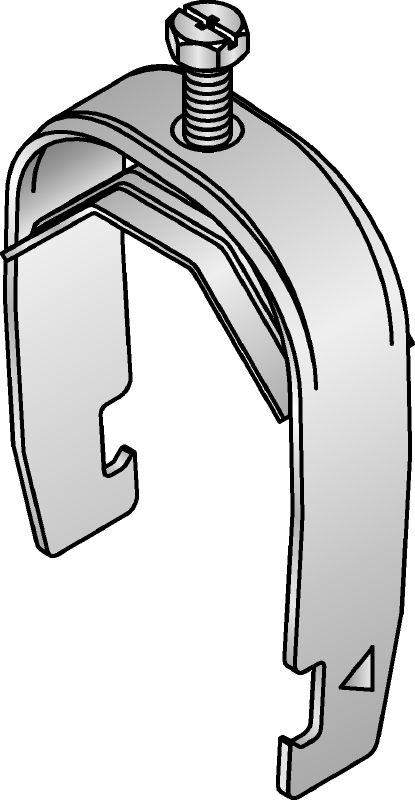

MH-EMTV Strut clamp
Pre-assembled strut clamp with tightening screw on top for easy access for attaching tubing and pipes to strut channels
- Material composition: Carbon steel
- Surface finish: Indoor Coated - Pre-galvanized
- Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Customers also searched for electrical metallic tubing, EMT or conduit.
Choose options
Nominal pipe size (imperial)
- 1/2 in
- 3/4 in
- 1 in
- 1-1/4 in
- 1-1/2 in
- 2 in
Allowable axial load - Fx
- 30 lbf
- 40 lbf
- 50 lbf
Allowable shear load - Fy
- 50 lbf
- 75 lbf
Allowable tensile load - Fz
- 200 lbf
Pack size
- 25 pc
- 50 pc
- 100 pc
Quantity
Packs
Total Pieces
1
Discounted net
From $180.00
Technical Data
Material composition
Carbon steel
Surface finish
Indoor Coated - Pre-galvanized
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Clamping screw
1/4"-20 UNC
Tightening torque
3 ft-lbs
Cross section width - b
25/32 in
Documents
pdf Corrosion handbook, English [ 9.6 MB ]
Features & Applications
Features
- Pre-assembled out of box
- Tightening screw on top for easy access
- Sized for electrical metallic tubing
Applications
- Mechanical piping systems - used to support and secure HVAC, plumbing, or other mechanical pipes within industrial or commercial buildings, ensuring they are held firmly in place within strut channels

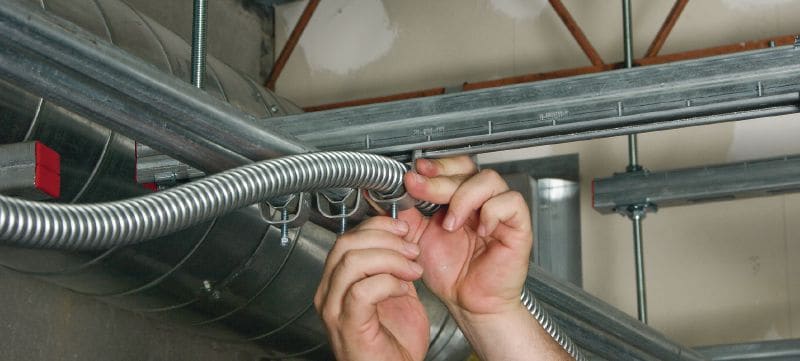

- Electrical conduit installation - used for securing electrical metallic tubing (EMT) and other types of conduits to strut channels, particularly in environments where precise and stable alignment of electrical infrastructure is critical
- Utility piping - suitable for securing various types of utility piping in environments that require a durable and easy-to-install solution
For approval or certificate information, please see individual items.
