MT-C-LL2 OC Angle connector

Angle connector MT-C-LL2 OC #2272053

Configurator
Technical Data
Documents
Features & Applications
Related Products
MT System Connector
MT System Connector

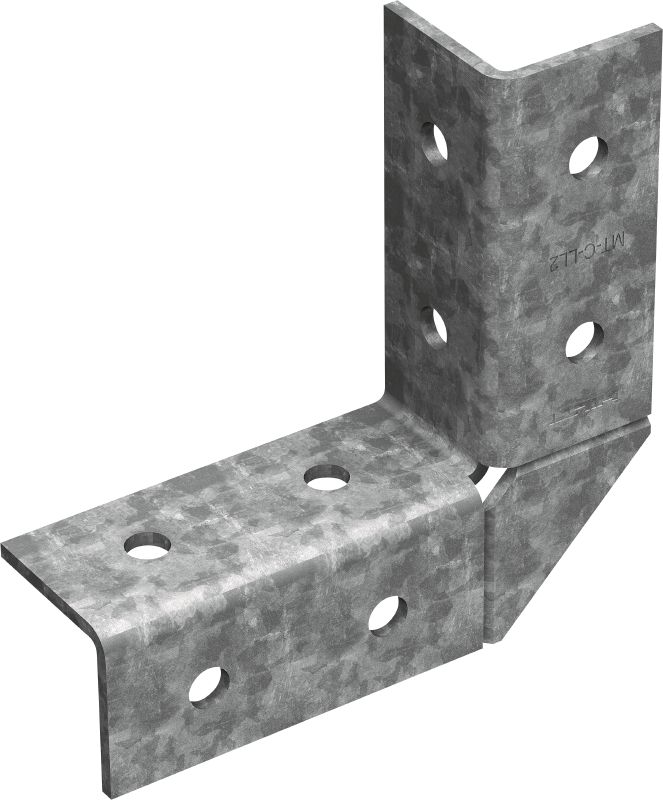

Right-angle, elongated connector for assembling strut channel structures, for outdoor use with low pollution

  • Material composition: Q235 or better steel
  • Surface finish: Hot-dip galvanized - for outdoor use
  • Material thickness: 4 mm

Choose options

Pack size
  • 10 pc
 Product options
Quantity
Box
Total Pieces
10
You cannot see your company prices

Please log in or register to see your company prices.

Discounted net
$241.00
$241.00 / 1 Box

Technical Data

Details
Technical illustrations
Material composition
Q235 or better steel
Surface finish
Hot-dip galvanized - for outdoor use
Material thickness
4 mm
Weight
1.3 lb
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)

Documents

Certificate
Approval document
Documentation
Technical information
Brochure
Sustainability Documentation
Operating Instruction
pdf EN 1090 Certificate of conformity of the factory production control MT, English [ 348.7 KB ]

Features & Applications

Features

  • Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
  • Easy to install – compatible with the Hilti MT Twist-Lock, a faster alternative to spring nuts for assembling a modular support system
  • Adaptable – unlike welding, angle brackets allow you to modify strut channel framing during installation and for future MEP requirements
  • Extensive software support – PROFIS Modular Support Engineering, the MEP Support Selector, Revit® families, and plug-ins for Staad Pro® and Smart 3D® are all available to streamline design and ordering
  • Corrosion resistance – hot-dip galvanized to help protect against moisture and chemical corrosion

Applications

  • Fastening L-shaped connections between any MT strut channels
  • Assembling 2D metal framing for MEP support structures, such as strut trapeze
  • Suitable for use in moderately corrosive environments
