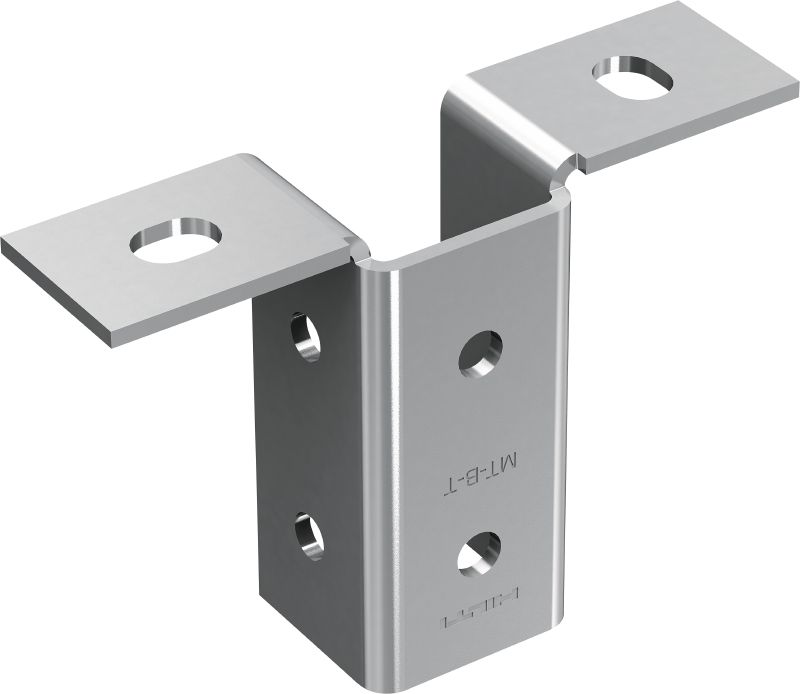

MT-B-T Light-duty baseplate

2-hole Baseplate MT-B-T #2272090

Configurator
Technical Data
Documents
Features & Applications
Related Products
MT Base Connector
MT Base Connector

Base connector for anchoring light-duty strut channel structures to concrete or steel

  • Material composition: Q235 or better steel
  • Surface finish: Pre-galvanized - for dry indoor use only
  • Material thickness: 4 mm

Choose options

Pack size
  • 20 pc
 Product options
Quantity
Box
Total Pieces
20
You cannot see your company prices

Please log in or register to see your company prices.

Discounted net
$331.00
$331.00 / 1 Box

Technical Data

Details
Technical illustrations
Material composition
Q235 or better steel
Surface finish
Pre-galvanized - for dry indoor use only
Material thickness
4 mm
Weight
1.3 lb
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Documents

Approval document
Certificate
Documentation
Technical information
Brochure
Sustainability Documentation
Operating Instruction
pdf ETA-23-0826 MT Base Connectors, English [ 2.4 MB ]
pdf ETA-23-0104 MT Frame Trapeze, English [ 3.3 MB ]

Features & Applications

Features

  • Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
  • Easy to install – compatible with the Hilti MT Twist-Lock, a faster alternative to spring nuts for assembling a modular support system
  • Adjustable – two slotted anchor holes to simplify baseplate positioning and fastening
  • Adaptable – unlike welding, modular post bases allow you to modify strut channel framing for future MEP requirements
  • Part of a complete Hilti solution – compatible with our direct fastening and anchoring solutions

Applications

  • Fastening MT strut channel to concrete floors, walls or ceilings
  • Fastening MT strut channel to structural steel
  • Anchoring metal framing and MEP support structures with light loads to a base material
  • Suitable for use in dry, indoor environments
