MT-CC-40/50 FL Pre-assembled U-Fitting

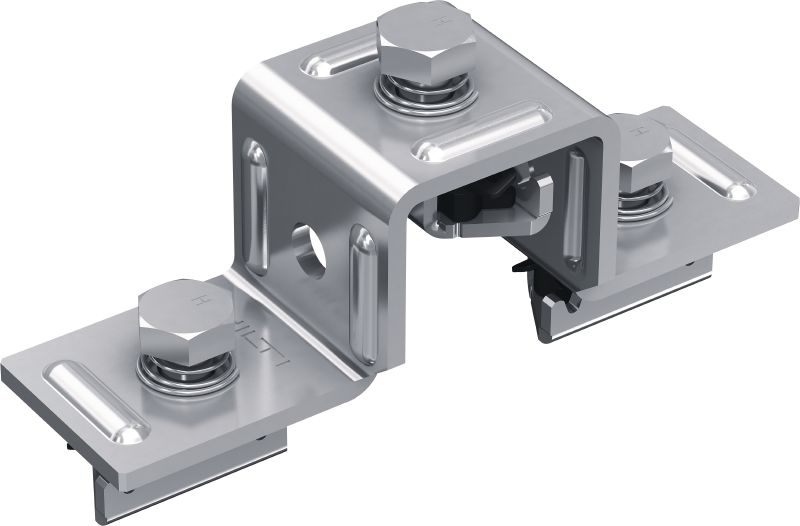

Still life picture of pre-assembled channel clamp MT-CC-40/50 FL with Fast-Lock

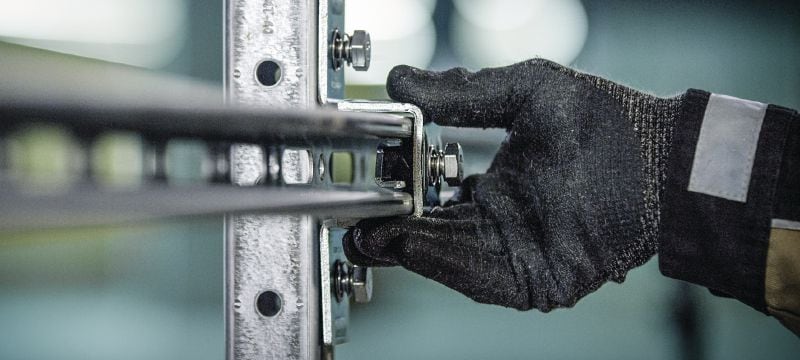

Cropped application picture of MT-CC 40/50 FL installation
Cropped application image of pre-assembled channel connector with Fast-Lock
Line drawing of the MT CC 40 50 FL
Still life picture of pre-assembled channel clamp MT-CC-40/50 FL with Fast-Lock
Cropped application picture of MT-CC 40/50 FL installation
Cropped application image of pre-assembled channel connector with Fast-Lock
Line drawing of the MT CC 40 50 FL
This promotional video highlights the features and benefits of the new MT-FL Fast-lock portfolio (MT lightspeed). These connections are a new addition to the MT installation system portfolio and deliver higher productivity, flexibility and safety.

Clamp with pre-assembled Fast-Lock nut and bolt for channel-to-channel cross-connections with MT strut channel

  • Material composition: Q235B
  • Material and coating: Carbon steel - indoor coated
  • Material thickness: 4 mm

Technical Data

Line drawing of the MT CC 40 50 FL
Material composition
Q235B
Material and coating
Carbon steel - indoor coated
Material thickness
4 mm
Surface finish
Indoor Coated - Electro galvanized
Tightening torque
22 ft-lbs

Documents

Features & Applications

Features

  • Faster installations – pre-assembled with the Hilti MT Fast-Lock, our fastest method for assembling a modular support system with fewer steps
  • Simplified stock management – pre-assembly greatly reduces the total number of MT components, for easier purchasing, handling, and storage
  • Consistent installation quality – pre-assembly removes additional steps, helping reduce assembly errors for safer installations
  • Universal and versatile – compatible with multiple strut channel profiles for completing many applications with fewer parts
  • Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures

Applications

  • Cross-connection of one strut channel to another channel
  • Suitable for use in dry, indoor environments

For approval or certificate information, please see individual items.
