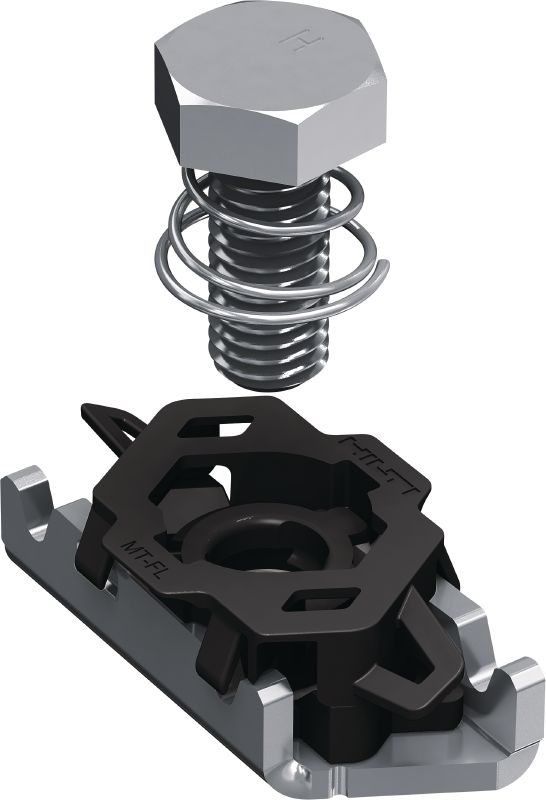

MT-FL Fast-Lock channel nut with bolt

Fast-Lock MT-FL #2399683

Pack size

Product options

Quantity

Box

Total Pieces

You cannot see your company prices

Please log in or register to see your company prices.

Discounted net

$235.00

$235.00 / 1 Box

Technical Data

Material composition

S460MC, Q460B (Q460C MOD)

Material and coating

Carbon steel - indoor coated

Material thickness

3 mm

Surface finish

Indoor Coated - Electro galvanized

Tightening torque

22 ft-lbs

Weight

0.1 lb

pdf ETA-23-0104 MT Frame Trapeze, English [ 3.3 MB ]

pdf ETA-24-0607 MT Channel Connectors, English [ 1.3 MB ]

pdf ETA-23-0104 MT Frame Trapeze, English [ 3.3 MB ]

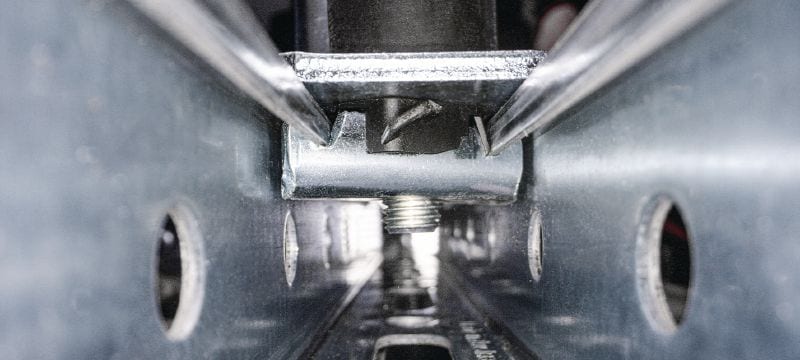

Faster connections and adjustments – one-handed push-and-turn connections and one-click position adjustments allow you to assemble modular support systems much faster than standard spring nuts
Simple to adjust – Fast-Lock nuts are re-adjustable and can be easily disassembled so you can modify strut channel framing during installation
Safety features – designed so you can see, hear, and feel correct channel nut positioning, with pre-holding function to hold connector in place as soon as the mechanism is activated
Reliable connections – strong mechanical fixation to the channel flanges provides high shear and pull-out resistance
Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
