MT-C-GLP L A OC L-shaped flat connector plate

#2430769

Configurator
Technical Data
Documents
Features & Applications
Related Products

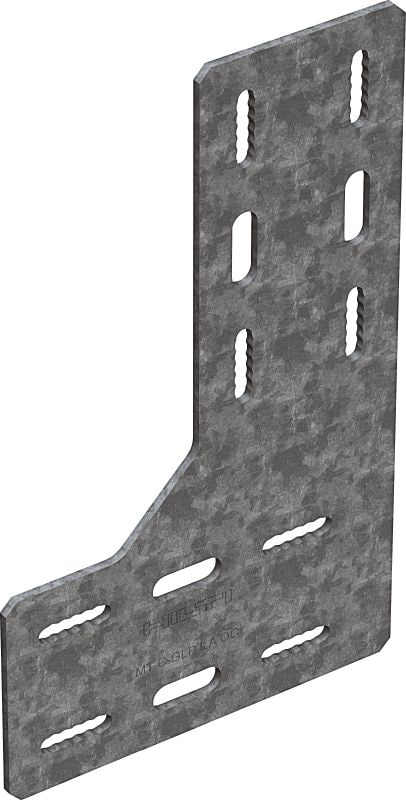

Still life picture of MT-C-GLP A OC Plate Connectors

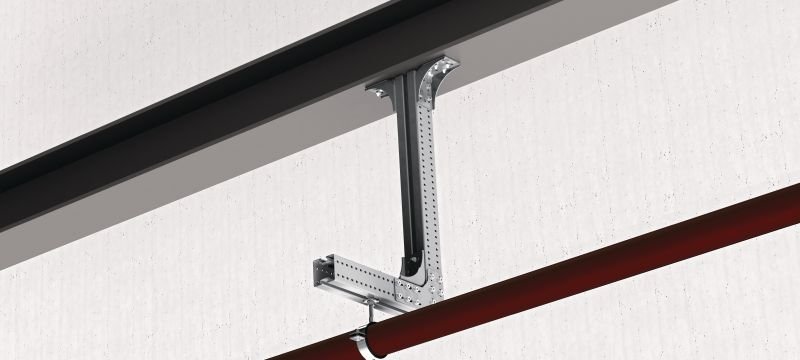

Cropped application image of MT-C-GL HA OC & MT-C-GS HA OC & MT-C-GLP L A OC connectors & MT-90H OC channel

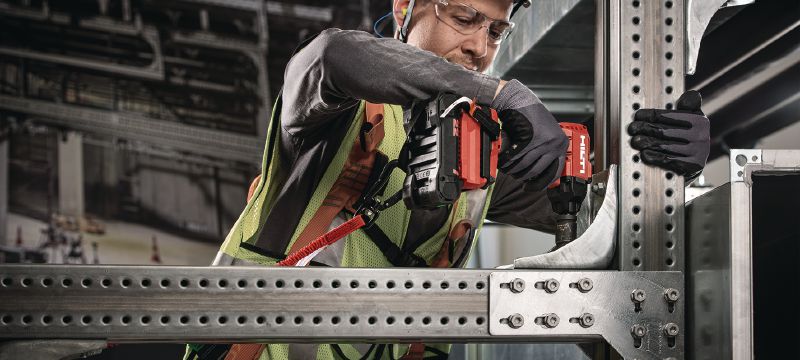

Application picture of MT-C-GLP L A OC
Line drawing of MT-C-GLP L A OC

L-shaped flat profile connector for assembling and bracing modular supports in moderately corrosive environments

  • Material composition: Q355 or better steel
  • Surface finish: Outdoor Coated - HDG
  • Material thickness: 4 mm

Choose options

Pack size
  • 8 pc
 Product options
Quantity
Box
Total Pieces
8
You cannot see your company prices

Please log in or register to see your company prices.

Discounted net
$181.00
$181.00 / 1 Box

Technical Data

Details
Technical illustrations
Material composition
Q355 or better steel
Surface finish
Outdoor Coated - HDG
Material thickness
4 mm
Weight
4.4 lb
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)

Documents

Certificate
Approval document
Brochure
Operating Instruction
pdf EN 1090 Certificate of conformity of the factory production control MT, English [ 348.7 KB ]

Features & Applications

Features

  • Faster to install – one-step assembly using Hilti MT Thread Forming Bolts (MT-TFB) and compatible with the Hilti Adaptive Torque system for hassle-free installations (compatible tool and SI-AT module required)
  • Versatile and secure connections – use oblong holes to adjust height in 5mm (1/4") increments and cloud holes with thread forming bolts (MT-TFB) for secure connections between MT heavy boxed profiles
  • Part of the Hilti MT System – an economical, all-in-one solution for virtually all modular MEP support structures
  • Corrosion resistance – hot-dip galvanized to help protect against moisture and chemical corrosion
  • Extensive software support – PROFIS Modular Support Engineering, Revit® families, and plug-ins for Smart 3D® are all available to streamline design and ordering

Applications

  • Assembling and bracing modular support structures consisting of MT-80, MT-90 or MT-100 box profiles
  • Multidisciplinary MEP support structures combining a wide range of media such as air ducts, cable trays, piping, etc.
  • Process piping for energy and industry applications
  • Ceiling-mounted MEP support structures with heavy loads such as ceiling grids and utility piping and drainage
  • Integrated modules and skids to support industrial pipes and other heavy-duty building services
