DSH 600-X 12" Gas cut-off saw

Configurator
Technical Data
Documents
Features & Applications
Related Products
Services
DSH 600-X, r5470074, r9529168
DSH 600-X
Cutting concrete pipes with water pump
Cutting rebar
Cutting concrete piles with water pump
Cutting kerb stones wet with water pump DSH-P
Cutting CMU conrete blocks with water pmup DSH-P

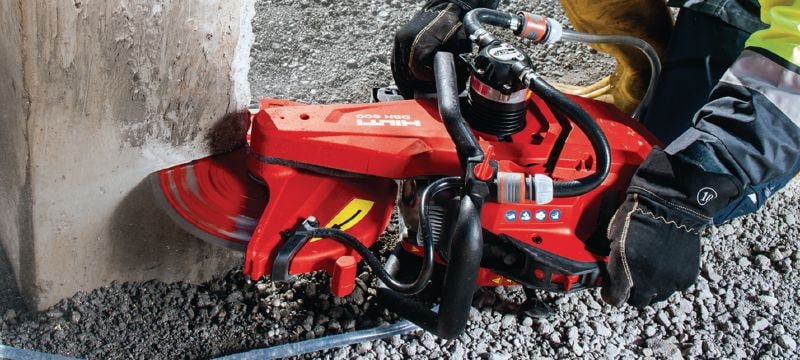

Compact top-handle gas saw (63cc) with blade brake, for cutting up to 4-3/4" with 12" blades in concrete, masonry, and metal

  • Motor cylinder: 63.3 cm³
  • Rated power: 3.2 kW
  • Wet or dry operation: Wet and Dry

Customers also searched for gas cut-off saw, top handle gas saw or concrete cutting gas saw.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please log in or register to see your company prices.

Discounted net
From $1,816.00

Technical Data

Motor cylinder
63.3 cm³
Rated power
3.2 kW
Wet or dry operation
Wet and Dry
Dimensions (LxWxH)
22 x 12.8 x 14.6 mm
Fuel mixture
50:1 (2% oil)
A-weighted emission sound pressure level
102 dB (A) 1
Disc diameter
12 in
Cutting depth
5 in
Triaxial vibration value for cutting concrete slab (ah)
2.5 m/s² 2
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see Operating Instruction for more details)

Documents

Operating Instruction
Material safety datasheet
pdf Operating Instruction DSH 600-X, English, Spanish, French, Portuguese [ 6 MB ]

Features & Applications

Features

  • Top-handle design for even more compactness and lighter weight
  • Fast blade stop – the blade stops in less than 10 seconds
  • Cutting depth up to 4-3/4" with 12" blades
  • Aluminum belt cover
  • Achieve even higher cutting speeds by using with customized Hilti blades

Applications

  • Laying paving – cutting curbstones and paving slabs to size
  • Masonry work – cutting bricks and blocks to size
  • Metalwork – cutting steel profiles, pipes and steel sheets
  • Construction work – cutting out openings in brick or concrete walls

For approval or certificate information, please see individual items.
