DSH 700-X 14" Gas cut-off saw

Still life image of the fourth generation hand held cutting saw DSH 700-X with SPX concrete blade.
Cropped application picture of DSH 700-X cutting metal pipe with SPX metal blade
DSH 700-X plastic pipe cutting.
DSH 700-X metal deck cutting.
DSH 700-X curbstone cutting with SPX univ. blade.
Still life image of the fourth generation hand held cutting saw DSH 700-X with SPX concrete blade.
Cropped application picture of DSH 700-X cutting metal pipe with SPX metal blade
DSH 700-X plastic pipe cutting.
DSH 700-X metal deck cutting.
DSH 700-X curbstone cutting with SPX univ. blade.

Versatile rear-handle gas saw (70cc) with auto-choke, for cutting up to 5" with 14" blades in concrete, masonry, and metal

  • Motor cylinder: 87 cm³
  • Rated power: 4.2 kW
  • Wet or dry operation: Wet and Dry

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From $2,085.00

Technical Data

Motor cylinder
87 cm³
Rated power
4.2 kW
Wet or dry operation
Wet and Dry
Dimensions (LxWxH)
31.8 x 10.3 x 17.1 mm
Fuel mixture
50:1 (2% oil)
A-weighted emission sound pressure level
100 dB (A) 1
Disc diameter
350 mm
Cutting depth
5 in
Triaxial vibration value for cutting concrete slab (ah)
5.2 m/s² 2
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see Operating Instruction for more details)

Documents

Features & Applications

Features

  • Our most versatile gas cut-off saw – now cuts with up to 20% more power and 30% lower emissions
  • Easy-start gas saw – unique auto-choke helps to make first-pull ignition the norm, and flooded engines virtually impossible
  • Durable build - reinforced metal blade guard with integrated water bow and belt cover with integrated wear ribs, for reduced maintenance and longer tool lifespans
  • Easy self-service maintenance – pre-tensioned belt and virtually unbreakable starter rope help to minimize the saw's maintenance downtime

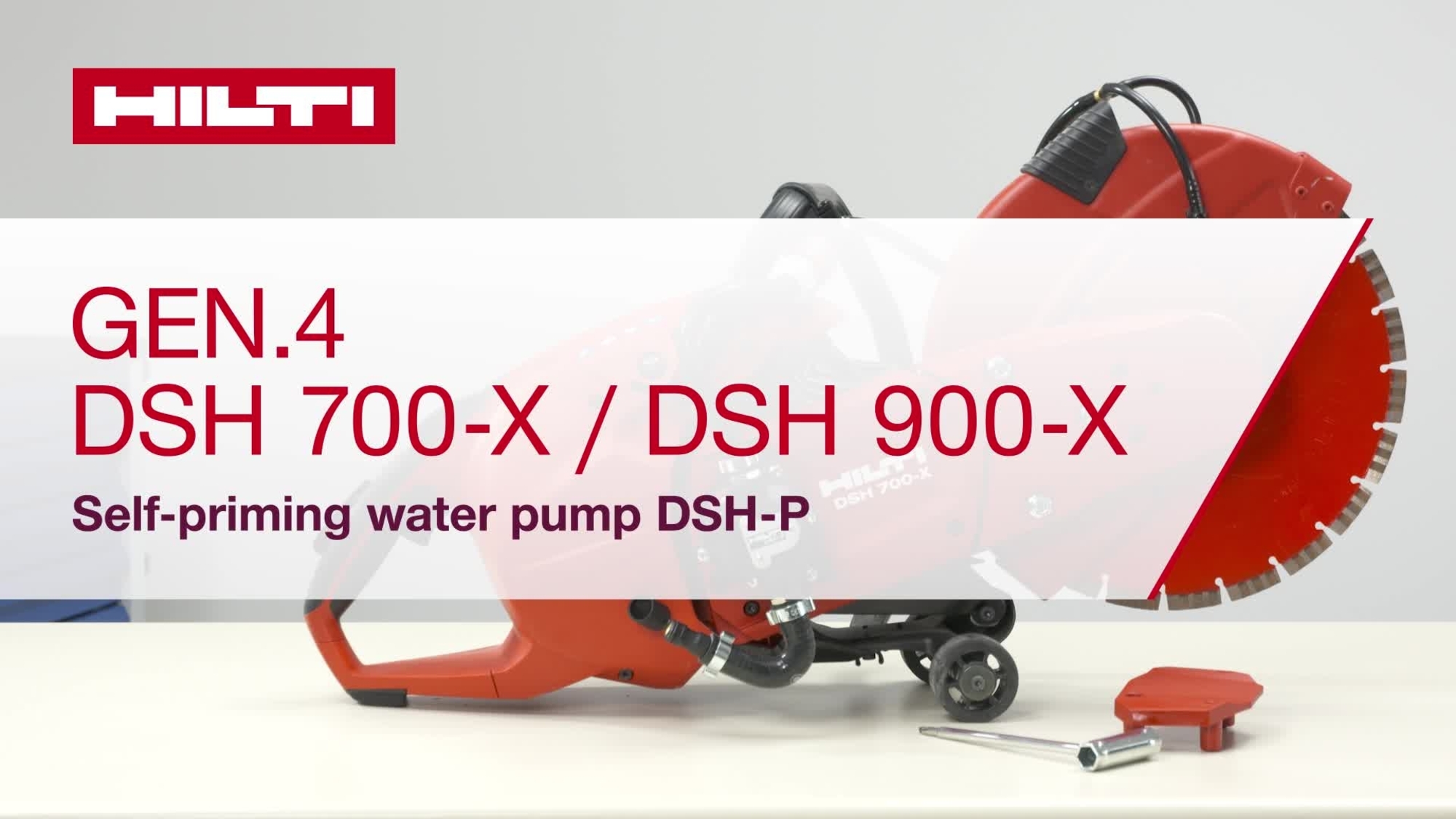

  • Compatible with the DSH-P water pump – feeds water to your gas saw from any source, no pressurization needed

Applications

  • Construction work: cutting out openings in brick or concrete walls
  • Metalwork: cutting steel profiles, pipes and steel sheets
  • Laying paving: cutting curbstones and paving slabs to size
  • Masonry work: cutting bricks and blocks to size
  • Floor construction: cutting expansion joints in fresh concrete

For approval or certificate information, please see individual items.
