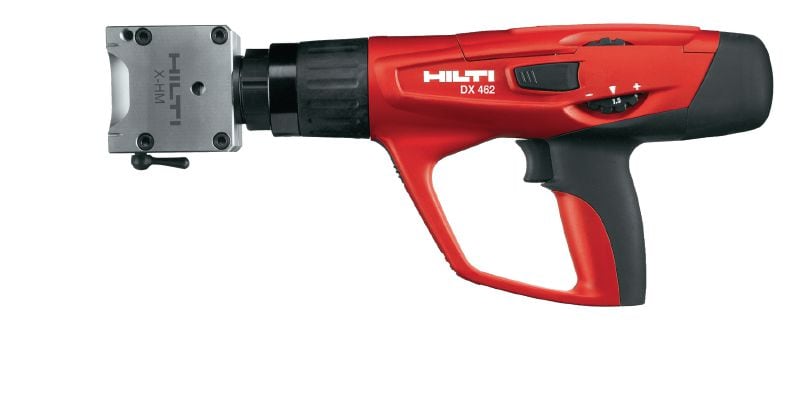

DX 462 HM Metal stamping tool

Powder-actuated tool DX 462-HM #376373

Configurator
Technical Data
Documents
Features & Applications
Related Products
DX 462-HM
Hot marking application tool, DX 462 HM tool
Hot marking application tool, DX 462 HM tool

Fully automatic, high-productivity, powder-actuated tool for marking on cold and hot metal surfaces

  • Dimensions (LxWxH): 21.5 x 2.2 x 6.5 in
  • Weight: 9.6 lb
  • Fastener Intake: Specialty

Customers also searched for powder actuated stamping tool or stamping tool for steel.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please log in or register to see your company prices.

Discounted net
$8,439.00
$8,439.00 / 1 Each

Technical Data

Dimensions (LxWxH)
21.5 x 2.2 x 6.5 in
Weight
9.6 lb
Fastener Intake
Specialty
Fastener length range
0 - 0 in
Cartridge type
.27 caliber short, 6.8/11 M10
Automatic piston return
Yes
Bluetooth
No
Hilti Connect
No
Power (max.)
362 J
Power regulation
Yes
Piston type
X-462-PM

Documents

Material safety datasheet
Operating Instruction
pdf Material safety datasheet Spray 66/300 ML (EN) [ 157.4 KB ]
pdf Material safety datasheet Spray 66/300 ML (FR) [ 202.2 KB ]

Features & Applications

Features

  • Total mobility and complete independence from electrical power supplies
  • Marking head can accommodate up to 10 characters (depending on character type) in any combination of letters and numbers

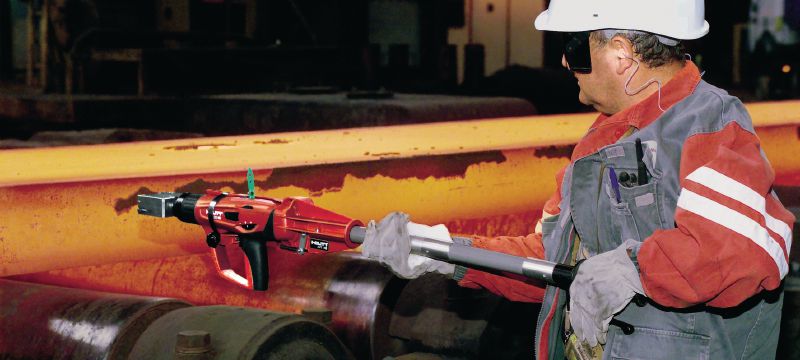

  • X-PT pole tool accessory allows the operator to mark red-hot material from a safer distance
  • Increased reliability with simple cleaning and servicing
  • A simple but secure locking mechanism ensures that the letters or numbers can be changed quickly and easily

Applications

  • Marking on hot metal surfaces with a temperature up to 800°C

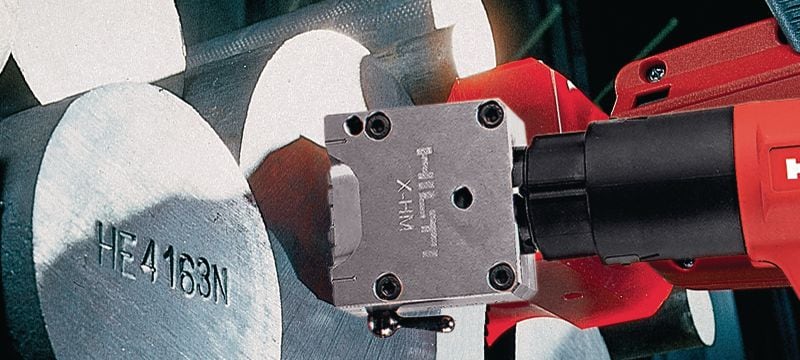

  • Marking on metal components for identification, traceability and quality control in steelworks, manufacturing plants, testing institutes, etc.
  • Marking on slabs, blooms, billets and ingots as well as light-, medium- or heavy-duty steel sections
  • Marking on metals with sharp, low-stress and mini-stress character types in different sizes
