DX 9-ENP Powder-actuated decking tool

Configurator
Technical Data
Documents
Features & Applications
Related Products

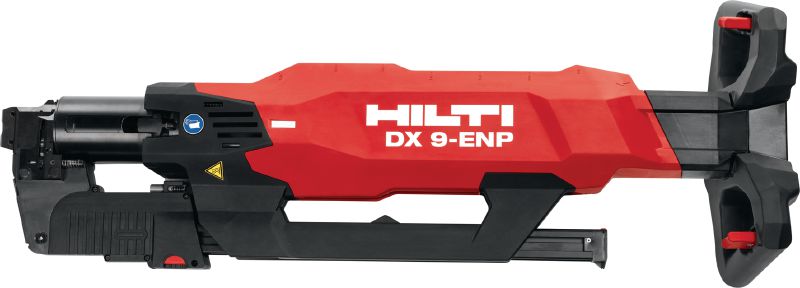

2D image of Hilti DX 9 ENP tool

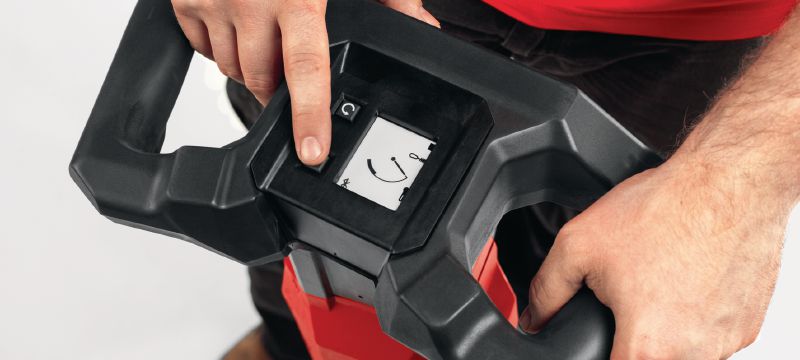

3D image of Hilti DX 9 tool showing service indicator usage

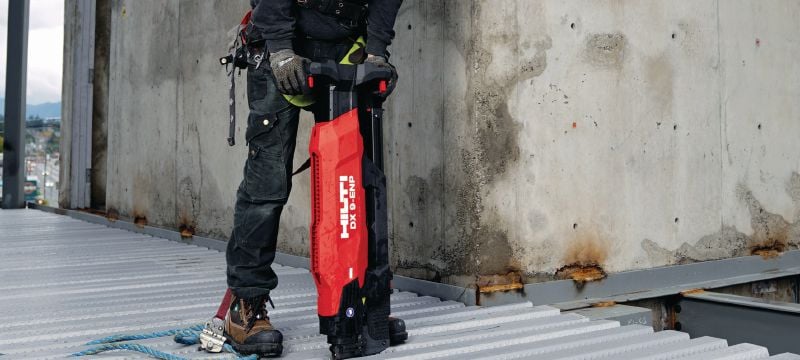

Form deck installation

Digitally enabled, fully automatic, high-productivity, stand-up powder-actuated nailer for fastening metal decks

  • Dimensions (LxWxH): 39.3 x 12.6 x 6.9 in
  • Weight: 26.5 lb
  • Fastener Intake: Collated

Customers also searched for Decking tool, Stand up decking tool or Deck tool.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please log in or register to see your company prices.

Discounted net
From $14,469.00

Technical Data

Dimensions (LxWxH)
39.3 x 12.6 x 6.9 in
Weight
26.5 lb
Fastener Intake
Collated
Fastener length range
0.75 - 0.98 in
Cartridge type
.27 caliber long, 6.8/18 M40
Automatic piston return
Yes
Bluetooth
Yes
Hilti Connect
Yes
Power (max.)
564 J
Power regulation
Yes
Piston type
X-9-ENP

Documents

Brochure
Material safety datasheet
Operating Instruction
pdf DX 9 Quick Start Guide - Supplement [ 17.4 MB ]
pdf Decking Application and Product Overview [ 5.6 MB ]

Features & Applications

Features

  • Revolutionary design – upright working position for high speed of use and long-term user comfort
  • Ergonomically designed handle to enhance user comfort
  • Adjustable power regulator – precise control for more reliable fastenings
  • Easy to clean and maintain on jobsites
  • Use-on-demand service tailored to meet your project needs

Applications

  • Fastening metal roof decks to steel structures with a minimum thickness of 6 mm (1/4") with X-ENP metal sheet nails for roofing
  • Fastening metal floor decks to steel structures with a minimum thickness of 6 mm (1/4") with X-ENP metal sheet nails for flooring

For approval or certificate information, please see individual items.
