Nuron

SF 8M-22 Cordless drill driver

Cordl. drill driver SF 8M-22 bulk #2434858

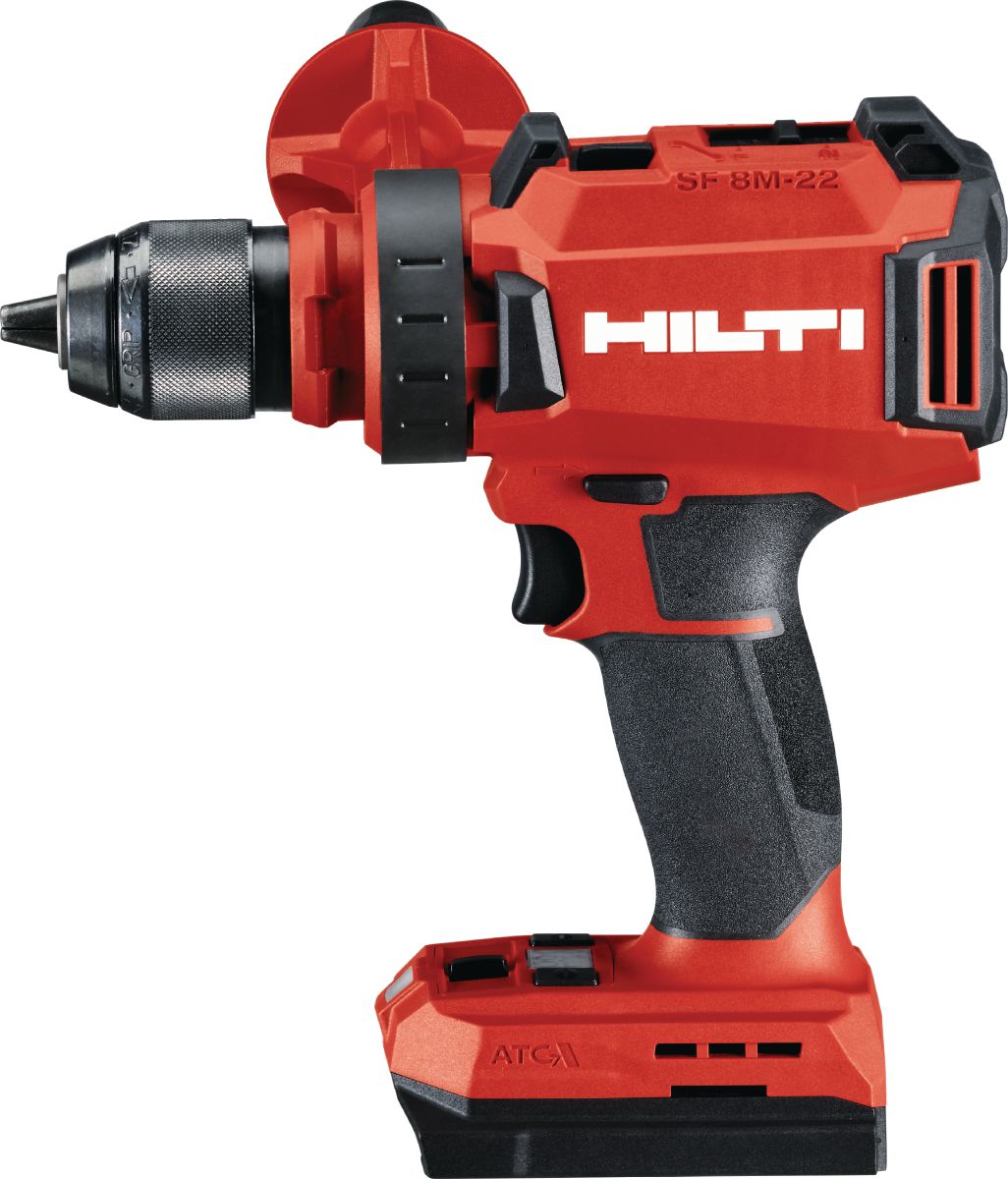

Still life image of the third generation cordless SF 8M-22 with side handle and universal chuck.
Cropped application picture of the cordless drill driver SF 8M-22
Cropped application picture of the cordless drill driver SF 8M-22
Cropped application picture of the cordless drill driver SF 8M-22

Ultimate cordless drill driver with interchangeable chucks and higher RPM for drilling, driving, and thread tapping in metal (Nuron battery platform)

  • Maximum torque (Soft / Hard Joint): 487 in-lb (soft joint), 664 in-lb (hard joint)
  • No load RPM: gear 1: 400 rpm; gear 2: 670 rpm; gear 3: 2100 rpm; gear 4: 3500 rpm
  • Chuck clamping range: 2 - 13 mm

Customers also searched for SF8, High Speed Metal Drill, SF 8M-22, Metal Drill or SF 8.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please log in or register to see your company prices.

Discounted net
$399.00
$399.00
/
1 Each

Technical Data

Maximum torque (Soft / Hard Joint)
487 in-lb (soft joint), 664 in-lb (hard joint)
No load RPM
gear 1: 400 rpm; gear 2: 670 rpm; gear 3: 2100 rpm; gear 4: 3500 rpm
Chuck clamping range
2 - 13 mm
Number of gears
4
Torque increments
15
Tool body weight
1.658 kg
Rated voltage
21.6 V

Documents

pdf Operating Instruction SF 8M-22 03, English, Spanish, French, Portuguese [ 1.3 MB ]

Features & Applications

Features

  • More flexibility and productivity – the interchangeable chuck design helps maximize versatility, with a new right-angle chuck and different chucks that can be swapped out in seconds (thread tapping M3-M16, self-tightening chuck, universal chucks)
  • Next-generation performance in metal – the higher 3500 RPM, soft joint torque (60Nm), and four speeds help the SF 8M-22 cordless drill driver handle demanding metal drilling and screwdriving with ease
  • Safer work environments - Active Torque Control (ATC) helps prevent the tool body from uncontrolled spinning if the drill bit sticks, and an LED work light in the base provides a clear view of your work area
  • Longer runtime - the powerful battery and brushless motor combine for more drilling and driving per charge at consistently high speeds
  • More peace of mind – the chuck is specialized for metal drilling, with a self-tightening function to help protect against drill bit slippage

Applications

  • Drilling in metal with HSS bits up to 20 mm (25/32") diameter
  • Drilling in sheet metal up to 3 mm (1/8") thick with step drill bits up to 40 mm (1-9/16") diameter
  • Drilling holes in metal using hole saws up to 102 mm (4")
  • Thread tapping up to size M16 (approx. 5/8") (square shank bits suitable with thread tap chucks)
  • Countersinking in metal up to 31 mm (1-7/32") diameter
