Nuron

TE 2-22 Cordless rotary hammer

Cordless Rotary Hammer TE 2-22 #2256700

Configurator
Technical Data
Documents
Features & Applications
Related Products
Services
TE 2-22 pistol grip rotary hammer without battery .
Drilling with cordless TE 2-22 pistol grip rotary hammer with NURON battery B22-85
Drywall installation dilling with cordless TE 2-22 pistol grip rotary hammer with NURON battery B22-85
Light duty installation dilling with cordless TE 2-22 pistol grip rotary hammer with NURON battery B22-85

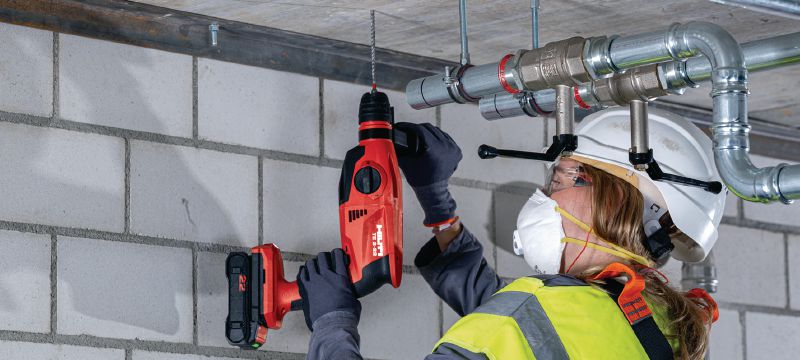

Drilling with cordless TE 2-22 pistol grip rotary hammer with NURON battery B22-85

Compact and light weight SDS Plus cordless rotary hammer with pistol grip for best maneuverability when drilling overhead (Nuron battery platform)

  • Weight according EPTA-Procedure 01/2003 without battery: 5.1 lb
  • Optimum Hammer drilling range: 5/32 - 15/32 in
  • Single impact energy: 1.1 ft-lbf

Customers also searched for cordless rotary hammer, cordless hammer drill, concrete hammer drill, SDS Plus rotary hammer or Nuron battery platform.

Customize your kit

Tool Body
Tool body with cardboard box Includes: 1x Hilti Grease 50ml
How many kits do you want to order?
You cannot see your company prices

Please log in or register to see your company prices.

Discounted net
$369.00

Technical Data

Weight according EPTA-Procedure 01/2003 without battery
5.1 lb
Optimum Hammer drilling range
5/32 - 15/32 in
Single impact energy
1.1 ft-lbf
Hammer drilling diameter range
5/32 - 7/8 in
Hammer drilling RPM
1090 rpm
Full hammering frequency
4860 impacts/minute
Functionality
Reverse mode, Working light LED
A-weighted emission sound power level
103 dB (A) 1
A-weighted emission sound pressure level
95 dB (A) 2
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)

Documents

Material safety datasheet
Operating Instruction
pdf Material safety datasheet Hilti Grease (EN) [ 229.3 KB ]
pdf Material safety datasheet Hilti Grease (FR) [ 238.6 KB ]

Features & Applications

Features

  • Unbeatable grip and agility – TE 2-22 is our lightest and slimmest cordless rotary hammer, with improved in-line pistol grip designed to help you work in cramped quarters without the muscle strain
  • Virtually dust-free drilling – when used with a Hilti DRS-D or DRS-S dust removal attachment or hollow drill bit and compatible Hilti vacuum cleaner
  • Safer work at heights – use the included belt hook and optional tool tether to free your hands without compromising on tool drop protection
  • Improved drilling precision – LED light provides better visibility of your work area, and the enhanced grip provides more comfortable control
  • On the Nuron battery platform – cordless tools without compromise thanks to longer-lasting batteries, power-saving drill bits and a range of services to keep you productive, today and tomorrow

Applications

  • Drilling into concrete and masonry, especially overhead or in tight spaces
  • Interior finishing – installing drywall track and suspended ceilings
  • Metal fabrication – fastening metal fixtures to concrete, such as handrails, staircases, sun blinds and safety barriers
  • Electrical and telecom – installing cables, switchgear, outlet boxes and lights
  • Any smaller drilling jobs, when cordless convenience and comfortable handling is more efficient overall than minimizing the time-per-fastening

Services

Hilti Tool Service

  • Product warranty against parts and manufacturing irregularities for 20 years
  • Service is free of charge up to 2 years, including wear & tear, pick-up and delivery
  • 1 or free, in and out of the repair center the same day or repair is free of charge
