Nuron special

TE 60-22 Cordless rotary hammer

Cordless Rotary Hammer TE 60-22 Case #2253099

Configurator
Technical Data
Documents
Features & Applications
Related Products
Services
TE 60-22(04) tool only
Drilling for rebar installation on reinforced concrete, with powerful SDS-Max combihammer, hollow-drill bit Safeset, vacuum cleaner.
Drilling in elevator shaft with powerful SDS-Max combihammer, with drop prevention tethering solution and dust removal DRS-D.
Rebar bushing application image using TE 60-22 and SL 6-22.

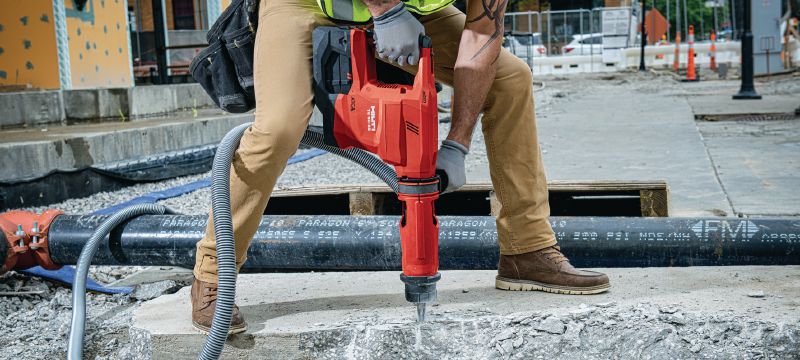

Concrete demolition with TE 60-22 cordless combihammer, dust removal system and backpack vacuum cleaner

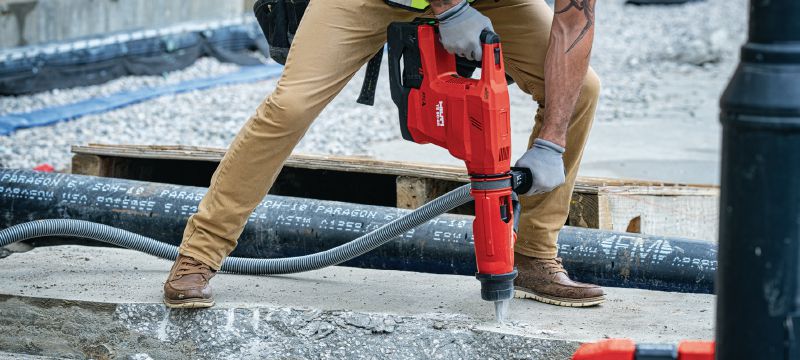

Concrete demolition with TE 60-22 cordless combihammer, dust removal system and backpack vacuum cleaner
Drilling for socket opening on grey-brick masonry, with powerful SDS-Max combihammer, percussion core bit, dust removal system and vacuum cleaner
Removing tiles with powerful SDS-Max combihammer TE 60-22 with flat chisel and DRS-Y
Breaking concrete with powerful SDS-Max combihammer TE 60-22 with pointed chisel and DRS-Y.

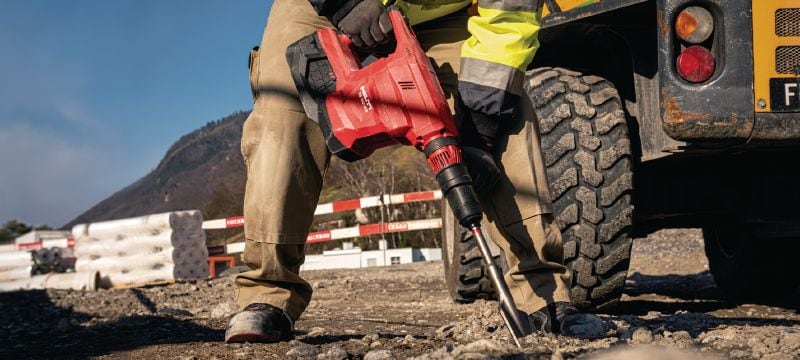

Digging compacted ground with powerful fourth generation SDS-Max combihammer and clay spade chisel.

Powerful and cordless SDS Max (TE-Y) rotary hammer with Active Vibration Reduction and Active Torque Control for heavy-duty concrete drilling and chiseling (Nuron)

  • Weight according EPTA-Procedure 01/2003 without battery: 13.9 lb
  • Optimum Hammer drilling range: 23/32 - 1-9/16 in
  • Hammer drilling diameter range: 15/32 - 3-15/16 in

Customers also searched for cordless rotary hammer, cordless hammer drill, concrete hammer drill, SDS Max rotary hammer or Nuron battery platform.

Customize your kit

Tool Body
Tool body with case Includes: 1x Hilti Grease 50ml, 1x Tool case TE 60-22 assy
How many kits do you want to order?
You cannot see your company prices

Please log in or register to see your company prices.

Discounted net
$1,529.00

Technical Data

Weight according EPTA-Procedure 01/2003 without battery
13.9 lb
Optimum Hammer drilling range
23/32 - 1-9/16 in
Hammer drilling diameter range
15/32 - 3-15/16 in
Rated voltage
21.6 V
Single impact energy
6 ft-lbf
Hammer drilling RPM
340 rpm
Full hammering frequency
3300 impacts/minute
Functionality
Active Torque Control (ATC), Active Vibration Reduction (AVR), Hammer drilling, Chiseling, Power reduction
Triaxial vibration for chiseling into concrete
9.1 m/s² 1
Dust removal system available
TE DRS-Y, TE DRS-D
A-weighted emission sound pressure level
98 dB (A) 2
A-weighted emission sound power level
106 dB (A) 3
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)
  3. According to the applicable product standard (see the Operating Instruction for more details)

Documents

Material safety datasheet
Operating Instruction
pdf Material safety datasheet Hilti Grease (EN) [ 229.3 KB ]
pdf Material safety datasheet Hilti Grease (FR) [ 238.6 KB ]

Features & Applications

Features

  • Maximized working time per charge – brushless motor and more efficient Nuron batteries help you get up to 3x more battery run time
  • Upgraded safety features – includes Active Torque Control (ATC) to better protect you from uncontrolled spinning if the bit jams, and Active Vibration Reduction (AVR) for increased shielding from vibration
  • Longer trigger time – minimal vibration so you can work with fewer interruptions
  • On the Nuron battery platform – cordless rotary hammers without compromise thanks to longer-lasting batteries, power-saving drill bits and a range of services to keep you productive, today and tomorrow
  • Outsized performance – weighing in at just 17.9 lbs (inc. B 22-255 battery), TE 60-22 has the drilling and chipping power you’d expect from a much heavier rotary hammer

Applications

  • Extremely versatile rotary hammer drill for heavy-duty concrete construction work as well as building services installation
  • Drilling holes for pipe penetrations or electrical outlets through concrete and masonry
  • Chiseling openings and channels in concrete or masonry
  • Digging holes in earth – SDS Max clay spade available separately
  • Drilling holes for post-installed rebar connections in concrete (recommended diameter range 7/8” to 1-5/8”)

Services

Hilti Tool Service

  • Product warranty against parts and manufacturing irregularities for 20 years
  • Service is free of charge up to 2 years, including wear & tear, pick-up and delivery
  • 1 or free, in and out of the repair center the same day or repair is free of charge
More information about Tool Services

Fleet Management

  • Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
  • High-performing tools and latest technology help to increase jobsite productivity.
  • Loan tools during repair to reduce downtime.
  • Temporary tools for peak times and special applications help to reduce investments.
  • Theft coverage helps to reduce financial risk and unexpected expenses.
More information about Fleet Management
