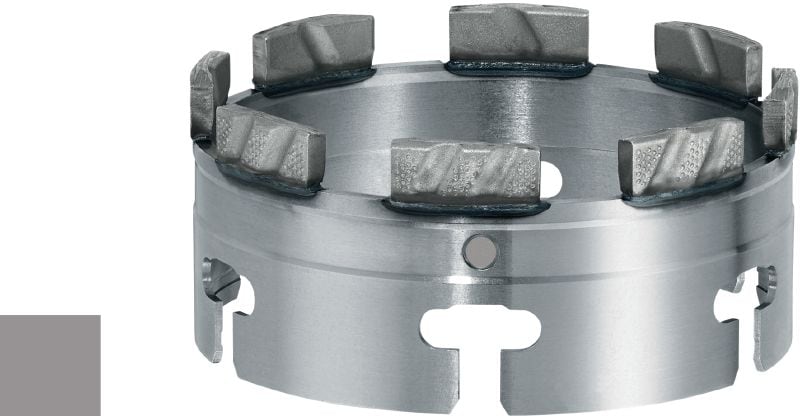

SPX-L X-Change module (inch)
Ultimate X-Change module for coring in all types of concrete
- For use with: DD 120, DD 130, DD 150-U, DD 160
- Base materials: Concrete
- Drilling Mode: Rig-mounted
ultimate
Choose options
Diameter
- 2 in
- 2-1/4 in
- 2-1/2 in
- 2-3/4 in
- 3 in
- 3-1/4 in
- 3-1/2 in
- 4 in
- 4-1/4 in
- 4-1/2 in
- 5 in
- 5-1/2 in
- 6 in
- 6-1/4 in
- 6-1/2 in
- 7 in
- 8 in
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
From $268.00
Technical Data
For use with
DD 120, DD 130, DD 150-U, DD 160
Base materials
Concrete
Drilling Mode
Rig-mounted
Wet or dry operation
Wet
Laser welded segments
Yes
Product Class
Ultimate
Documents
Features & Applications
Features
- Hilti Equidist technology (1 3/8" diameter and above) – precisely positioned diamonds for unmatched drilling performance and constant drilling speeds over the entire life of the core bit

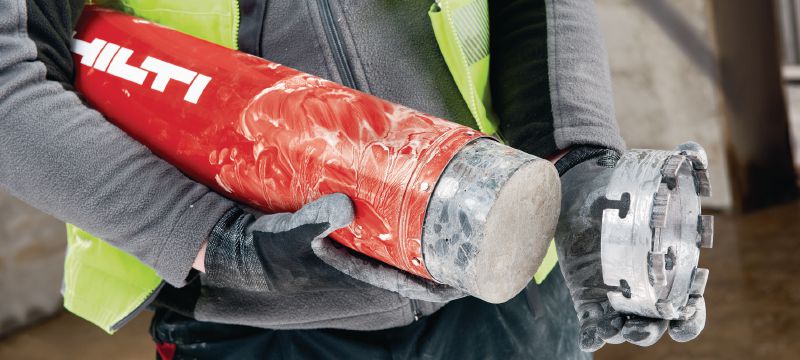

- Unique Hilti X-Change module system (2" to 8" diameter) enables easy core removal, fast stuck core bit recovery and on-site retipping using just a flat-tip screwdriver
- Designed for the most challenging conditions, the core bit excels in concrete with a high rebar content

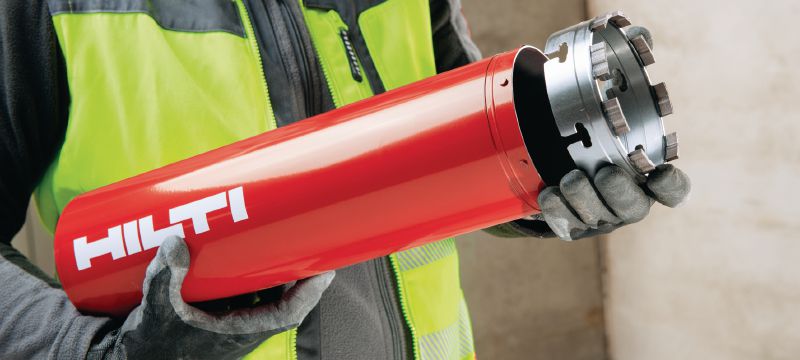

- Save significant space and weight by replacing traditional core bits with a single barrel and multiple modules (X-Change module)
- The X-Change barrel can be used for the life of multiple modules
Applications
- Rig-based wet coring in all types of concrete
For approval or certificate information, please see individual items.
