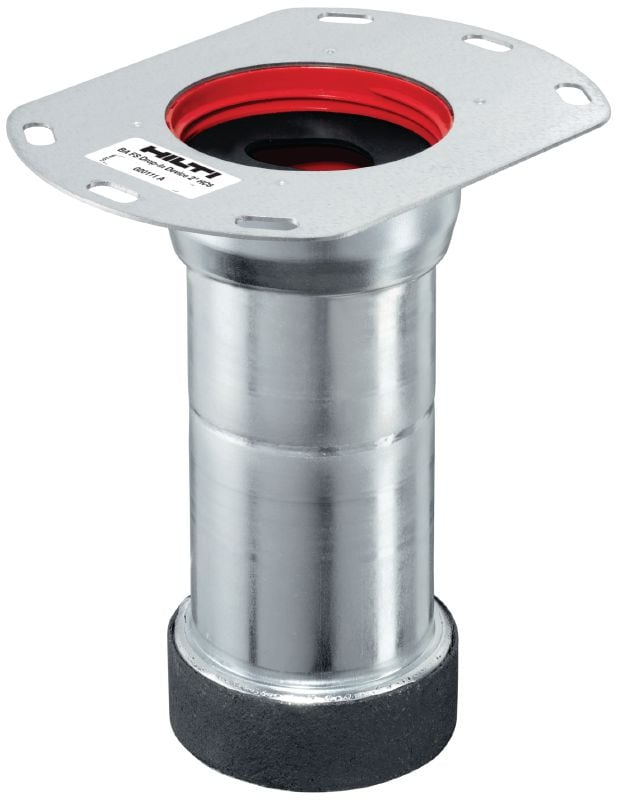

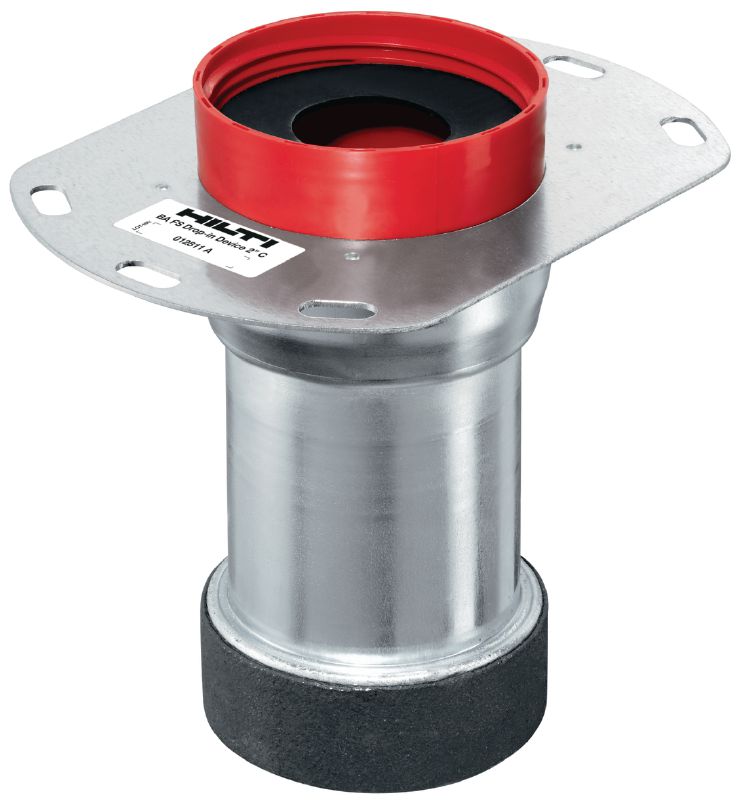

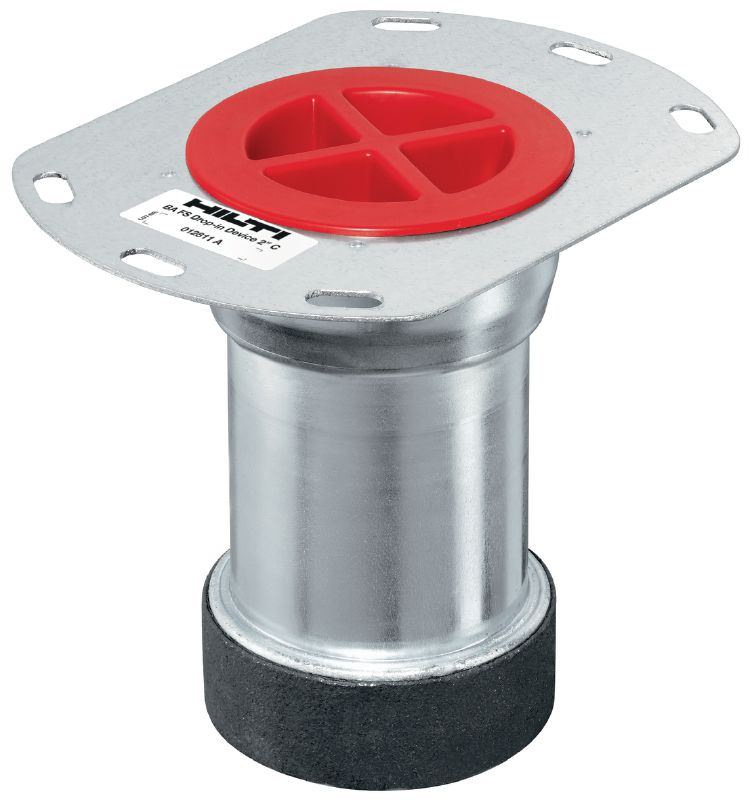

CFS-DID Drop-in device

L047387.tif
L047385.tif
CFS-DID 2" HC8
CFS-DID_Concrete-Floor.eps

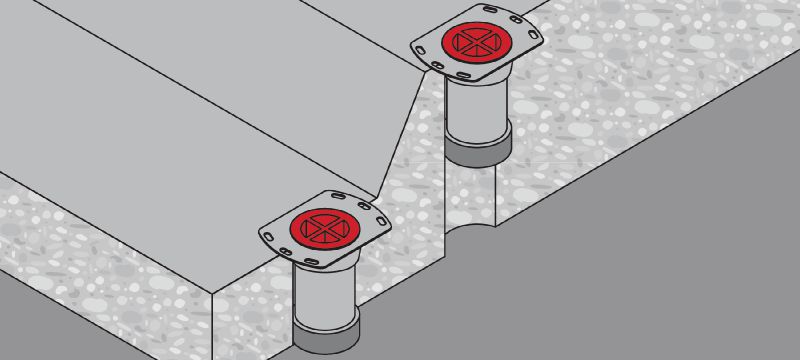

CFS-DID_Hollow-Core.eps

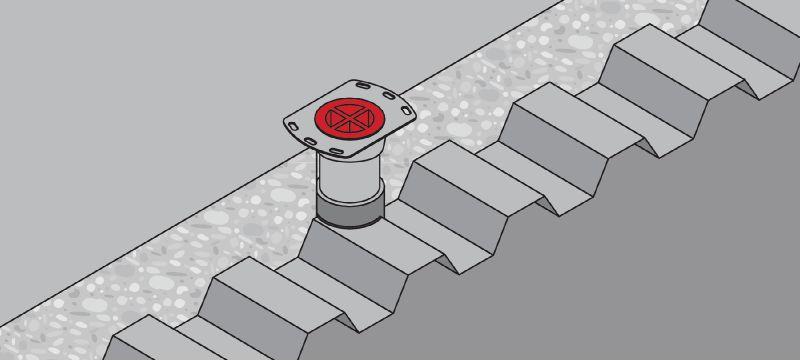

CFS-DID_Metal-Deck.eps

One-step firestop cast-in solution for pipe floor penetrations

  • VOC Emission (LEED): low-emitting material in LEEDv4 and 4.1 Rating System
  • LEED VOC: 0.19 g/l
  • W-rating: Yes, with W-rating module
ultimate

Customers also searched for drop-in device, DID or firestop.

Choose options

Device Size
  • 2 in
  • 3 in
  • 4 in
  • 6 in
Base materials
  • Concrete over metal deck
Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please log in or register to see your company prices.

Discounted net
From $124.00

Technical Data

VOC Emission (LEED)
low-emitting material in LEEDv4 and 4.1 Rating System
LEED VOC
0.19 g/l
W-rating
Yes, with W-rating module
Application temperature range
-5 - 50 °C
Product Class
Ultimate

Documents

pdf VOC_CDPH_CFS-DID_EN, English [ 198.9 KB ]
pdf VOC_SCAQMD and EPA24_CFS-DID_EN, English [ 381.5 KB ]

Features & Applications

Features

  • Quick and simple installation – designed to increase your productivity and reduce labor costs
  • Peace of mind – cast-in devices remove scope for errors compared to traditional methods, leading to more reliable firestopping of vertical penetrations
  • All-in-one solution for renovation, retrofit and new construction
  • Versatile – suitable for multiple base materials (concrete, hollow core and metal deck)

Applications

  • One-step firestop solution for plastic, metal and insulated metal pipes through cored or sleeved holes
  • For use in concrete, hollow core and concrete-over metal deck slab thicknesses from 2-1/2" to 12-1/2"
  • Suitable for use in renovation as well as new construction

For approval or certificate information, please see individual items.
