Nuron

PR 400-22 Dual slope rotary laser level

Configurator
Technical Data
Documents
Features & Applications
Related Products

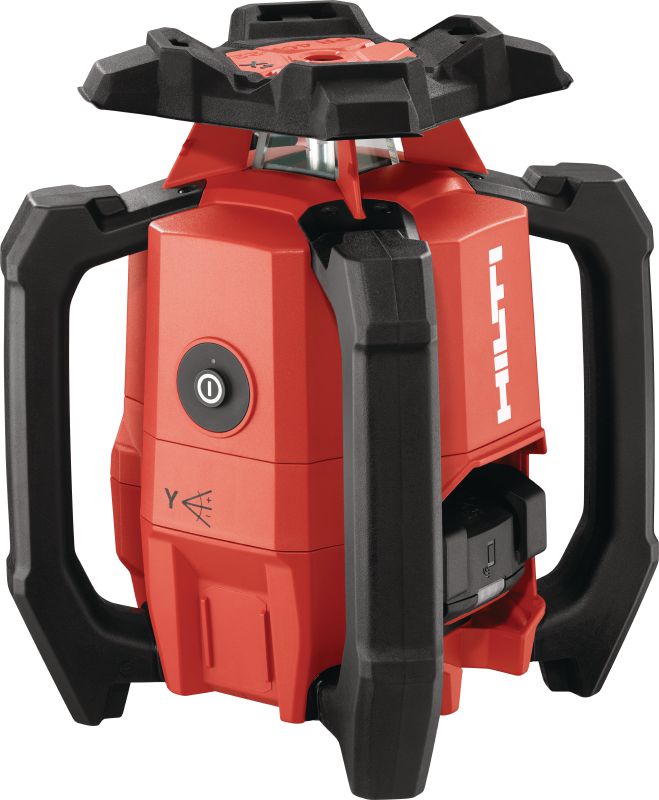

3D still life picture of the rotating laser PR 400-22 with battery B 22-85

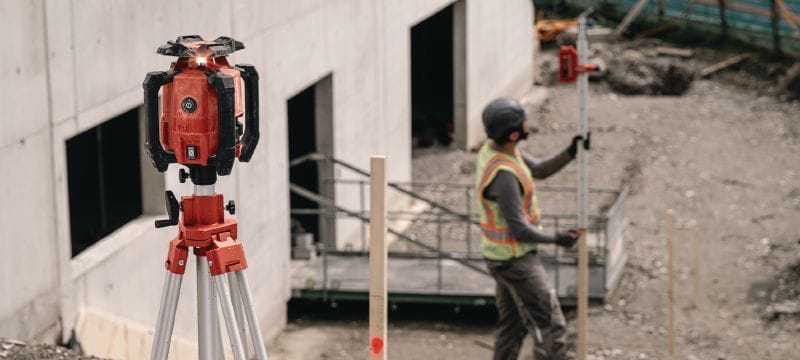

Cropped application picture of the rotating lasers PR 400-22, PR 40-22. Formwork wall alignment.
Cropped application picture of the rotating lasers PR 40-22. Batter board application.
Cropped application picture of the rotating lasers PR 400-22. Concrete pouring levelling.
Cropped application picture of the rotating lasers PR 400-22. Set slope.

Robust exterior rotary laser level with automatic functions for long-distance leveling, aligning, squaring, and dual slope capabilities (Nuron battery platform)

  • Accuracy: ±1/16 in at 100 ft
  • Laser class: < 4.85 mW, 620-690 nm, Class 2 (EN 60825), Class II (FDA CFR 21 art. 1040)
  • Self leveling range at room temperature: ±5(±8.7%) °

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please log in or register to see your company prices.

Discounted net
From $3,359.00

Technical Data

Accuracy
±1/16 in at 100 ft
Laser class
< 4.85 mW, 620-690 nm, Class 2 (EN 60825), Class II (FDA CFR 21 art. 1040)
Self leveling range at room temperature
±5(±8.7%) °
Inclination setting X-axis - range
-15 - 8.6 %
Inclination setting Y-axis - range
-8.6 - 8.6 %
Rotation speed
300, 600, 1000 rpm
IP protection class
IP 66 (EN 60529) - battery compartment excluded
Operating temperature range
-20 - 50 °C
Maximum operating time
35 h

Documents

Approval document
Operating Instruction
Material safety datasheet
Battery Recycling Information
pdf PR_400_Quickguide [ 1.1 MB ]

Features & Applications

Features

  • Easy to use – one button design enables one-person operation, allowing you to set automatic functions within 300m (diameter)
  • 2-in-1 laser remote/receiver – universal PRA 400 detects rotating laser beams up to 800m, displays digital offset values, and controls automatic functions of your rotary laser, helping you complete advanced layouts
  • Faster workflows – automatic vertical alignment, digital dual slope entry, and check slope features help simplify and speed up your layout applications
  • Durable and drop-resistant – new aluminum core, internal dampers, shock-absorbing head/handles, and IP66 rating to help maintain laser accuracy in rough jobsite conditions
  • Smarter features with Nuron – smart asset tracking, battery life indication, and all on one battery platform help keep your tool park streamlined and cost-efficient

Applications

  • Horizontal leveling – formwork, concrete pours, excavation, height transfer etc.
  • Vertical aligning – transferring building lines, aligning columns, façades, vertical formwork, etc.
  • Dual slope / grading for ramps, parking lots, and pipes

For approval or certificate information, please see individual items.
