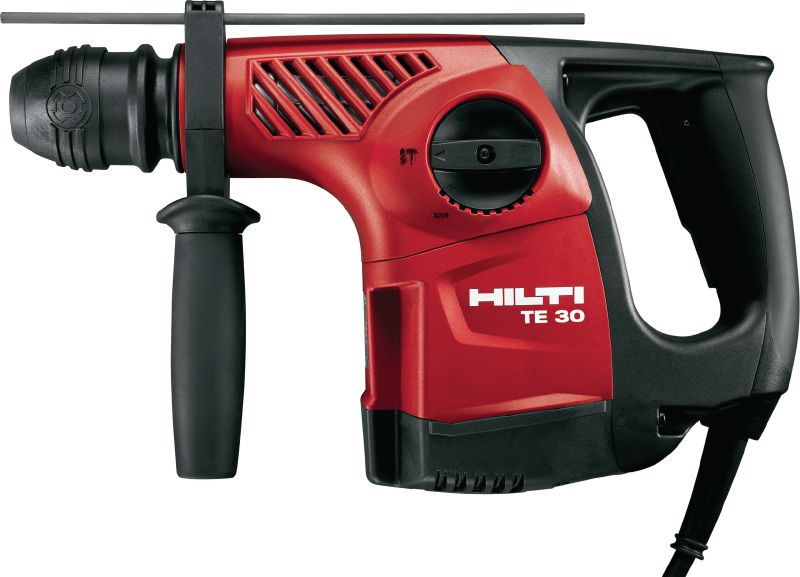

TE 30 Rotary hammer
Powerful SDS Plus (TE-C) rotary hammer for heavy-duty concrete drilling
- Weight according EPTA-Procedure 01/2003 without battery: 8.8 lb
- Optimum Hammer drilling range: 13/32 - 25/32 in
- Single impact energy: 2.4 ft-lbf
Technical Data
Weight according EPTA-Procedure 01/2003 without battery
8.8 lb
Optimum Hammer drilling range
13/32 - 25/32 in
Single impact energy
2.4 ft-lbf
Working mode
Hammer drilling, Drilling
Hammer drilling diameter range
3/16 - 1-3/32 in
Hammer drilling RPM
750 rpm
Full hammering frequency
4080 impacts/minute
Functionality
Removable chuck, Reverse mode, Depth gauge
Triaxial vibration value for hammer drilling into concrete (ah,HD)
16.5 m/s² 1
Triaxial vibration for chiseling into concrete
16.5 m/s² 2
A-weighted emission sound pressure level
90 dB (A) 3
Dimensions (LxWxH)
14.1 x 3.7 x 8.4 mm
- According to the applicable product standard (see the Operating Instruction for more details)
- According to the applicable product standard (see the Operating Instruction for more details)
- According to the applicable product standard (see the Operating Instruction for more details)
Documents
Features & Applications
Features
- Exceptionally high power-to-weight ratio
- Superior working comfort thanks to perfect balance, low weight and compact design
- Ruggedly built from high-grade materials and components so the tool lasts much longer
- Quick-change chucks – changing bits is fast and tool-free
- OSHA 1926.1153 Table 1 compliant when used with the TE DRS-D dust removal system and a Hilti vacuum cleaner
Applications

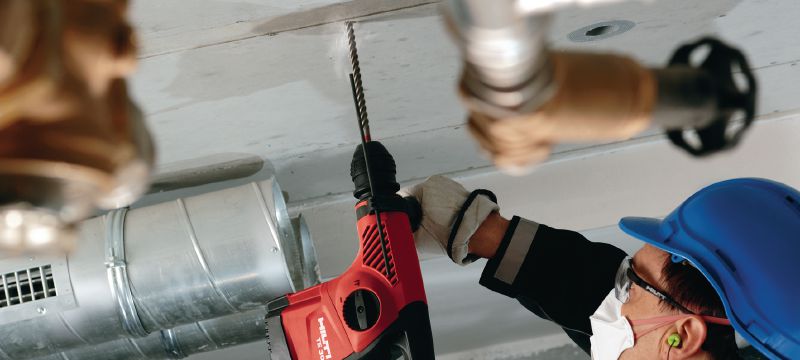

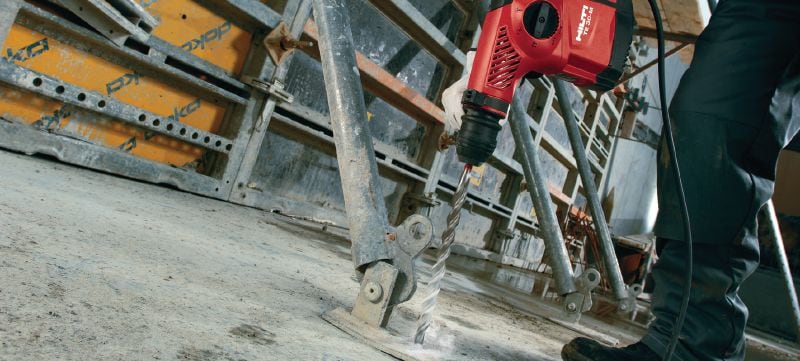

- Drilling anchor holes and through-holes in concrete and masonry, diameter range 4-28 mm, recommended range 8-20 mm
- Drilling in wood using bits 10-35 mm in diameter
- Drilling in wood and metal using the keyless chuck and drill bits with smooth shank up to 13 mm diameter
- Drilling in wood and metal with bits with smooth shank up to 13 mm diameter using the quick-release chuck
- Driving anchor screws and concrete screw anchors
For approval or certificate information, please see individual items.
Services
Hilti Tool Service
- 1 or free, in and out of the repair center the same day or repair is free of charge
- Service is free of charge up to 2 years, including wear & tear, pick-up and delivery
- Product warranty against parts and manufacturing irregularities for 20 years
- No registration or proof of purchase ever required
Fleet Management
- Individual labels and online visibility provide tool fleet transparency.
- Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
- Loan tools during repair to reduce downtime.
- Theft coverage helps to reduce financial risk and unexpected expenses.
