TE-CX (SDS Plus) Imperial hammer drill bit set

Configurator
Technical Data
Features & Applications
Related Products

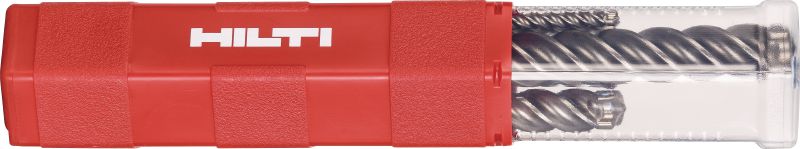

TE-CX SET M4 6 PK horizontal, multi pack, TE-CX, Bit pack, three pack, 3 pack
14484.tif
31095.tif
31096.tif
TE 30-22 SDS-Plus with B22 8.0 Ah battery floor drilling with TE-CX for formwork fastening
Concrete drilling with safe and high performing rotary hammer TE 6-22 and TE DRS-4/6
Concrete hammer drilling with SDS plus (TE C) rotary hammer TE 4-22 and TE DRS-4/6 with NURON battery B22-85

Ultimate SDS Plus (TE-C) hammer drill bits sets with different bit diameters and lengths (imperial)

  • Connection end: TE-C (SDS Plus)
  • Base material: Reinforced concrete, Concrete, Brick, Masonry
  • Working mode: Hammer drilling

Customers also searched for SDS plus, hammer drill bit, concrete drill bit, masonry drill bit or SDS plus bits.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please log in or register to see your company prices.

Discounted net
From $201.00

Technical Data

Connection end
TE-C (SDS Plus)
Base material
Reinforced concrete, Concrete, Brick, Masonry
Working mode
Hammer drilling
Head shape
Multi Cutter
Head material composition
Tungsten carbide
Number of cutting edges
4

Features & Applications

Features

  • New solid carbide head has high wear-resistance and makes more precise holes for anchor setting – up to 30% more lifetime than other SDS Plus drill bits
  • Installation of all HKD anchors with embedment depth above 30 mm
  • Quadruple helix and optimum head geometry for consistently fast drilling speed over the entire life of the drill bit
  • Indicator mark – the bit is suitable for setting anchors as long as this mark is visible
  • In the unlikely event of breakage, the drill bit will be considered for replacement as long as the wear mark on the helix is still visible

Applications

  • Drilling holes for metal anchors in reinforced and unreinforced concrete
  • Drilling holes for post-installed rebar connections
  • Drilling drainage holes for drying out buildings
  • Drilling through-holes for pipes and cables

For approval or certificate information, please see individual items.
