Anchor Design Center

Resources for anchoring applications

Designers, specifiers and contractors trust Hilti to consistently deliver some of the industry’s leading mechanical and chemical anchoring systems. That’s because no other manufacturer combines forward-thinking product development with decades of real-life feedback and experience from the jobsite. It means every mechanical anchor, removable screw anchor and adhesive anchor comes with confidence, security and trust.

Anchor design applications

KWIK-X DUAL ACTION ANCHOR

Simplicity of a mechanical anchor with high capacity performance of an adhesive

Save time on the jobsite and help minimize the risk of installer error with the Kwik-X system, comprised of the Kwik-HUS Capsule (KHC) and Kwik HUS-EZ screw anchor, Kwik-X is the only Dual Action system on the market.

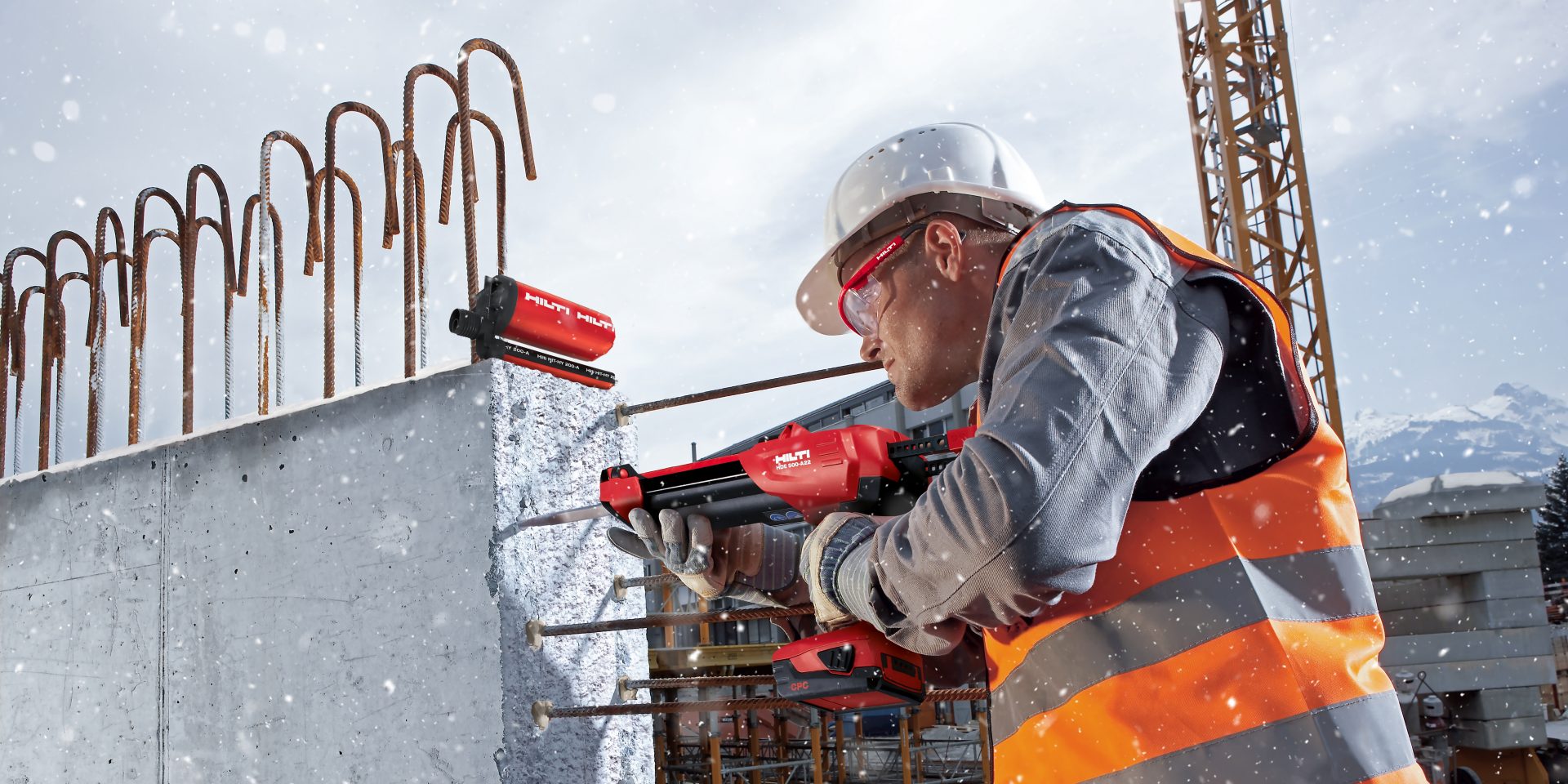

Construction worker using Hilti SafeSet installation method with VC 140-2-22 "vac-pack" vacuum and TE 60-22 cordless rotary hammer. HDE 500-22 cordless adhesive dispenser, HIT-RE 100 adhesive anchor

Improve anchor installation

Set anchors easier, faster and safer with the next generation Hilti SafeSet system

Save up to 60% on installation time by eliminating hole cleaning with the VC 140 “vac pack” and a Hilti Hollow Drill Bit—the only system designed to work in damp concrete without load reduction.

Take the guess work out of proper mortar injection with the HDE 500 Smart Dispenser that communicates the proper dispensing dosage and lets you know when a replacement is needed.

Additional Resources

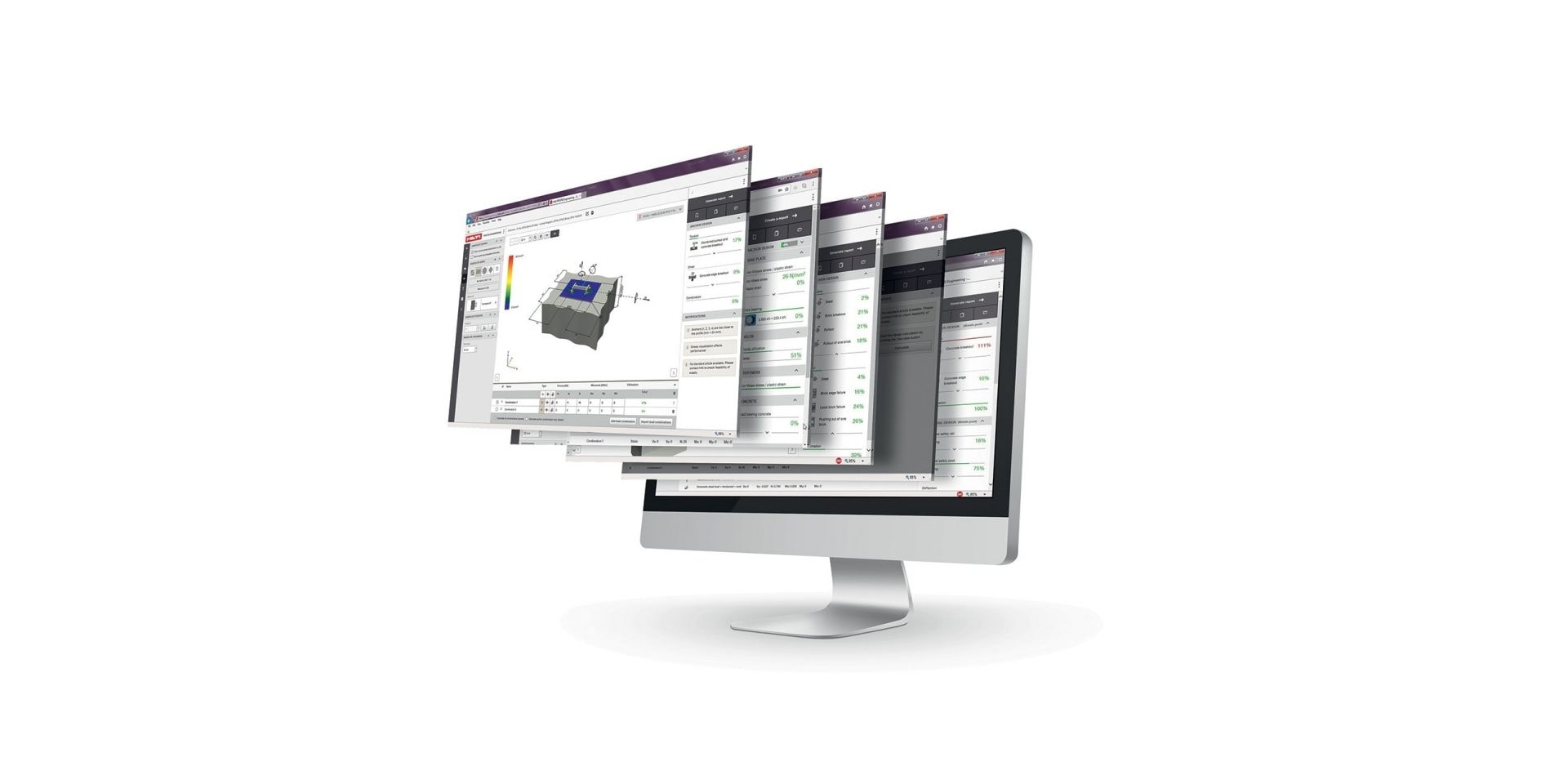

profis engineering desktop computer

PROFIS Engineering

Our cloud-based anchor design software enables automatic and advanced calculating, easy specifying and integrated BIM modeling - increasing productivity and improving value.

Learn more about PROFIS Engineering

Technical data

Our Product Technical Guides include technical data for our complete portfolio of anchoring products for concrete, masonry and gypsum anchoring applications. Source product load capacity tables and other design information to meet your design requirements.

View product technical guides

Product approvals and reports

Download the latest product approvals and other qualification documents by building code, city, state or industry.

Download product approvals

SPECS / CAD Details

Help ensure your design is properly documented. Incorporate Hilti anchor, rebar, firestop, decking, modular systems and direct fastening products into your designs with our sample specifications and typical details.

See specifications and CAD details

Engineering Center

The Engineering Center is an online community offering continuing education credits and expert advice from top engineering professionals.

Visit the Engineering Center
