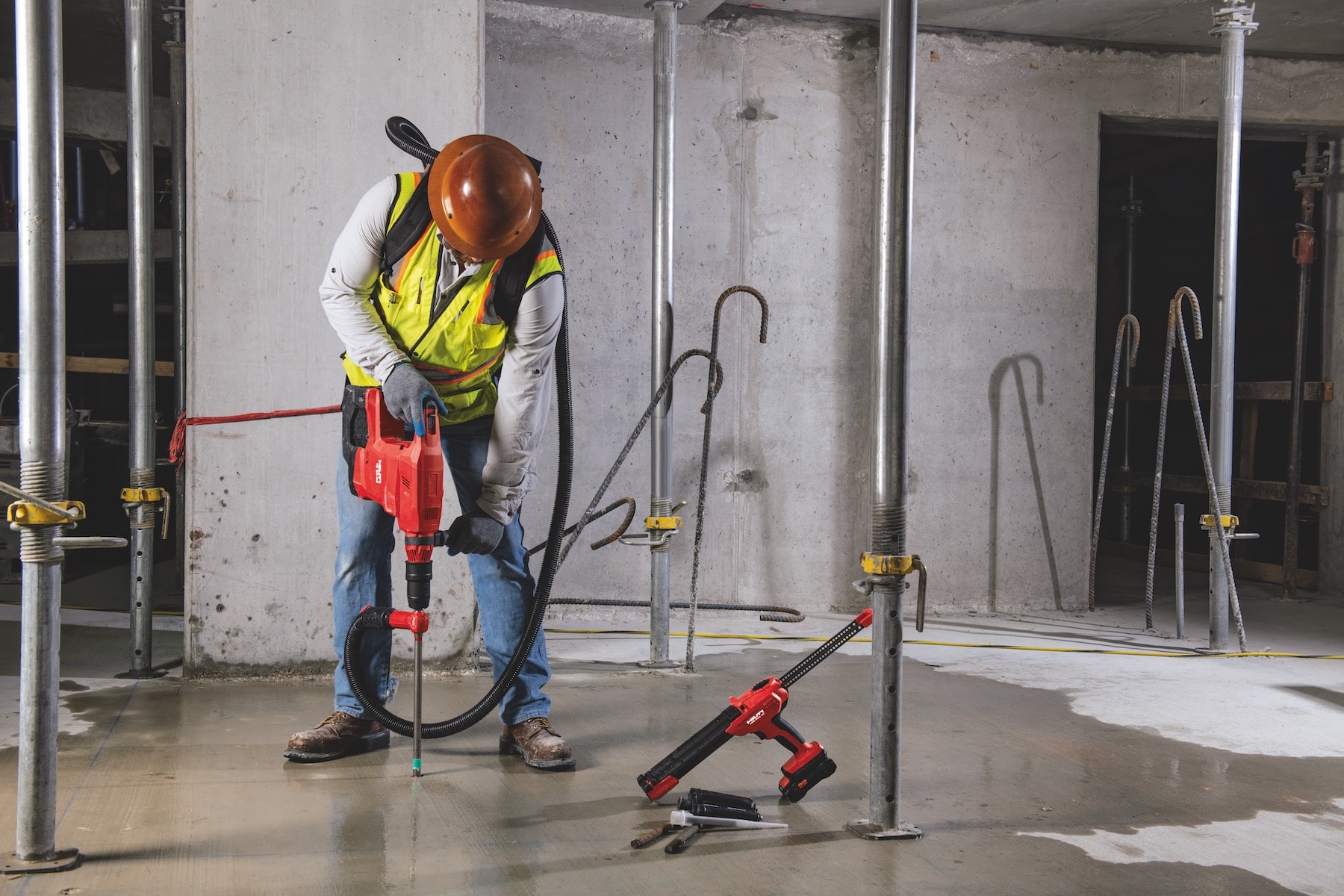

Construction worker using Hilti SafeSet installation method with VC 140-2-22 "vac-pack" vacuum and TE 60-22 cordless rotary hammer. HDE 500-22 cordless adhesive dispenser, HIT-RE 100 adhesive anchor

SET YOUR ANCHORS EASIER, FASTER AND SAFER

The next generation of the Hilti SafeSet system helps eliminate steps during anchor installation

Make the toughest of jobsite conditions work for you. Experience the perks of the first and fully cordless anchor setting system that helps ensure faster and more reliable anchor installation every time.

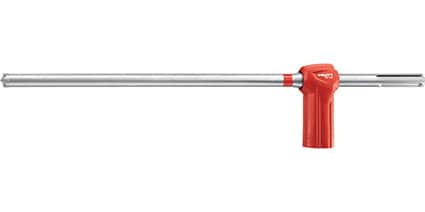

Save up to 60% on installation time by eliminating hole cleaning with the VC 140 “vac pack” and a Hilti Hollow Drill Bit—the only system designed to work in damp concrete without load reduction.

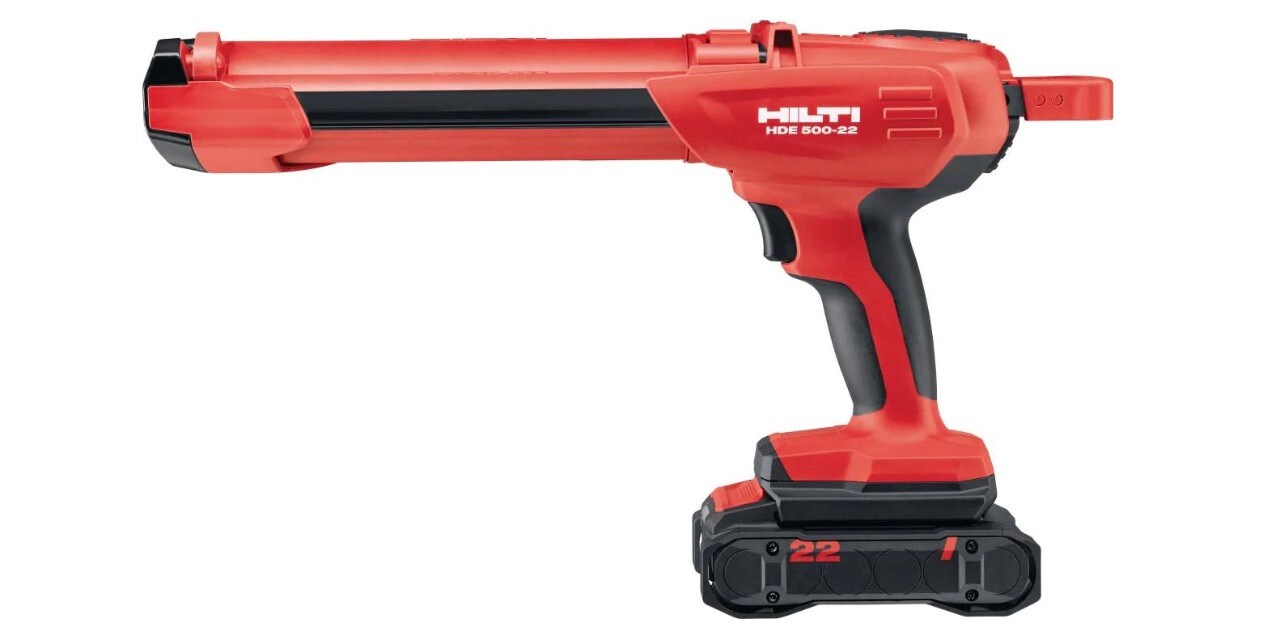

Take the guess work out of proper mortar injection with the HDE 500 Smart Dispenser that communicates the proper dispensing dosage and lets you know when a replacement is needed.

In other words, the SafeSet system is a faster, easier and safer way to set anchors.

SHOP SAFESET PRODUCTS

Why choose Hilti SafeSet

Save time

Conventional adhesive anchor installation is performed with six manual operations, but the SafeSet system streamlines the process by cleaning holes as you drill them. With SafeSet, your installation time is reduced by at least 36 minutes per hour—up to 60%.

No cleaning Improved performance Increased safety icon

Improve performance

Up to 70% of performance is lost when holes are not properly cleaned. Harmful lingering silica dust weakens the hold, which considerably reduces the capacity of your anchors and has the potential to invade the lungs. Thanks to SafeSet's clean-as-you-go design, concrete is drilled and anchors are installed virtually dust-free.

Save money

The new HDE 500 Smart was developed to bring precision to mortar injection – that means proper mixing, initial discard and dosing. All of these new functionalities result in less mortar waste – up to 20% savings on expensive injectable mortars.

All-weather

The Hilti SafeSet system is the only dust-removal system on the market designed to work in damp concrete without load reduction to bond capacity, eliminating the need for re-design when tough jobsite conditions arise. Weather conditions that previously had the power to impact your productivity suddenly become afterthoughts.

Hilti SafeSet vs. the conventional method

Safeset Method

The SafeSet system is a proven way to automatically clean the hole as you drill into concrete. When used correctly, SafeSet can help save on installation time while limiting the operator's exposure to silica dust.

What are the steps?

Drill and hole clean in one step
Auto discard to mix properly with Smart HDE 500-22 Dispenser
Dispense chemical adhesive
Insert the anchor

What do you need?

Conventional Method

The conventional, manual method can be used with epoxy and hybrid chemical anchors. With multiple steps (blow twice, brush twice, blow twice), the process can be time consuming, harmful and leave room for error.
