Rebar Design Center

Hilti products and solutions to help solve the toughest post-installed rebar challenges

Designing post-installed rebar using the development and splice provisions of ACI 318 Chapter 12 and Chapter 21 is not the same as designing post-installed rebar using the anchoring provisions of ACI 318 Appendix D.

Since the bar is being installed at deeper embedment and being used to develop lengths for seismic design, shear dowels and starter bars as well as tension for compression lap splices, reinforcing bar theory must be applied and adhesive anchor systems must be qualified for recognition and use under the 2015 IBC before being used for reinforcing bar installation.

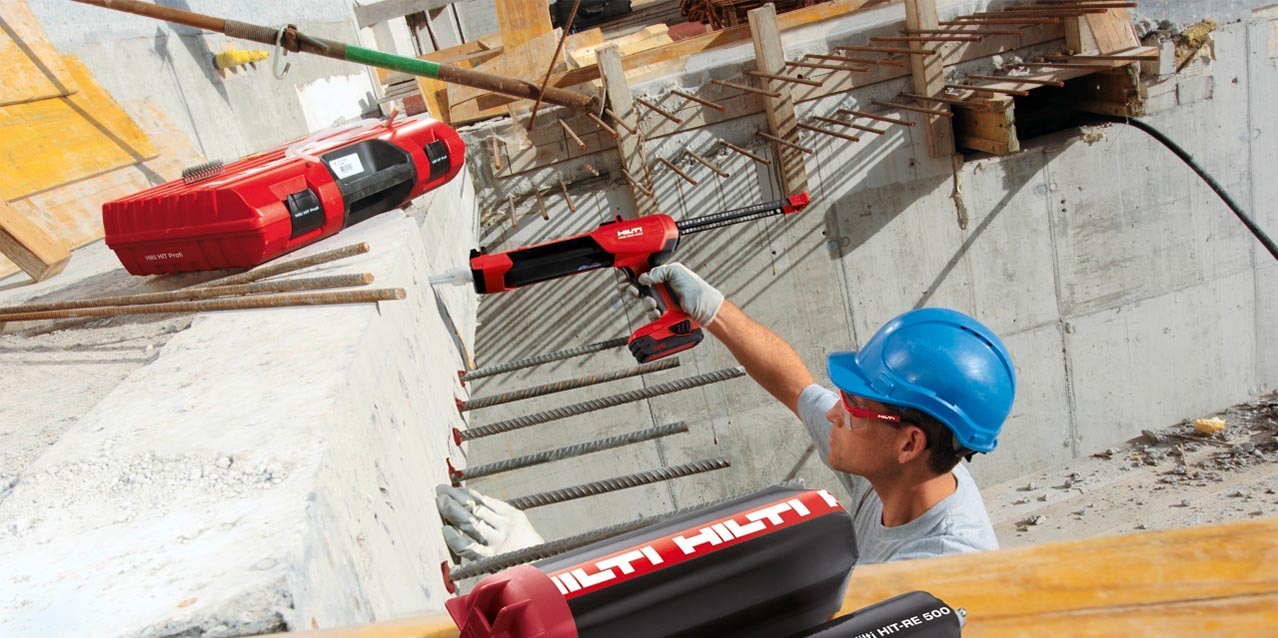

Shear Dowels

Strengthen an existing concrete structure

Strengthening an existing concrete structure through the use of shear dowels is a primary application of post-installed rebar. Though this is commonly done to improve the performance of concrete slabs and structures experiencing earthquake and seismic loads, the application is not limited to geographic areas experiencing these conditions.

Shear dowels are typically used to resist interface shear across a shear plane – the roughened joint between existing and new concrete. The primary shear mechanism – friction across the irregular surface – is enabled by the shear dowels that hold the surfaces together. Therefore, the standard design assumption is that the shear dowels are placed in direct tension as the irregular shear plane is translated laterally.

Image alt text (optional)

Starter Bars

Extend, repair and strengthen existing concrete structures

Post-installed starter bars are used to help extend, rehabilitate and strengthen existing concrete bridges, roadways and other common civil engineering structures. These applications often require enhanced resistance to extreme temperatures and corrosion from chemical exposure and naturally occurring ambient conditions.

Starter bars are typically used to resist tension and shear forces across beam-to-column and column-to-foundation joints. Starter bars are oriented perpendicular to the primary reinforcement of the existing concrete member in which they are installed.

Image alt text (optional)

Tension lap splices

Extension of existing reinforced concrete structures

Extending existing reinforced concrete structures such as slabs, walls and columns is the most common application for post-installed reinforcing bars. This helps facilitate expansion of floor space or address other functional changes in a particular structure. Non-contact tension lap splices in which tension loads are transferred between adjacent bars via compression struts and hoop stresses in the concrete directly surrounding the spliced bars are utilized to develop the yield strength of the new bars.

This application usually involves the installation of a large numbers of bars with close spacing, limited concrete cover and deep embedment depths.

Rebar product solutions

HIT-RE 500 V3

Ultimate-performance injectable epoxy mortar with approvals for rebar connections and heavy-duty anchoring.

Shop now

HIT-HY 200 V3

Ultimate-performance injectable hybrid mortar with approvals for anchoring structural steel baseplate and post-installed rebar connections.

Shop now

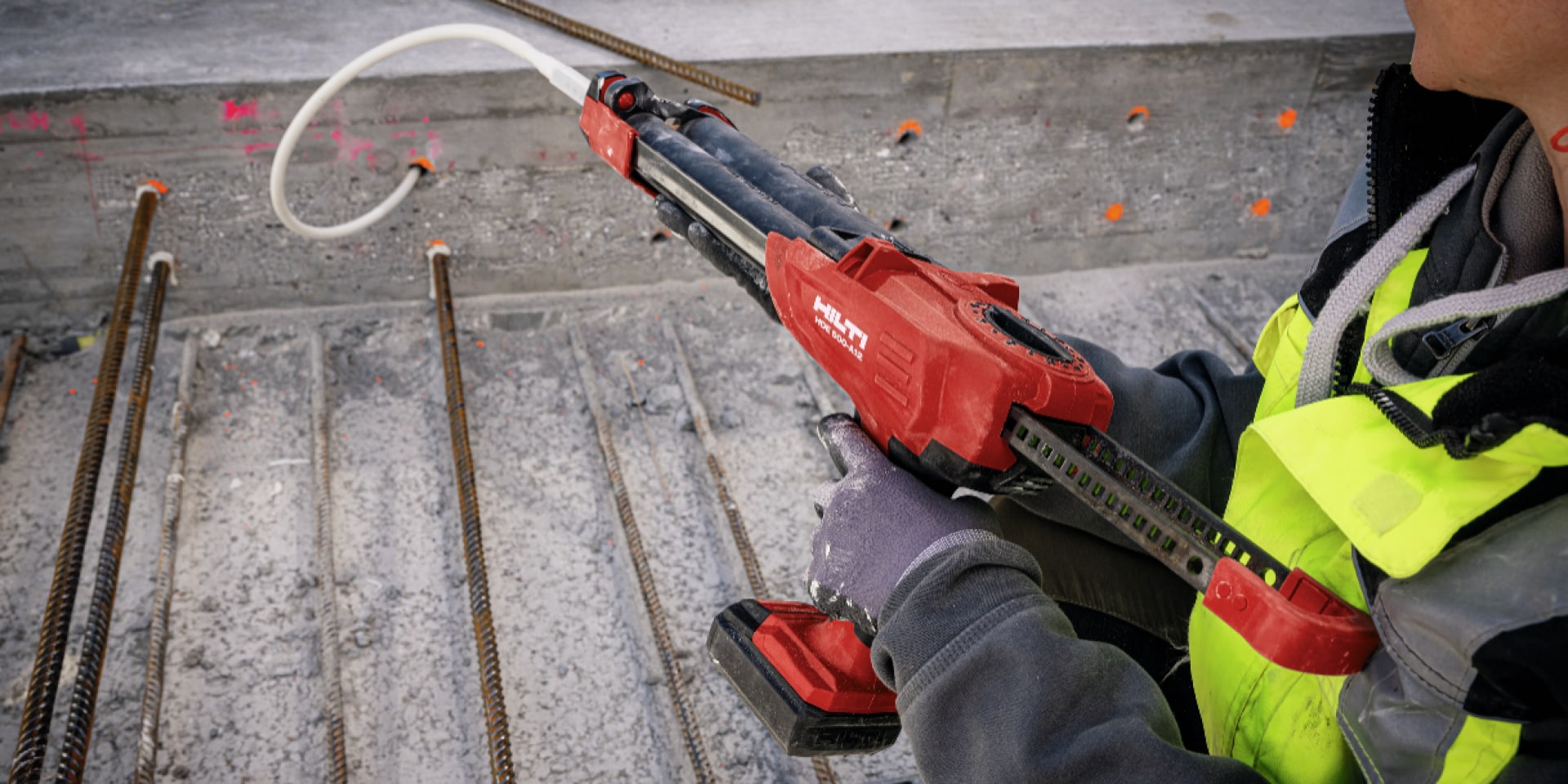

HDE 500-22 cordless dispenser

Nuron battery-powered hybrid/epoxy adhesive anchor dispenser with smart features to help increase speed, safety and reduce waste.

Shop now

Cordless rotary hammers

With Hilti cordless rotary hammers you can work faster, obtain better installation quality and help boost jobsite safety with virtually dust-free hole cleaning.

Learn more

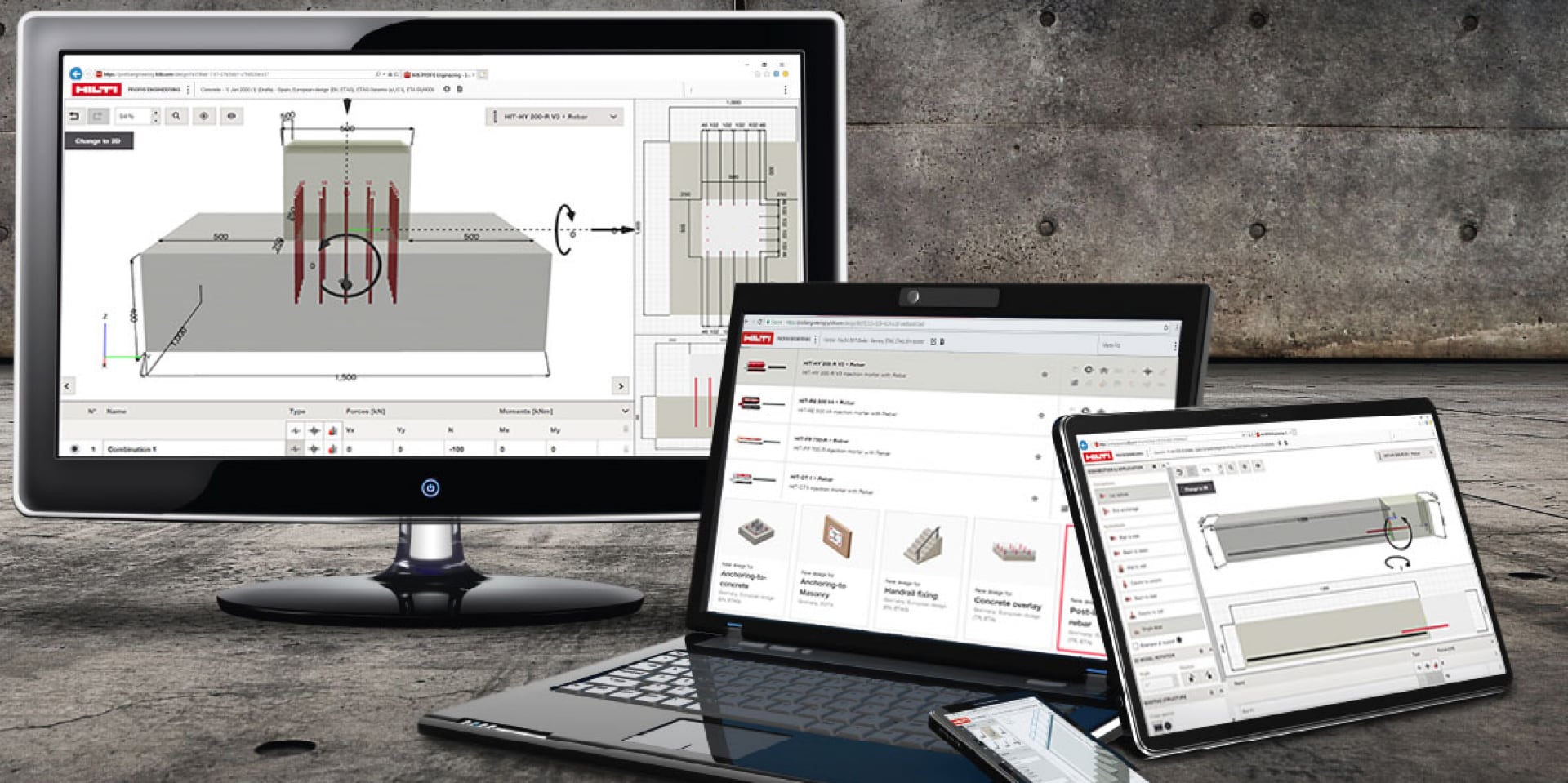

PROFIS Rebar Design Software


Design post installed rebar for slab/wall extensions, structural joints, or concrete overlays using a variety of methods including ACI/CSA development length, lap splices and anchoring to concrete provisions. Help verify shear resistance at the interface using ACI shear friction or research based methods.

Learn more about Concrete-to-Concrete
Post-Installed Reinforcing Bar Guide

Post-Installed Reinforcing Bar Guide

Comprehensive information on post-installed rebar theory, design, and installation.

View the Post-Installed Reinforcing Bar Guide
