HAS-R 316 SS Anchor rod

Anchor rod HAS-R 3/4" x 16" SS316 #2045012

Anchor rod, HAS-R, HAS-R (fractional), rod, stainless, stainless rod, HSA-R, HASR, 304 SS, SS, 304
00001275.tif

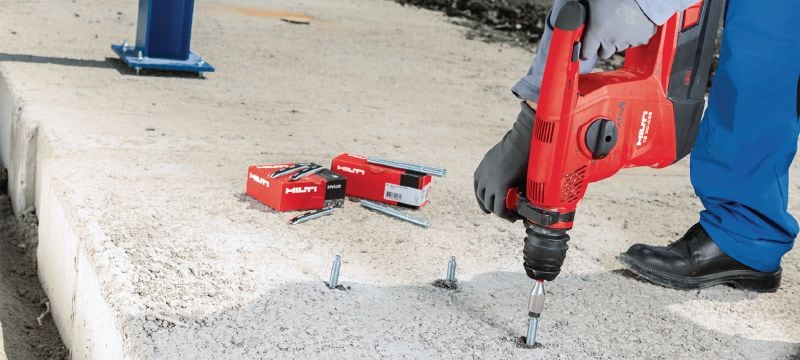

HVU2 capsule anchor application picture
HVU2 capsule anchor application picture
HVU2 capsule anchor application picture
Anchor rod, HAS-R, HAS-R (fractional), rod, stainless, stainless rod, HSA-R, HASR, 304 SS, SS, 304
00001275.tif
HVU2 capsule anchor application picture
HVU2 capsule anchor application picture
HVU2 capsule anchor application picture

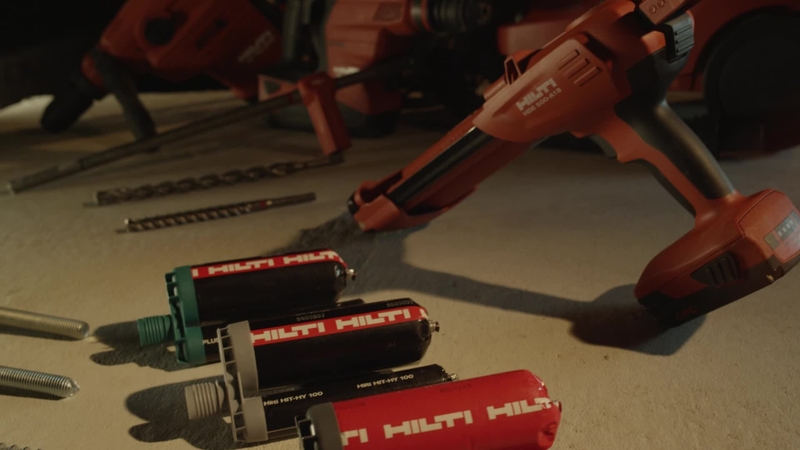

Hilti Anchor Portfolio - Fast Cure Adhesives and Anchor Rods.
Hilti fast cure HIT Adhesive Anchor System portfolio

High-performance anchor rod for adhesive capsules and injectable hybrid/epoxy anchors (316 stainless steel)

  • Material, corrosion: Stainless Steel, 316
  • Wrench/nut size: 1-3/16 in
  • PROFIS Software: Yes

Customers also searched for threaded rod, all thread, stainless steel, 316 or epoxy anchor.

Choose options

Anchor size - D
  • 3/8 in
  • 1/2 in
  • 5/8 in
  • 3/4 in
  • 7/8 in
  • 1 in
Anchor length - L
  • 5-1/8 in
  • 6-1/2 in
  • 7-5/8 in
  • 8 in
  • 9 in
  • 9-5/8 in
  • 10 in
  • 11 in
  • 12 in
  • 16 in
  • 20 in
Material composition
  • Stainless steel, 316
Head configuration
  • Externally threaded
Pack size
  • 1 pc
  • 2 pc
  • 4 pc
  • 10 pc
  • 20 pc
 Product options
Quantity
Package
Total Pieces
10
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

$993.00

$993.00 / 1 Package

Technical Data

Material, corrosion
Stainless Steel, 316
Wrench/nut size
1-3/16 in
PROFIS Software
Yes

Documents

Features & Applications

Features

  • Large range of anchor rod diameters (1/4" - 1")
  • Designed for use with HVU adhesive capsules in solid concrete or with Hilti HIT injectable adhesive mortar in various base materials
  • Features a chisel tip to cut and mix the HVU adhesive capsule
  • Head marking for easy verification of steel grade and rod length, even after installation
  • Free of oil and other contamination for highest performance with Hilti HIT injectable adhesive anchoring systems

Applications

  • Suitable for fastenings in concrete and other base materials in combination with the relevant Hilti HIT injectable mortars
  • Suitable for fastenings in concrete in combination with HVU adhesive capsules (3/8” to 1")
  • For outdoor applications or fastenings in corrosive environments
  • 1/4" and 5/16" rods without chisel tip for use with Hilti HIT-HY 70 injectable mortar
