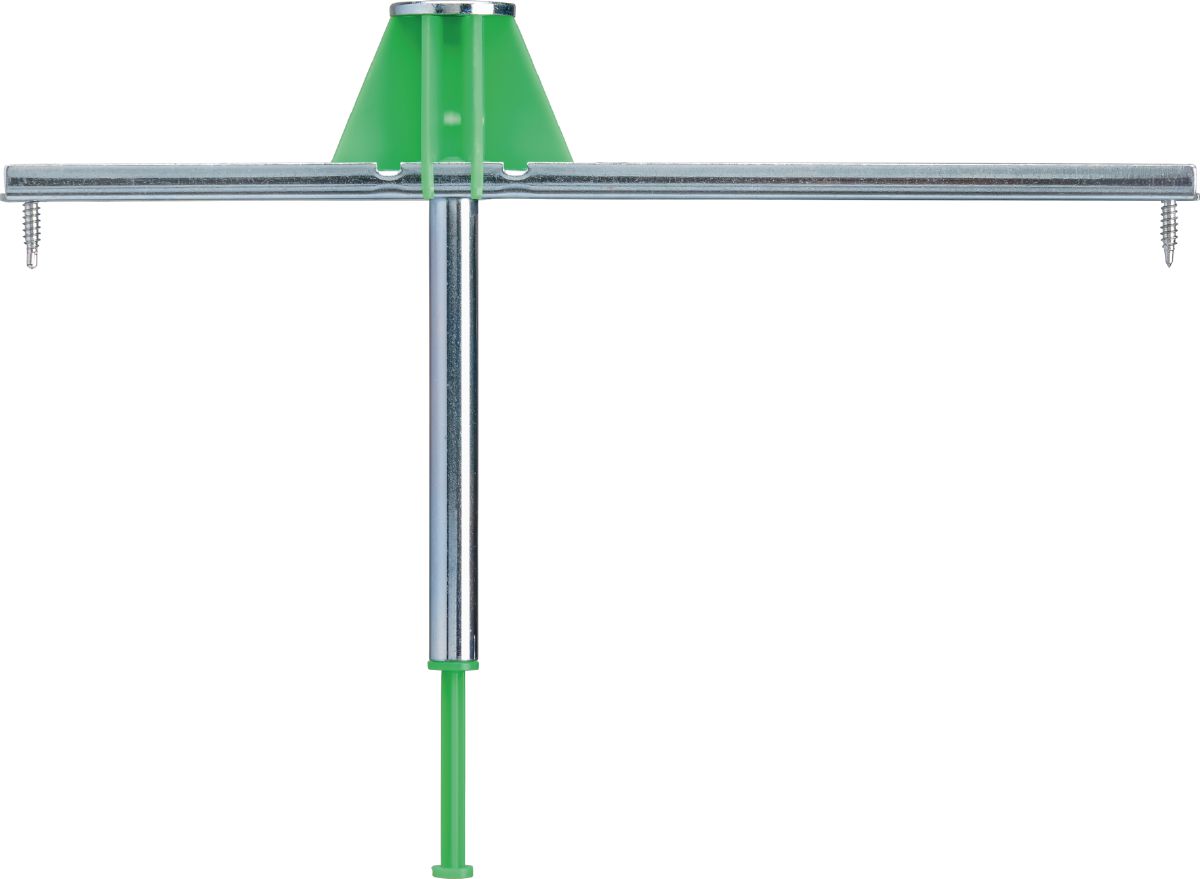

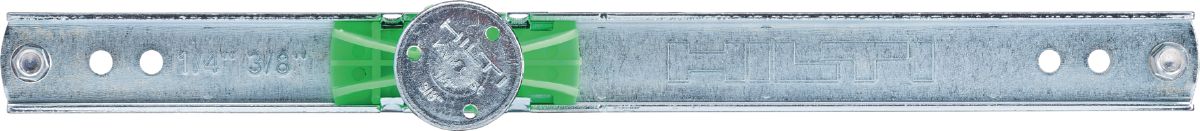

KCM-MD Kwik Cast cast-in-place anchor, long plate
Ultimate-performance multi-thread long plate cast-in-place anchor for concrete on metal deck with approvals
- Approvals / Test reports: FM (Factory Mutual), ICC-ES report (concrete), LABC, Seismic, UL (Underwriter Laboratories)
- Base materials: Concrete (cracked), Concrete (lightweight over metal deck), Concrete (normal-weight over metal deck), Concrete (uncracked)
- Material, corrosion: Carbon steel, zinc-plated
Customers also searched for cast-in-place anchor, cast-in anchor, metal deck anchor, anchor for metal deck or anchor for concrete over metal deck.
Choose options
Anchor size - D
- 1/4 in & 3/8 in
- 3/8 in & 1/2 in
- 1/4 in & 3/8 in & 1/2 in
- 5/8 in & 3/4 in
- 3/8 in & 1/2 in & 5/8 in
Color (anchor housing)
- Black
- Green
- Grey
- Orange
- Red
Color (plug)
- Black
- Blue
- Green
- Orange
- Red
Pack size
- 1 pc
- 15 pc
- 20 pc
- 25 pc
Quantity
Packs
Total Pieces
1
Discounted net
From $208.00
Technical Data
Approvals / Test reports
FM (Factory Mutual), ICC-ES report (concrete), LABC, Seismic, UL (Underwriter Laboratories)
Base materials
Concrete (cracked), Concrete (lightweight over metal deck), Concrete (normal-weight over metal deck), Concrete (uncracked)
Material, corrosion
Carbon steel, zinc-plated
Head configuration
Internally threaded
IBC compliance
IBC 2012, IBC 2015, IBC 2018, IBC 2021
Material composition
Carbon steel, Zinc-plated
PROFIS Software
Yes
Documents
Features & Applications
Features
- Application-relevant multi-thread configurations
- Pre-assembled self-tapping screws reduce installation time
- Pre-assembled spanner plate offers flexibility with installation at any location on the metal deck
- Color-coded plastic plugs protect inner threads from concrete and Monokote® fireproofing
- KCM-MD Combo Bit, 2-in-1 setting tool, available for quick and easy installation
Applications
- Pre-installed fastening points for suspending pipes, electrical conduits, cable trays, HVAC ducts and equipment, medical equipment and other overhead elements
- Pre-installed fastening points for seismic bracing applications
For approval or certificate information, please see individual items.
