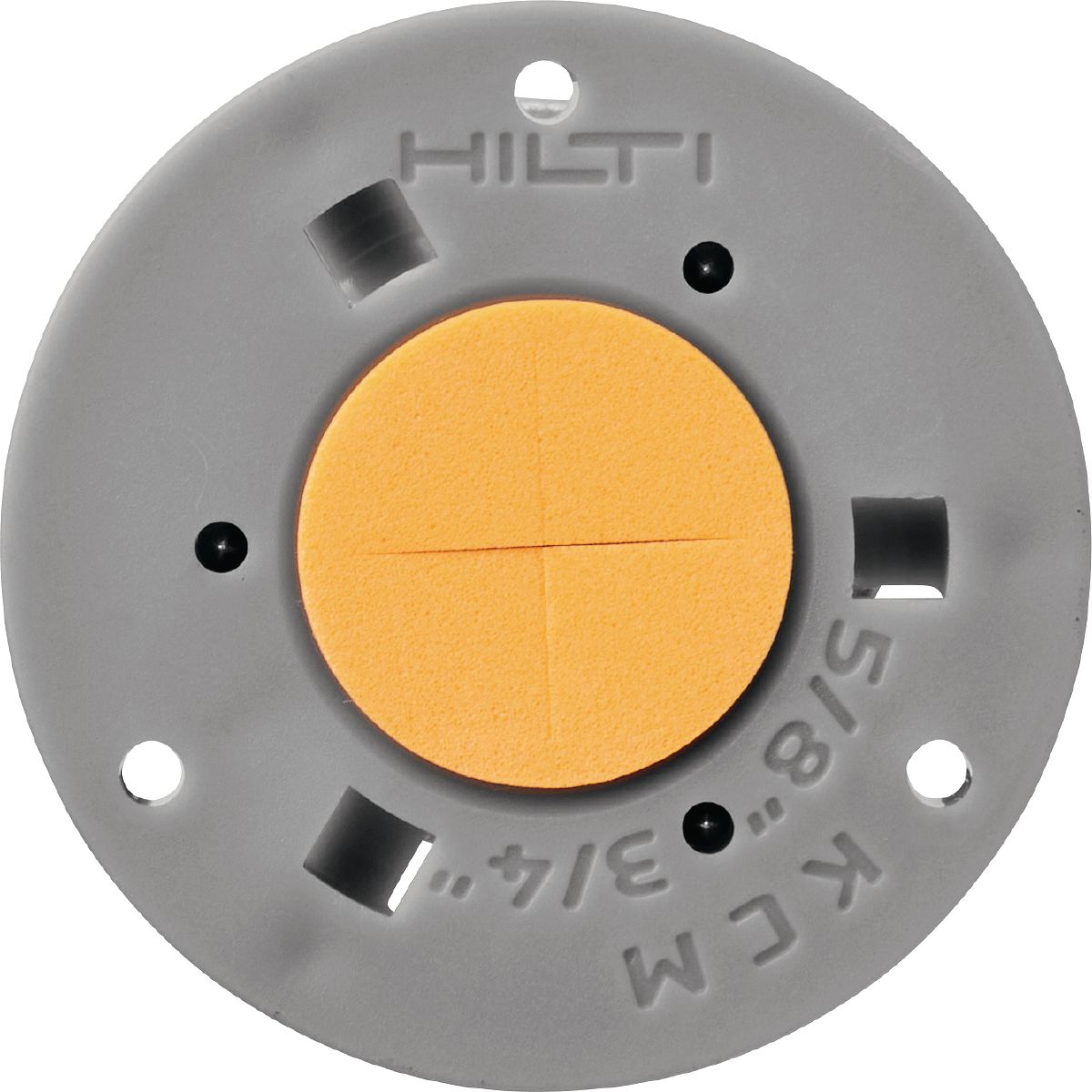

KCM-WF Kwik Cast cast-in-place anchor

Setting tool for Kwik cast in multithread woodform anchors
Single point cast-in multithread (3/8"+1/2"+5/8") red wood form anchor - Side view
2D Side bottom View of KCM-WF in different colors
2D side view of KCM-WF in different colors
Collage 3 KCCM-WF application images used to create 1 PDP image. Approved by HAG. Dallas, TX. 2024.
Cropped application image of Construction worker installing KCCM WF anchor onto wood formwork using the Kwik Cast setting tool. KCM-WF-ST. Dallas, TX. 2024.
Cropped application image of Construction worker installing KCCM WF anchor onto wood formwork using the Kwik Cast setting tool. KCM-WF-ST. Dallas, TX. 2024.
Setting tool for Kwik cast in multithread woodform anchors
Single point cast-in multithread (3/8"+1/2"+5/8") red wood form anchor - Side view
2D Side bottom View of KCM-WF in different colors
2D side view of KCM-WF in different colors
Collage 3 KCCM-WF application images used to create 1 PDP image. Approved by HAG. Dallas, TX. 2024.
Cropped application image of Construction worker installing KCCM WF anchor onto wood formwork using the Kwik Cast setting tool. KCM-WF-ST. Dallas, TX. 2024.
Cropped application image of Construction worker installing KCCM WF anchor onto wood formwork using the Kwik Cast setting tool. KCM-WF-ST. Dallas, TX. 2024.

Ultimate-performance multi-thread, cast-in-place threaded inserts for concrete on wood formwork with approvals

  • Approvals / Test reports: FM (Factory Mutual), ICC-ES report (concrete), Seismic, UL (Underwriter Laboratories)
  • Base materials: Concrete (cracked), Concrete (lightweight), Concrete (uncracked)
  • Material, corrosion: Carbon steel, zinc-plated

Customers also searched for cast in anchor for wood form, wood form cast in anchor, anchor for wood form or wood form anchor.

Technical Data

Approvals / Test reports
FM (Factory Mutual), ICC-ES report (concrete), Seismic, UL (Underwriter Laboratories)
Base materials
Concrete (cracked), Concrete (lightweight), Concrete (uncracked)
Material, corrosion
Carbon steel, zinc-plated
Seismic loading
Yes
Head configuration
Internally threaded
Material composition
Zinc-plated, Carbon steel
PROFIS Software
Yes

Documents

Features & Applications

Features

  • Application-relevant multi-thread configurations
  • Nails above head prevent head pop-offs due to rebar hits
  • Design profile reduces lost anchoring points due to accidental rebar hits
  • Perforated foam protects inner threads from concrete intrusion
  • KCM-WF-ST standing setting tool available to help increase productivity

Applications

  • Pre-installed fastening points for suspending pipes, electrical conduits, cable trays, HVAC ducts and equipment, medical equipment and other overhead elements
  • Pre-installed fastening points for seismic bracing applications

For approval or certificate information, please see individual items.
