HVU2 Anchor capsule

Configurator
Technical Data
Documents
Features & Applications
Related Products

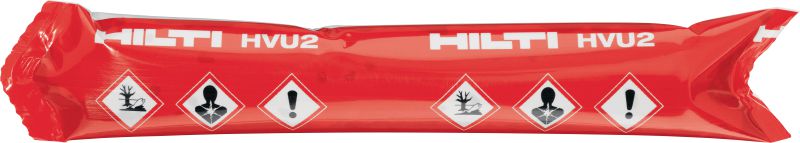

Ultimate performance foil adhesive capsules for heavy duty anchoring in concrete. New template with GHS signs

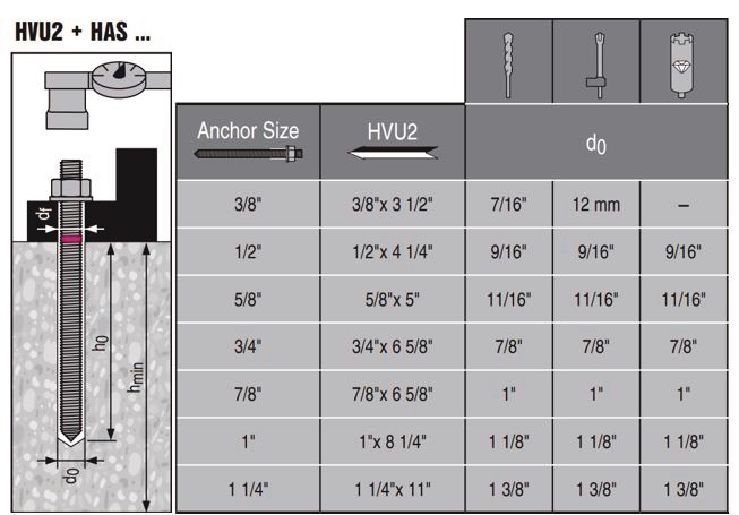

Selector of the HVU2 anchor capsule + HAS to help the customer choose the right product online.

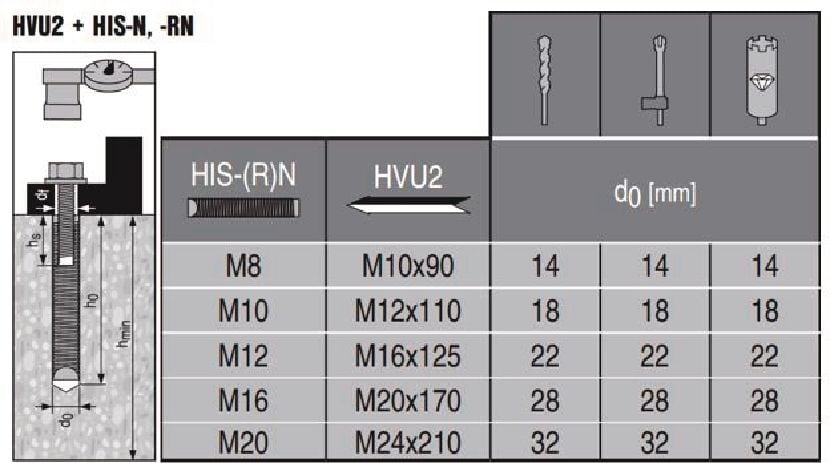

Selector of the HVU2 anchor capsule + HIS to help the customer choose the right product online.

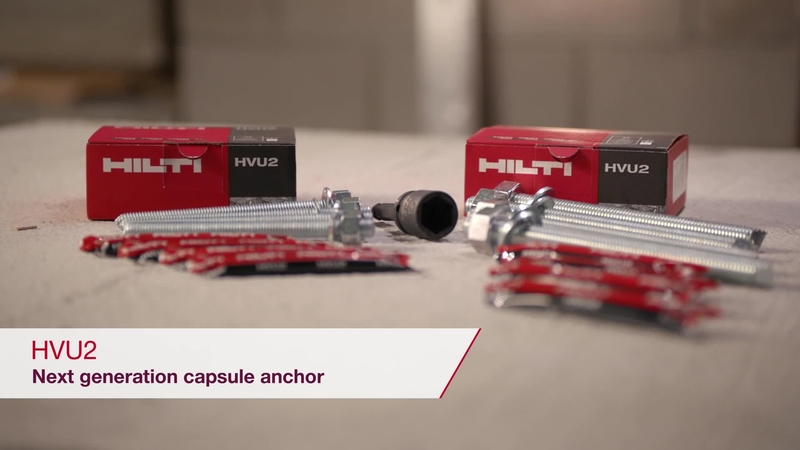

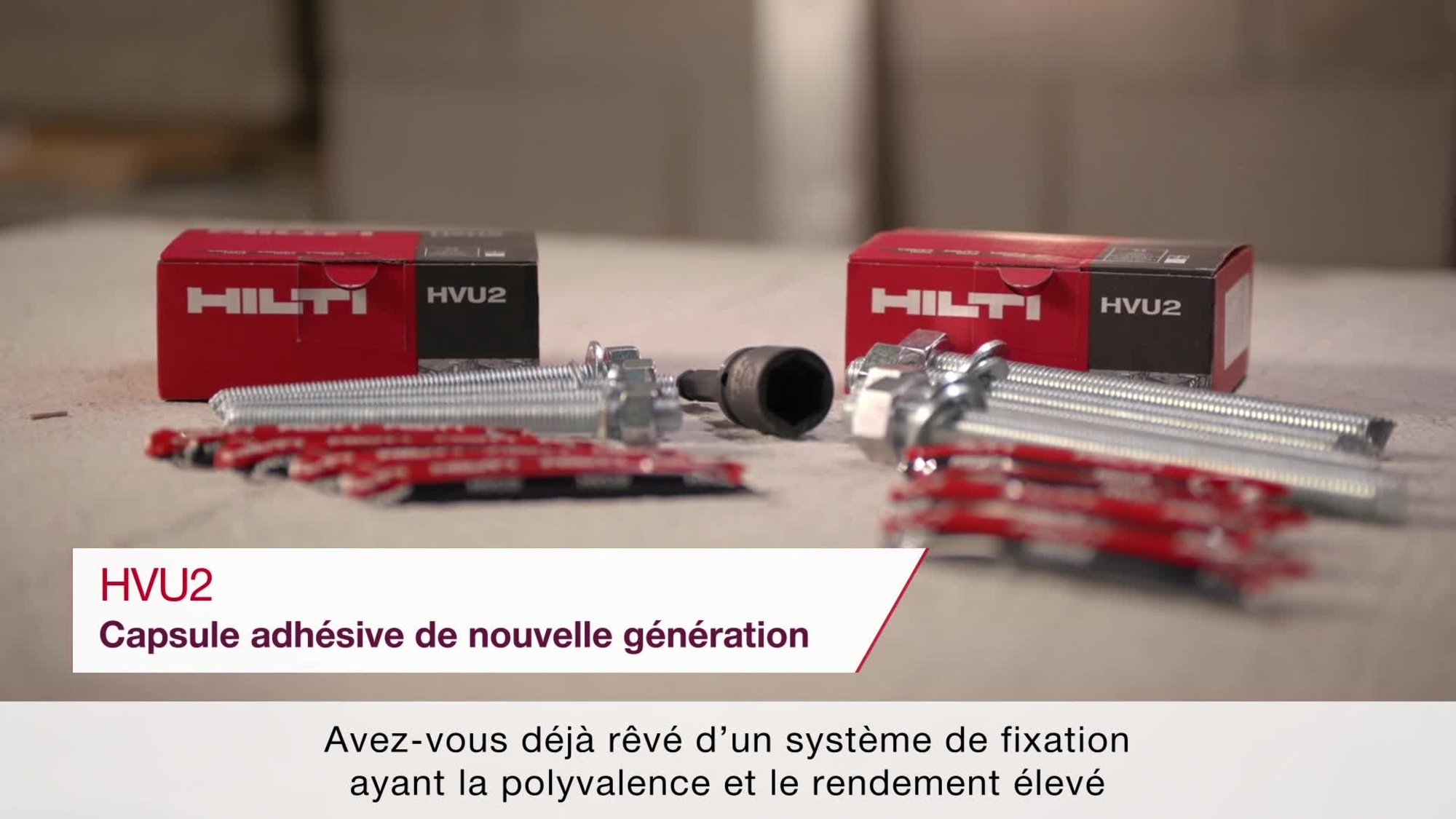

HVU2 capsule anchor system picture

High performing foil capsule for heavy-duty applications in concrete in combination with HAS-B, HAS-E & HAS-R threaded rods and HIS-N internally threaded rods (sold separately)

  • Anchoring elements: HIS-N internally threaded rods
  • Approvals / Test reports: ICC-ES report (concrete), Seismic
  • Base material condition (as per approval): Dry

Choose options

Anchor size - D
  • 3/8"
  • 1/2"
  • 5/8"
  • 3/4"
  • 7/8"
  • 1"
  • 1 1/4"
Standard embedment depth
  • 3-1/2 in
  • 4-1/4 in
  • 5 in
  • 6-5/8 in
  • 8-1/4 in
  • 11 in
Return Policy
  • No Returns
Pack size
  • 1 pc
  • 4 pc
  • 5 pc
  • 8 pc
  • 10 pc
  • 20 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please log in or register to see your company prices.

Discounted net
From $208.00

Technical Data

Anchoring elements
HIS-N internally threaded rods
Approvals / Test reports
ICC-ES report (concrete), Seismic
Base material condition (as per approval)
Dry
IBC compliance
IBC 2015, IBC 2018
PROFIS Software
Yes
Material composition
Hybrid urethane methacrylate adhesive
Tested/approved for diamond drilling
Yes
In-service temperature – range
-40 - 120 °C
Storage and transportation temperature range
5 - 25 °C
Seismic loading
Yes
Installation direction
All

Documents

HSE Information
Approval document
Technical information
Documentation
Material safety datasheet
Sustainability Documentation
Operating Instruction
pdf LEED Declaration_HVU2_06-2019_en, English [ 303.2 KB ]
pdf VOC_French Label_HVU 2_EN, English [ 275.6 KB ]
pdf Confirmation_LEED_V4_HVU 2_032017, English [ 223.9 KB ]

Features & Applications

Features

  • Suitable for cracked concrete and in seismic conditions – even in diamond cored holes included in ESR-4372 for sizes 1/2" to 1 1/4"
  • Soft foil capsules are much tougher and more resilient than glass capsules – little to no risk of breakage
  • Can be installed using impact drivers, drill drivers and hammer drills

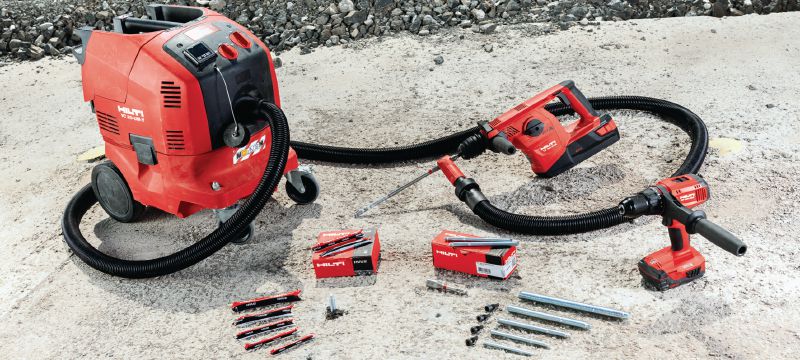

  • Automatic hole cleaning (SafeSet) with TE-CD and TE-YD drill bits in combination with a Hilti vacuum cleaner
  • High performance in seismic and static conditions in cracked and uncracked concrete

Applications

  • Anchoring steel structures (e.g. racking, guard rails, fences and gates)
  • Anchoring in industry (e.g. machinery, elevators, cranes and industrial equipment)
  • Anchoring applications requiring seismic qualification
  • Anchoring items along roads and in tunnels (e.g. crash and noise barriers, overhead catenary systems)
  • Anchoring at the edge of slabs or on narrow supports (e.g. beams, balconies)

For approval or certificate information, please see individual items.
