HDA-T Undercut anchor

Configurator
Technical Data
Documents
Features & Applications
Related Products
L060075.tif
HDA
Deckenkran 05703.tif
HDA
HDA
HDA

Ultimate-performance through-set undercut anchor for dynamic loads (zinc-plated)

  • Material, corrosion: Zinc plated (min. 5 microns)
  • Head configuration: Externally threaded
  • Approvals / Test reports: ICC-ES report (concrete), LABC, Nuclear (NQA-1), Seismic

Customers also searched for self-undercutting anchor or undercut anchor.

Choose options

Anchor size - D
  • M10
  • M12
  • M16
  • M20
Standard embedment depth
  • 3-15/16 in
  • 4-29/32 in
  • 7-15/32 in
  • 9-27/32 in
Max. fixture thickness at standard embedment depth
  • 25/32 in
  • 1-3/16 in
  • 1-9/16 in
  • 1-31/32 in
  • 2-3/8 in
  • 3-15/16 in
Pack size
  • 2 pc
  • 4 pc
  • 8 pc
  • 12 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please log in or register to see your company prices.

Discounted net
From $798.00

Technical Data

Material, corrosion
Zinc plated (min. 5 microns)
Head configuration
Externally threaded
Approvals / Test reports
ICC-ES report (concrete), LABC, Nuclear (NQA-1), Seismic
Seismic loading
Yes
Fatigue loading
Yes
PROFIS Software
Yes
Type of fixing
Through-fastening

Documents

Technical information
Specification Text
CAD/BIM Typicals
Approval document
Documentation
Brochure
Sustainability Documentation
Operating Instruction
pdf Technical data sheet for HDA anchor steel to concrete, English [ 1.1 MB ]
pdf Product Technical Guide Supplement for HDA Undercut Anchors, English [ 779.6 KB ]
pdf Product Technical Guide for HDA Undercut Anchors, French [ 788.1 KB ]

Features & Applications

Features

  • Combines the advantages of a post-installed mechanical anchor, i.e. flexibility and immediate loading, with the performance of a cast-in-place headed stud
  • Close spacing and small edge distance thanks to low expansion forces
  • Self-undercutting facilitates fast and reliable installation without the need for a separate undercutting tool or additional operations
  • The resulting keying effect provides a secure hold even in cracked concrete under dynamic loading
  • Manufactured under an NQA-1 nuclear quality assurance program with comprehensive approvals

Applications

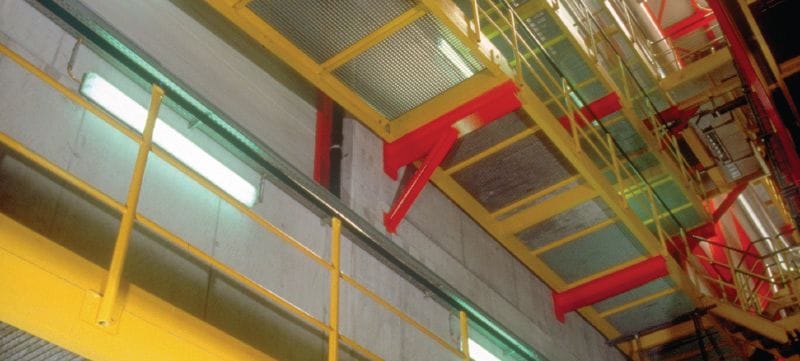

  • Safety-relevant, heavy-duty fastenings for all dynamic loading (shock, seismic and fatigue) in cracked or uncracked concrete, including applications in nuclear power plants

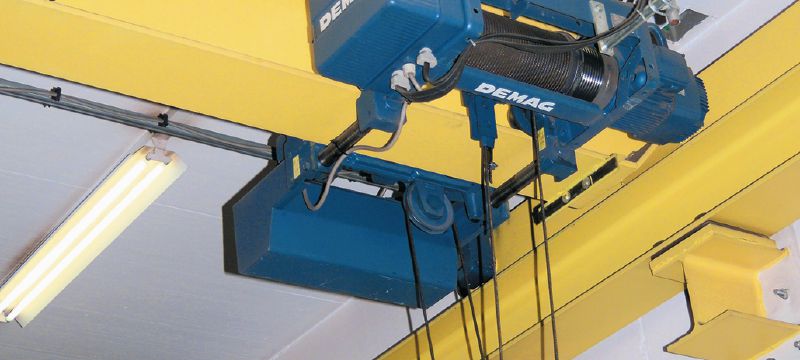

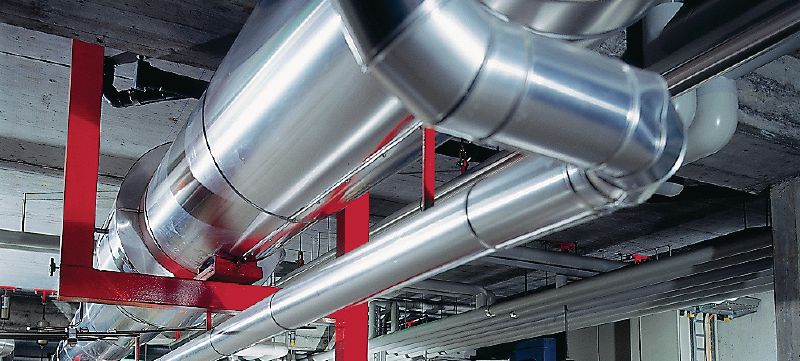

  • Fastenings to support heavy pipes, safety barriers, industrial machines, crane rails, dorm structures, crash barriers, roof fixings, elevator tracks, bridge retrofitting etc.

For approval or certificate information, please see individual items.
