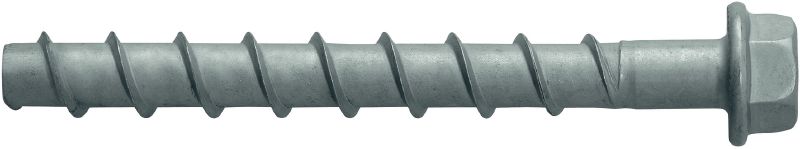

Premium screw anchor for permanent fastenings or reusable temporary fastenings in concrete or masonry (carbon steel, hex head)

  • Material, corrosion: Carbon steel, zinc-plated
  • Head configuration: Hex head
  • Base materials: Concrete (uncracked), Masonry (grout-filled CMU)

Customers also searched for screw anchor or concrete screw anchor.

Choose options

Anchor size - D
  • 3/8 in
  • 1/2 in
  • 5/8 in
  • 3/4 in
Anchor length - L
  • 2-1/8 in
  • 3 in
  • 3-1/2 in
  • 4 in
  • 4-1/2 in
  • 5 in
  • 5-1/2 in
  • 6 in
  • 6-1/2 in
  • 7 in
  • 9 in
Pack size
  • 1 pc
  • 10 pc
  • 15 pc
  • 25 pc
  • 30 pc
  • 50 pc
Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From $112.00

Technical Data

Material, corrosion
Carbon steel, zinc-plated
Head configuration
Hex head
Base materials
Concrete (uncracked), Masonry (grout-filled CMU)
Type of fixing
Through-fastening
Reusable (and removable)
Yes
Cleaning procedures
Manual Cleaning
PROFIS Software
Yes
Installation direction
All
Material composition
Steel, zinc-plated (min. 8 µm)

Documents

Features & Applications

Features

  • Time-saving and easy to install with no need for accurate torque
  • Tested and evaluated according to AC 193 for uncracked concrete and AC 106 for grout-filled CMU blocks (for sizes 3/8'' and bigger)
  • Optimized thread design for best-in-class setting performance and superior load values
  • For use with standard ANSI-tolerance drill bits – no special close-tolerance drill bits required
  • Fully-removable screw anchoring solution

Applications

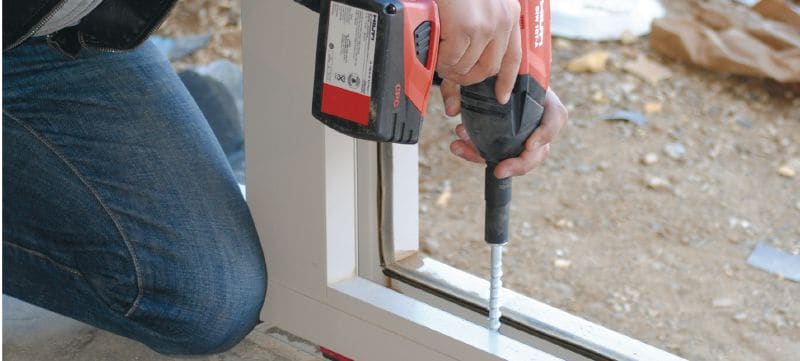

  • Glazing, windows and storefronts
  • Racking and shelving
  • Attaching ledgers

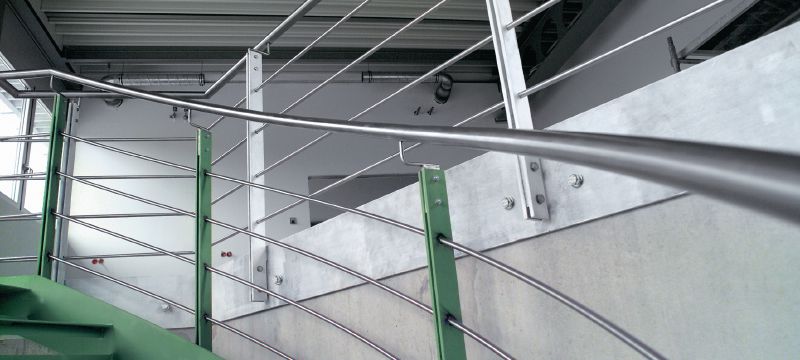

  • Installing inside railings
  • Attaching formwork and tilt-up braces, sill plates, perimeter walls

For approval or certificate information, please see individual items.
