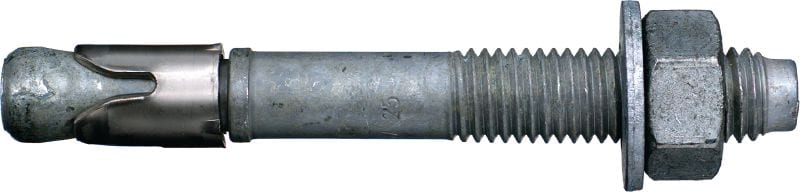

Kwik Bolt 3 Wedge anchor HDG
High-performance wedge anchor with everyday approvals for uncracked concrete (hot-dip galvanized)
- Material, corrosion: Carbon steel, HDG (Hot-Dip Galvanized)/Sherardized
- Head configuration: Externally threaded
- Approvals / Test reports: ICC-ES report (concrete)
Customers also searched for wedge anchor, hot-dipped galvanized wedge anchor or expansion anchor.
Choose options
Anchor size - D
- 1/2 in
- 5/8 in
- 3/4 in
Anchor length - L
- 3-3/4 in
- 4-1/2 in
- 4-3/4 in
- 5-1/2 in
- 6 in
- 7 in
- 8 in
Pack size
- 1 pc
- 10 pc
- 15 pc
- 25 pc
Quantity
Packs
Total Pieces
1
Discounted net
From $167.00
Technical Data
Material, corrosion
Carbon steel, HDG (Hot-Dip Galvanized)/Sherardized
Head configuration
Externally threaded
Approvals / Test reports
ICC-ES report (concrete)
Base materials
Concrete (lightweight), Concrete (uncracked), Masonry (grout-filled CMU)
Type of fixing
Pre-fastening, Through-fastening
PROFIS Software
Yes
Environmental conditions
Dry indoor, Indoor with temporary condensation
Documents
doc General Notes for Post-Installed Anchors, English [ 69.5 KB ]
doc Spec Section 05 05 19 for Post-Installed Concrete Anchors, English [ 99 KB ]
doc Spec (CA-EN) Section 03 15 00 for Concrete Accessories, English [ 100 KB ]
doc Spec Section 05 05 19 for Post-Installed Concrete Anchors, English [ 104.5 KB ]
doc Spec Section 05 05 19 for Post-Installed Concrete Anchors, French [ 101.5 KB ]
Features & Applications
Features
- Approved by ICC-ES for concrete
- Rounded end for easy installation
- Dog point impact section to prevent thread damage during installation
- Testing according to AC193 results in smallest edge distance and spacing for all wedge anchors in class
- Also available in carbon steel, 304 SS and 316 SS
Applications
- Fastening structural steel

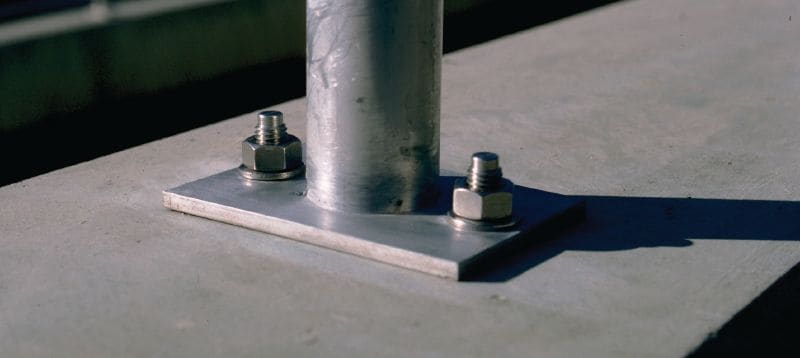

- Attaching low exposure hand rails and signs
- Attaching low exposure seating and bleachers
- Fastening industrial/mechanical equipment
For approval or certificate information, please see individual items.
