KH-EZ CRC Screw anchor
Ultimate screw anchor with corrosion-resistant coating (mechanically galvanized carbon steel, hex head)
- Material, corrosion: Carbon Steel, mechanically galvanized
- Head configuration: Hex head
- Approvals / Test reports: ICC-ES report (concrete), ICC-ES report (masonry), LABC, Seismic
Choose options
Anchor size - D
- 3/8 in
- 1/2 in
- 5/8 in
- 3/4 in
Anchor length - L
- 3 in
- 4 in
- 5 in
- 5-1/2 in
- 6 in
- 6-1/2 in
- 7 in
- 8 in
- 9 in
Pack size
- 1 pc
- 10 pc
- 15 pc
- 25 pc
- 30 pc
- 50 pc
Quantity
Packs
Total Pieces
1
Discounted net
From $197.00
Technical Data
Material, corrosion
Carbon Steel, mechanically galvanized
Head configuration
Hex head
Approvals / Test reports
ICC-ES report (concrete), ICC-ES report (masonry), LABC, Seismic
Base materials
Concrete (cracked), Concrete (lightweight), Concrete (uncracked), Masonry (grout-filled CMU)
Type of fixing
Through-fastening
PROFIS Software
Yes
Environmental conditions
Indoor, damp conditions, Outdoor
IBC compliance
IBC 2018
Installation direction
All
Material composition
Steel, mechanically galvanized (min. 55 µm)
Documents
Features & Applications
Features
- Time and labor-saving fastening solution especially suited for seismic, cracked concrete and grout filled CMU applications requiring an ICC approval
- Anchor coating meets ASTM B695 Class 55 for added corrosion resistance
- Quicker and easier to install than wedge anchors – no cleaning, no high-accuracy torque wrench and no hammering required
- Optimized thread design for exceptional setting performance, superior load values and reduced edge distances and spacing
- Fully removable anchoring solution for use with standard ANSI-tolerance drill bits – no special tolerance drill bits required for these screw anchors
Applications
- Structural steel applications where additional corrosion protection is needed
- Attaching railings, handrails, safety barriers, guard rails and signs
- Installing storage and rack systems
- Secondary steel attachment
- Pressure-treated wood (sill plates)
For approval or certificate information, please see individual items.
Related Products
Compact-class cordless impact wrench with the ultimate balance of power and handling (Nuron battery platform)
Ultimate-performance adhesive capsule for Kwik-X Dual Action Anchor System for fastenings in concrete. In combination with KH-EZ screw anchors (sold separately) offers adhesive anchor performance with the installation speed of screw anchors.
Ultimate SDS Plus (TE-C) hammer drill bit for anchor drilling into reinforced concrete (imperial)
Ultimate SDS Max (TE-Y) hammer drill bit for exceptional concrete drilling performance (imperial)

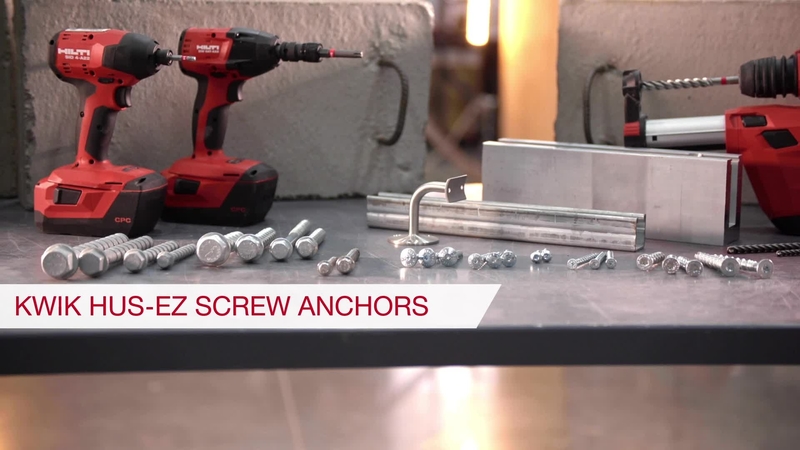

Product Videos
