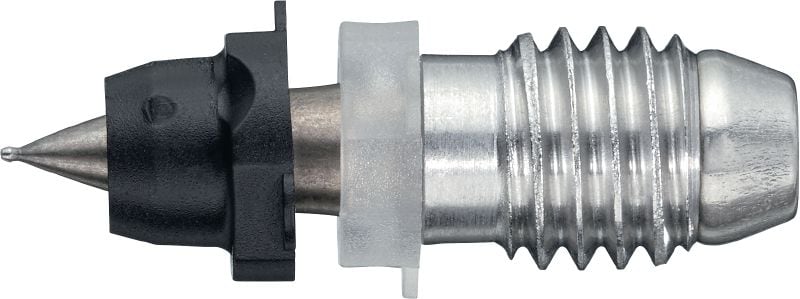

X-ST-GR M8 Threaded studs

Configurator
Technical Data
Documents
Features & Applications
Related Products
L083198.tif
Grating

Threaded stud for grating and multi-purpose fastenings on steel in mildly corrosive environments

  • Base materials: Steel
  • Minimum thickness of base material (steel): 1/4 in
  • Corrosion protection: Stainless steel A4(316) or equivalent
premium

Customers also searched for Checkerplate stud, Stainless stud or Stainless steel stud.

Choose options

Thread size
  • M8
Thread length
  • 3/8 in
  • 9/16 in
Pack size
  • 100 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please log in or register to see your company prices.

Discounted net
From $1,016.00

Technical Data

Base materials
Steel
Minimum thickness of base material (steel)
1/4 in
Corrosion protection
Stainless steel A4(316) or equivalent
Environmental Conditions
Outdoor with moderate concentration of pollution, Outdoor, rural or urban environment with low pollution, Indoor environments with temporary condensation, Dry indoor, Outdoor temporary applications
Material
Stainless steel A4 (or equivalent)
Thread diameter
0.31 in
Point type
Ballistic point
Product Class
Premium

Documents

Technical information
Approval document
Reference document
Documentation
Certificate
CAD/BIM Typicals
Specification Text
Operating Instruction
pdf Fastening on Steel - Installation Typicals, English [ 14.6 MB ]
pdf Product Technical Guide Excerpt for Stud Fasteners for Attachment to Steel, English [ 765.7 KB ]
pdf Product Technical Guide Excerpt for X-ST-GR Stud Fasteners for Fastening to Steel, English [ 753.3 KB ]

Features & Applications

Features

  • Corrosion-resistant fastener, ideal for direct fastening on steel
  • Suitable for mildly corrosive environments
  • Part of a convenient powder actuated fastening system that provides total mobility and independence from electric power supplies
  • No need to pre-drill
  • The fully-automatic DX 460 nailer drives up to 240 fasteners per hour

Applications

  • Fastening grating and checker plates in corrosive environments such as onshore installations, petrochemical facilities, power plants, etc.
  • Fastening light-duty electrical and mechanical components
  • Fastening cable trays and cable runs using channels or conduit clips
  • Fastening junction boxes, switchgear and instrumentation panels directly or using channels

For approval or certificate information, please see individual items.
