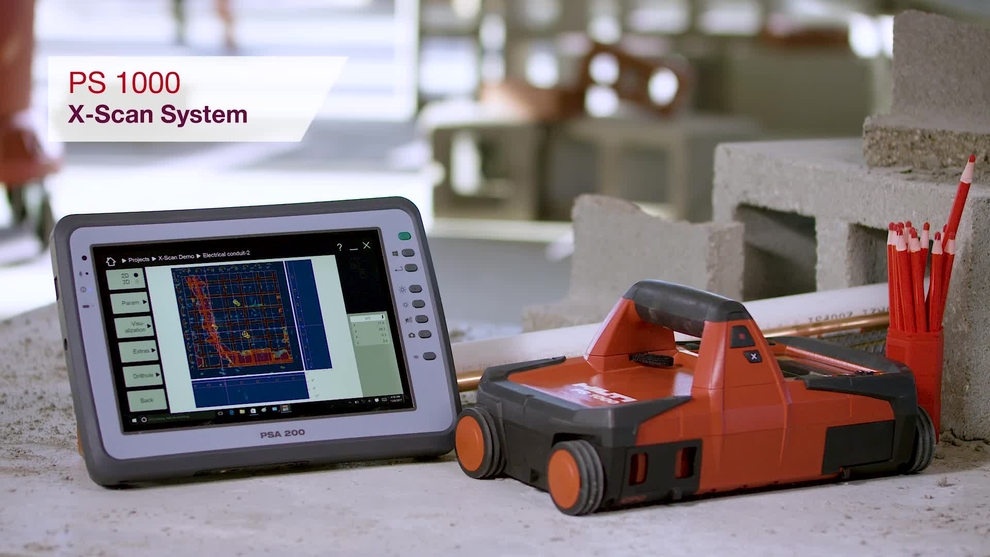

PS 1000-B X-Scan Concrete scanner

X-Scan, Radar, Scanner, Concrete Scanning, PS 1000, PS 1000-B
X-Scan, Radar, Scanner, Concrete Scanning, PS 1000, PS 1000-B
52272.tif
52274.tif
54224.tif
52275.tif
PS 1000 X Scan jobsite

Efficient concrete scanner to locate embedded objects in multiple layers

  • Max. detection depth for object localization: 11-13/16 in
  • Accuracy of depth indication: <4 in: ±0.5 in;>4 in: ±15 %
  • Localization accuracy: ±10 mm

Customers also searched for GPR, ground penetrating radar, concrete scanning, scanner or concrete scanner.

Choose options

Quantity
Total Pieces
NaN
You cannot see your company prices

Please log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Max. detection depth for object localization
11-13/16 in 1
Accuracy of depth indication
<4 in: ±0.5 in;>4 in: ±15 % 2
Localization accuracy
±10 mm 3
Minimum distance between two neighbouring objects
1-9/16 in
Operating temperature range
-10 - 50 °C
Data memory (scanner)
20 scans
Maximum operating time
4 h
Working temperature range
-10 - 50 °C
Weight with batteries
5.5 lb
  1. Performance and accuracy can be significantly affected by site conditions. See operating instructions.
  2. Performance and accuracy can be significantly affected by site conditions. See operating instructions.
  3. Performance and accuracy can be significantly affected by site conditions. See operating instructions.

Documents

pdf Brochure for PS 250 Ferroscan Radar Detection System and PS 1000 X-Scan Radar Detection System [ 1.7 MB ]
pdf Customer Flyer for PS 1000-B X-Scan Radar Detection System [ 656 KB ]
pdf Brochure for PS 250 Ferroscan Radar Detection System and PS 1000 X-Scan Radar Detection System [ 1.7 MB ]
pdf Customer Flyer for PS 1000-B X-Scan Radar Detection System [ 520.4 KB ]
pdf Software Update Instructions for PS 1000 and PS 1000-B X-Scan Radar Detection System [ 993.4 KB ]

Features & Applications

Features

  • Provides real-time view of the inside of concrete structures and generates accurate images automatically for direct on-site evaluation
  • Three scan modes for specific applications – Quickscan detection, Quickscan recording and Imagescan
  • Displays a top view and cross sections of the scan in 2D and 3D for easy object mapping and multilayer identification
  • Compact all-in-one design offers easy operation, plus unmatched data visualization means hundreds of square meters of concrete can be inspected in a day

Applications

  • Locating rebars, tendons, metal and plastic conduits, glass-fiber cables, voids and wood in dry concrete structures at depths of up to 300 mm
  • Minimizing the risk of hitting concealed objects when drilling anchor holes or through holes, breaking out openings and in diamond coring and sawing work
  • Rebar extension (post-installed rebar connections) in structural applications
  • Inspection of floors, decks, slabs, balconies, etc. in structures such as tunnels, bridges and buildings
  • Detection of voids and cavities
