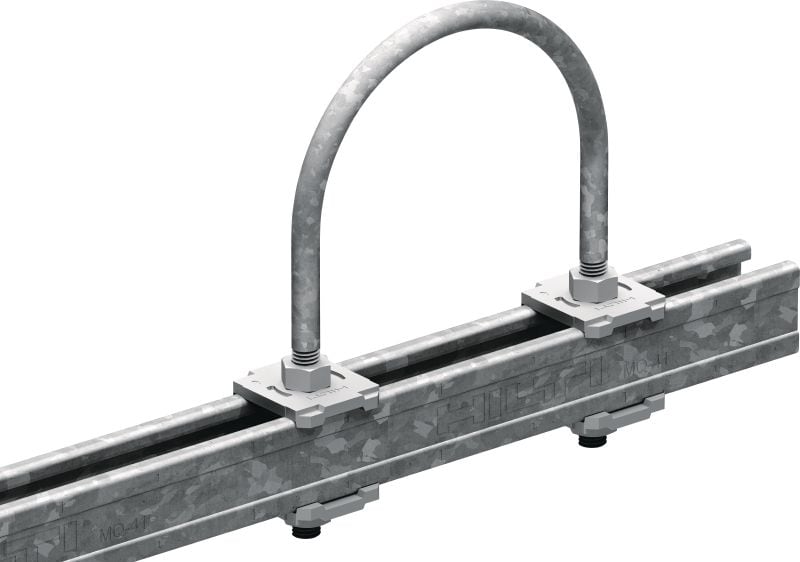

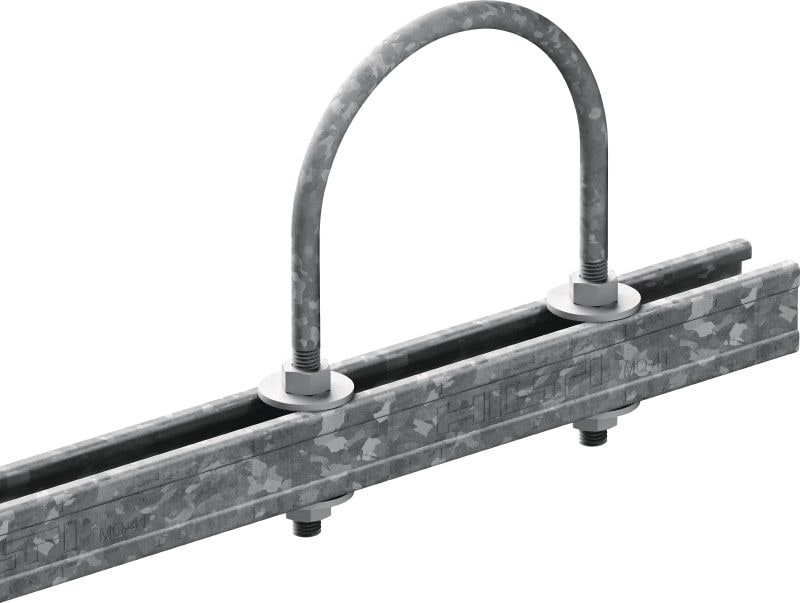

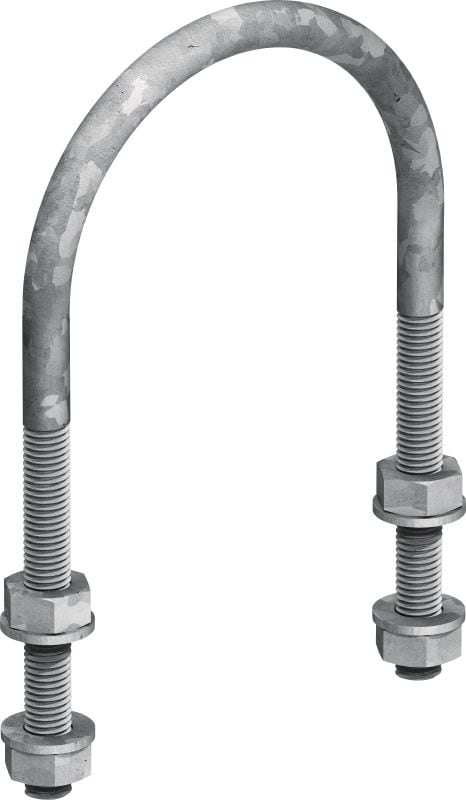

Outdoor coated (OC) U-bolt for universal piping applications

  • Fire resistance ( Yes/No): No
  • Material composition: Q235 or better steel
  • Surface finish: Outdoor Coated - HDG
standard

Technical Data

U-bolt
Fire resistance ( Yes/No)
No
Material composition
Q235 or better steel
Surface finish
Outdoor Coated - HDG
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Product Class
Standard

Documents

Features & Applications

Features

  • Suitable for suspended or standing installation applications
  • Small contact surface between U-bolt and pipe
  • Channel through bolting up to a diameter of 12"
  • Approved for sprinkler applications under FM
  • Approved for sprinkler applications under UL / NFPA

Applications

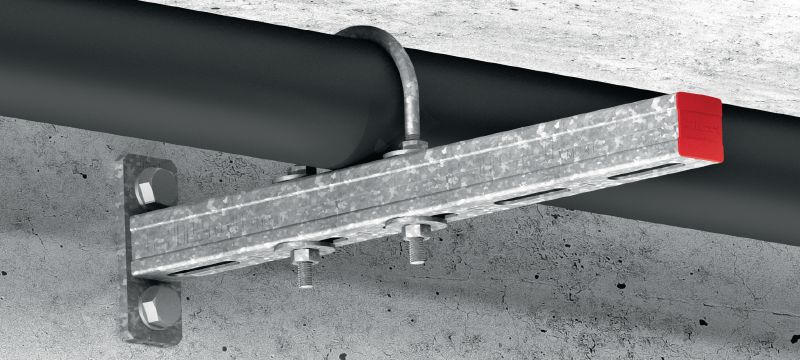

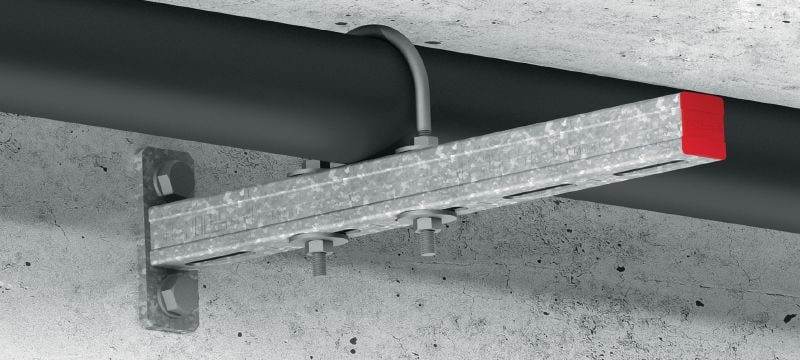

  • Universal pipe fixation up to 24"
  • Single-point fastening for sprinkler applications up to 12"
  • Installation of non-insulated pipes in industrial environments

For approval or certificate information, please see individual items.
