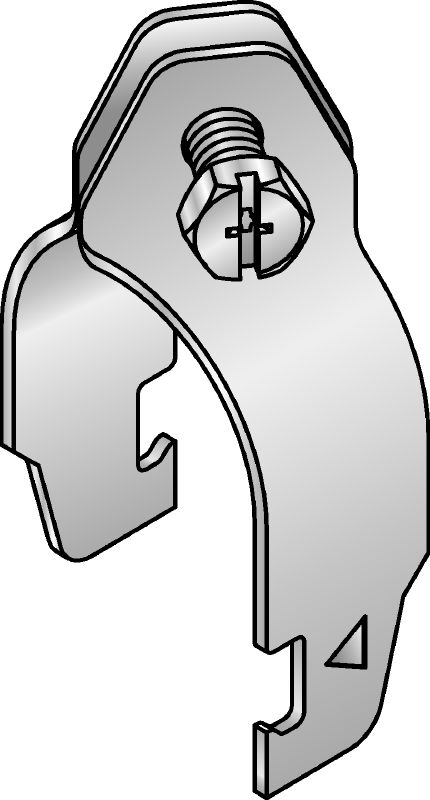

Pre-assembled strut clamp with angled top and innovative design for easy attaching of tubing and pipes to strut channels

  • Material composition: Carbon steel
  • Surface finish: Indoor Coated - Pre-galvanized
  • Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Customers also searched for electrical metallic tubingconduit or EMT.

Choose options

Nominal pipe size (imperial)
  • 1/2 in
  • 3/4 in
  • 1 in
  • 1-1/4 in
  • 1-1/2 in
  • 2 in
Allowable axial load - Fx
  • 30 lbf
  • 40 lbf
  • 50 lbf
Allowable shear load - Fy
  • 50 lbf
  • 75 lbf
  • 100 lbf
Allowable tensile load - Fz
  • 200 lbf
Pack size
  • 50 pc
  • 100 pc
Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From $188.00

Technical Data

IS_HNA_0017.eps
Material composition
Carbon steel
Surface finish
Indoor Coated - Pre-galvanized
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Clamping screw
5/16"-18 UNC
Tightening torque
5 ft-lbs
Cross section width - b
1-1/4 in

Documents

Features & Applications

Features

  • One piece, ready to use out of the box
  • Sized for electrical metallic tubing
  • Screw can be tightened at 45° angle for easy access
  • Innovative design requires no nuts for fast and easy assembly

Applications

  • Mechanical piping systems - used to support and secure HVAC, plumbing, or other mechanical pipes within industrial or commercial buildings, ensuring they are held firmly in place within strut channels
  • Electrical conduit installation - used for securing electrical metallic tubing (EMT) and other types of conduits to strut channels, particularly in environments where precise and stable alignment of electrical infrastructure is critical

For approval or certificate information, please see individual items.
