MP-PS Beam fixpoint connector

Multipe insulated pipes mounted with MP-PS pipe shoe and MP-PS IxG beam clamps on I-beam
MP-PS L4-2 horizontal clamp as fixpoint on I-beam with MP-PS IFG
MP-PS L2-2 rotated clamp as fixpoint on I-beam with MP-PS IFG
MP-PS L1-1 horizontal clamp as fixpoint on I-beam with MP-PS IFG
MP-PS IFG OC beam connector
MP-PS IFG OC beam connector
MP-PS IFG beam connector
MP-PS IFG beam connector beam width
Multipe insulated pipes mounted with MP-PS pipe shoe and MP-PS IxG beam clamps on I-beam
MP-PS L4-2 horizontal clamp as fixpoint on I-beam with MP-PS IFG
MP-PS L2-2 rotated clamp as fixpoint on I-beam with MP-PS IFG
MP-PS L1-1 horizontal clamp as fixpoint on I-beam with MP-PS IFG
MP-PS IFG OC beam connector
MP-PS IFG OC beam connector
MP-PS IFG beam connector
MP-PS IFG beam connector beam width

Beam connectors for attaching MP-PS pipe shoes to steel beams

  • Fire resistance ( Yes/No): No
  • Temperature resistance: -20 - 300 °C
  • Material composition: Beam Clamps (Clamping Claw + Saddle): Cast Iron per DIN EN1562, Baseplate: S280GD per EN10346, Rectangular washer: S235JR – Yield280 per HN 707, Bolts: F Class 8.8 per ISO 898-1, Nuts: Grade 8 per ISO 898-2, Retaining Washer: C60E per EN10132-3, Cylindrical washers: Stainless Steel X5CrNi18-10 per EN10088-3

Technical Data

MP-PS IFG beam connector
MP-PS IFG beam connector beam width
Fire resistance ( Yes/No)
No
Temperature resistance
-20 - 300 °C
Material composition
Beam Clamps (Clamping Claw + Saddle): Cast Iron per DIN EN1562, Baseplate: S280GD per EN10346, Rectangular washer: S235JR – Yield280 per HN 707, Bolts: F Class 8.8 per ISO 898-1, Nuts: Grade 8 per ISO 898-2, Retaining Washer: C60E per EN10132-3, Cylindrical washers: Stainless Steel X5CrNi18-10 per EN10088-3
Material thickness
All sheet metal parts: 5mm
Surface finish
Beam clamps and rectangular washer: DIN EN ISO 1461, baseplate: ZM300, bolts/nuts: ISO 10684, Retaining washers: ISO 10683, Cylindrical washer: Stainless Steel
Hot-dip galvanized
Yes
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Base material type
Modular Support
Wrench size
19 mm
Steel beam thickness
3 - 36 mm
Steel beam thickness min.
3 mm
Steel beam thickness min. (conversion inch fractional)
1/8 in
Steel beam thickness max.
36 mm
Steel beam thickness max. (conversion inch fractional)
1-7/16 in

Documents

Features & Applications

Features

  • Simpler installation – easy-to-adjust and retrofit method for mounting pipe shoes to steel beams
  • Safer jobsites – clamping function to avoid welding and drilling
  • Part of the MP pipe shoe system – an adjustable solution for virtually any relevant steel beam width
  • Slim design – allows better access whenever insulation for hot piping needs to be wrapped around pipe shoe
  • Suitable for stand-up, suspended and horizontal or vertical mounting against I-beam columns

Applications

  • Fastening MP-PS pipe shoes used as fixpoint to steel beams
  • Recommended for use in Indoor or Outdoor with low to moderate pollution (C3)

For approval or certificate information, please see individual items.

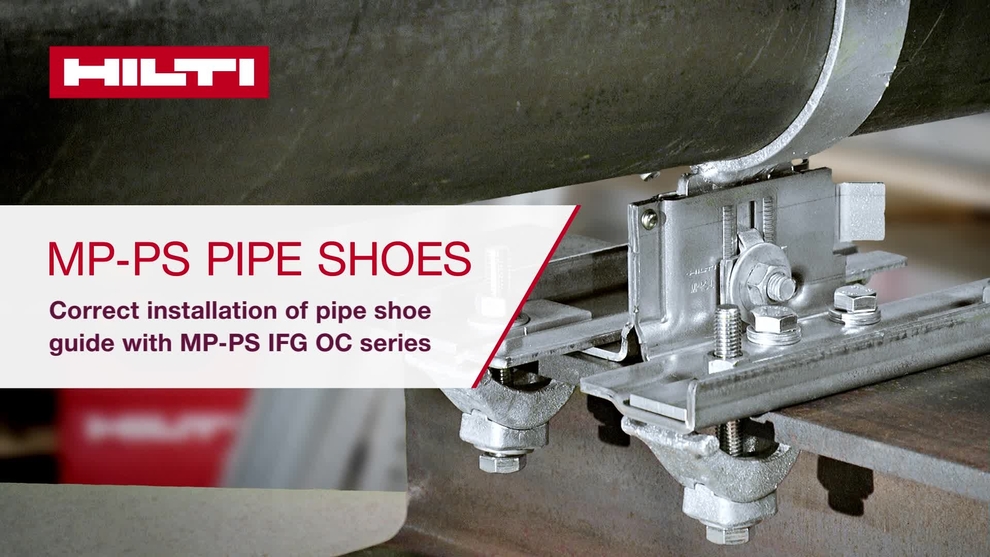

Product Videos
