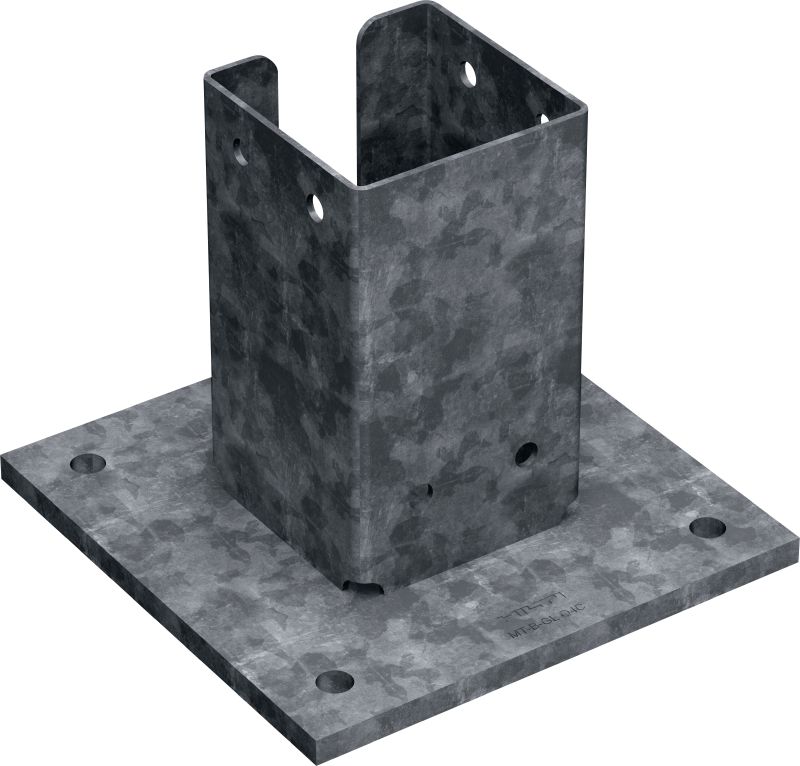

Base connector for anchoring 3D, heavy-duty MT-90 girder structures to concrete in outdoor environments with low to moderate pollution (C3)

  • Material composition: Q355 or better steel
  • Surface finish: Outdoor Coated - HDG
  • Material thickness: 3 mm

Technical Data

Baseplate
Material composition
Q355 or better steel
Surface finish
Outdoor Coated - HDG
Material thickness
3 mm
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)

Documents

Features & Applications

Features

  • Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
  • Easy to install – one-step assembly using Hilti MT-TFB thread-forming bolts
  • Adaptable – unlike welding, modular post bases allow you to modify metal framing for future MEP requirements
  • Extensive software support – PROFIS Modular Support Engineering, the MEP Support Selector, Revit® families, and plug-ins for Staad Pro® and Smart 3D® are all available to streamline design and ordering
  • Hilti's full solution - compatible with Hilti's anchorage solutions for a fully integrated modular support structure

Applications

  • Fastening MT-90 girders to concrete floors, walls or ceilings
  • Anchoring metal framing and MEP support structures with heavy loads to a base material
  • Suitable for outdoor environments with low to moderate pollution (C3)

For approval or certificate information, please see individual items.
