MT-C-Q1 FL OC Pre-assembled corner angle

Channel connector MT-C-Q1 FL OC #2399673

Configurator
Technical Data
Documents
Features & Applications
Related Products

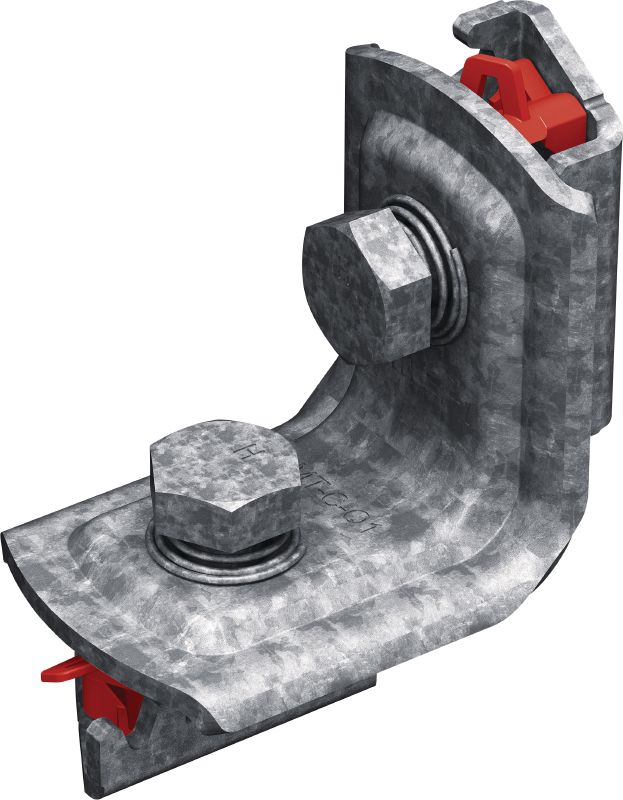

Still life picture of pre-assembled channel connector MT-C-Q1 FL OC with Fast-Lock, outdoor coated

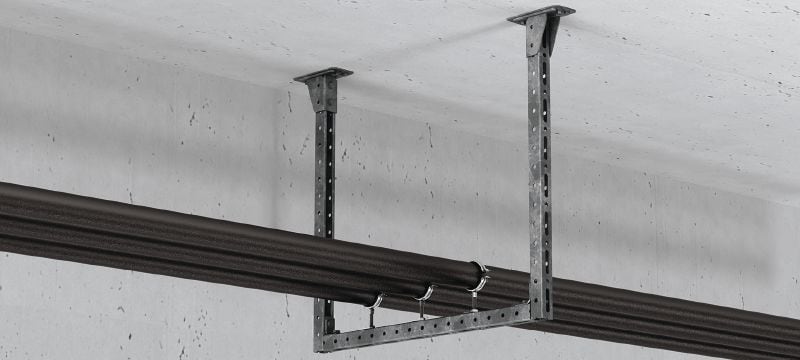

Cropped application image of pre-assembled channel connector with Fast-Lock, outdoor coated
Line drawing of the MT-C-Q1 FL

Angle bracket with pre-assembled Fast-Lock nut and bolt for assembling light-duty strut channel structures, for outdoor use with low pollution

  • Material composition: DD11 MOD
  • Material and coating: Carbon steel - outdoor coated
  • Material thickness: 3 mm

Choose options

Pack size
  • 16 pc
 Product options
Quantity
Box
Total Pieces
16
You cannot see your company prices

Please log in or register to see your company prices.

Discounted net
$408.00
$408.00 / 1 Box

Technical Data

Details
Technical illustrations
Material composition
DD11 MOD
Material and coating
Carbon steel - outdoor coated
Material thickness
3 mm
Surface finish
Outdoor Coated - HDG Plus
Tightening torque
30 ft-lbs
Weight
0.5 lb

Documents

Certificate
Approval document
Brochure
Operating Instruction
pdf EN 1090 Certificate of conformity of the factory production control MT, English [ 348.7 KB ]

Features & Applications

Features

  • Faster installations – pre-assembled with the Hilti MT Fast-Lock, our fastest method for assembling a modular support system with fewer steps
  • Simplified stock management – pre-assembly greatly reduces the total number of MT components, for easier purchasing, handling, and storage
  • Consistent installation quality – pre-assembly removes additional steps, helping reduce assembly errors for safer installations
  • Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
  • Corrosion resistance – hot-dip galvanized to help protect against moisture and chemical corrosion

Applications

  • Right-angle connections between any MT strut channels
  • Assembling 2D metal framing for MEP support structures with light loads
  • Suitable for use in moderately corrosive environments
