MT-B-O2 FL Pre-assembled baseplate

Baseplate MT-B-O2 FL #2399660

Configurator
Technical Data
Documents
Features & Applications
Related Products

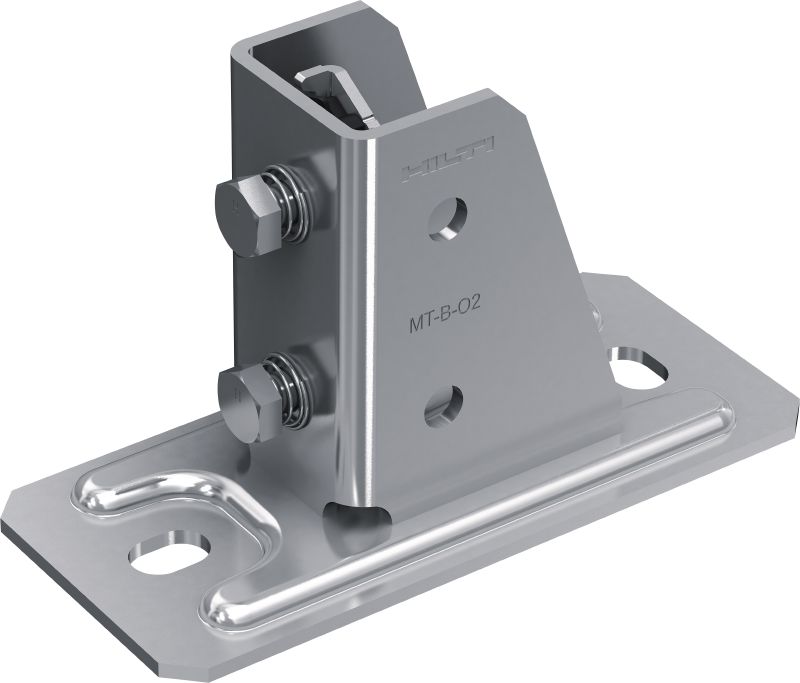

Still life picture of pre-assembled baseplate MT-B-O2 FL with Fast-Lock

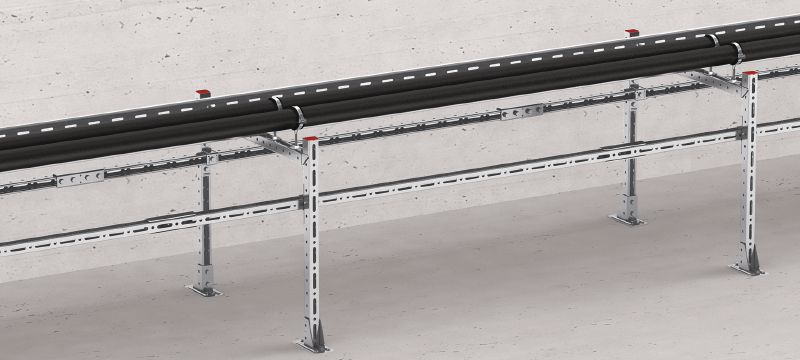

Cropped application image of pre-assembled channel connector with Fast-Lock

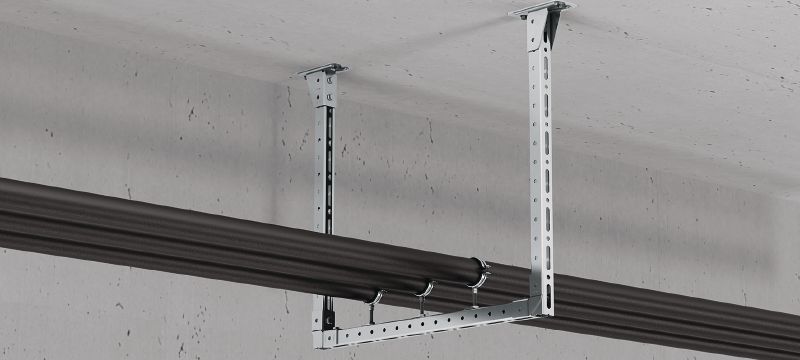

Cropped application image of pre-assembled channel connector with Fast-Lock

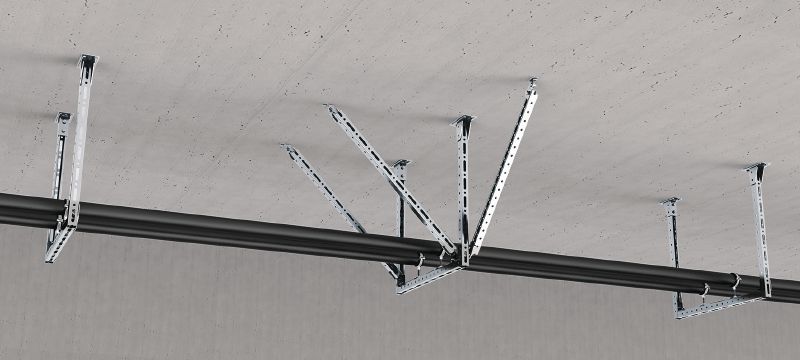

Cropped application image of pre-assembled seismic angle connector with Fast-Lock

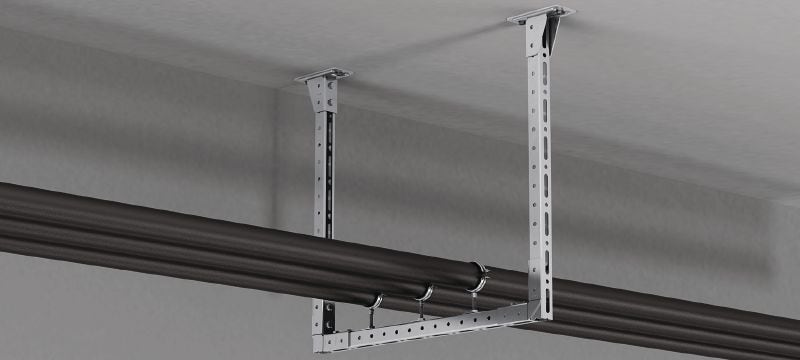

Cropped application image of pre-assembled channel connector with Fast-Lock

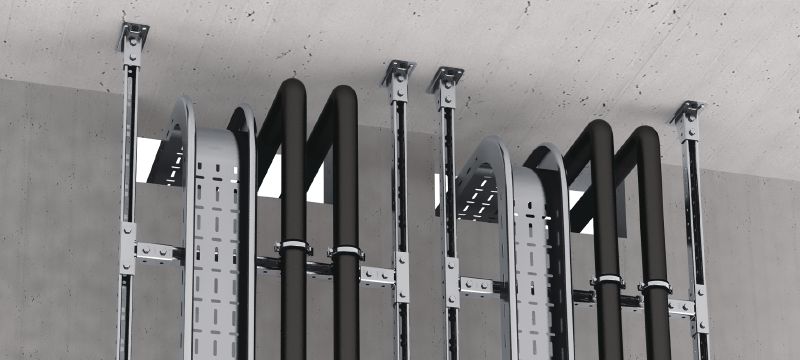

Cropped application image of pre-assembled channel connector with Fast-Lock
Line drawing of the MT-B-O2 FL

Base connector with pre-assembled Fast-Lock nut and bolt for anchoring strut channel structures to concrete or steel

  • Material composition: S235JR, Q235B
  • Material and coating: Carbon steel - indoor coated
  • Material thickness: 4 mm

Choose options

Pack size
  • 16 pc
 Product options
Quantity
Box
Total Pieces
16
You cannot see your company prices

Please log in or register to see your company prices.

Discounted net
$798.00
$798.00 / 1 Box

Technical Data

Details
Technical illustrations
Material composition
S235JR, Q235B
Material and coating
Carbon steel - indoor coated
Material thickness
4 mm
Surface finish
Indoor Coated - Electro galvanized
Thread connection - M
M12, 1/2 in
Tightening torque
22 ft-lbs
Weight
2.6 lb

Documents

Approval document
Certificate
Brochure
Operating Instruction
pdf ETA-23-0826 MT Base Connectors, English [ 2.4 MB ]
pdf ETA-23-0104 MT Frame Trapeze, English [ 3.3 MB ]
pdf ETA-23-0104 MT Frame Trapeze, English [ 3.3 MB ]

Features & Applications

Features

  • Faster installations – pre-assembled with the Hilti MT Fast-Lock, our fastest method for assembling a modular support system with fewer steps
  • Simplified stock management – pre-assembly greatly reduces the total number of MT components, for easier purchasing, handling, and storage
  • Consistent installation quality – pre-assembly removes additional steps, helping reduce assembly errors for safer installations
  • Adjustable – slotted anchor hole to simplify baseplate positioning and fastening
  • Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures

Applications

  • Fastening MT strut channel to concrete floors, walls or ceilings
  • Fastening MT strut channel to structural steel
  • Anchoring metal framing and MEP support structures with medium loads to a base material
  • Suitable for use in dry, indoor environments
